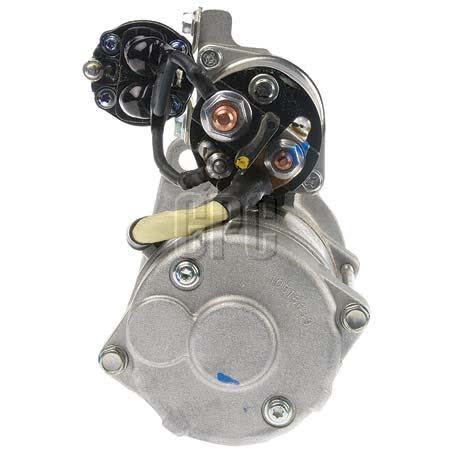

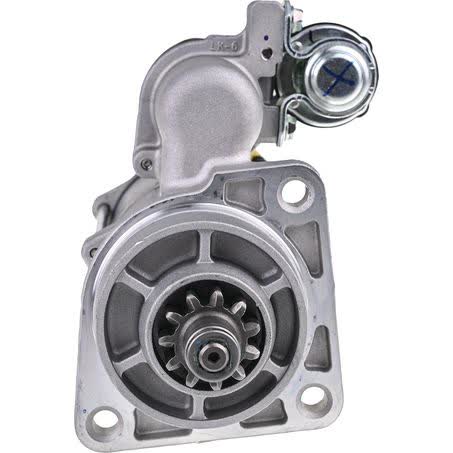

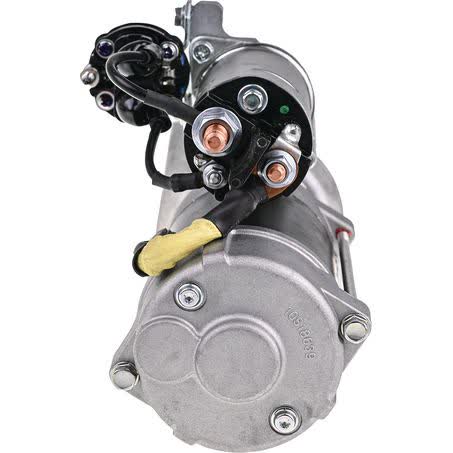

Delco Remy Starter Motor 24V 11T CW 29MT Part No. 8200297

This Delco Remy starter motor is a new 24V unit with 11 teeth, clockwise rotation and a 4.0kW power rating. It is identified by part number 8200297 and is listed as a 29MT starter motor, which gives you a clear reference point when matching the replacement to the original unit.

The physical details matter here: 3-hole starter mount, 127mm mount centres A, 90mm mount centres B and C, 89mm flange diameter, 11mm mount hole diameter and 300mm overall length. The pinion sits 47mm at rest and measures 40mm in diameter, so the mounting and drive dimensions can be checked before ordering.

It is described as suitable for Delco units and listed for wet or dry clutch applications. The starter is a reduction gear design with an oil sealed drive shaft, and it carries a one year warranty for peace of mind on a new replacement part.

Key Features

• 24V starter motor
• 11-tooth pinion
• Clockwise rotation
• 4.0kW power rating
• Reduction gear design
• Oil sealed drive shaft

Specifications

• Part No.: 8200297
• Brand: Delco Remy
• Type: Starter motor
• Unit of measure: Each
• Voltage: 24V
• Rotation: CW
• Number of teeth: 11
• Power rating: 4.0kW

Supported application groups

• Atlas Copco LC
• Mercedes-Benz Axor 2
• Normet Norrunner
• Normet Scamec
• Normet Spraymec
• Normet Utimec

Application and Buying Notes

Before ordering, check the part number 8200297 against the starter removed from the machine or vehicle. The key matching points on this unit are 24V, 11 teeth, clockwise rotation, 4.0kW output and a 3-hole mount with 127mm, 90mm and 90mm mount centres. Those measurements are the practical way to confirm whether the starter is a suitable replacement.

The fitment information supplied links this starter to Atlas Copco LC, Mercedes-Benz Axor 2 and several Normet applications including Norrunner, Scamec, Spraymec and Utimec. Even where a model group appears in the application data, the safest check is still the original starter shape, flange diameter of 89mm, mount hole diameter of 11mm and overall length of 300mm.

This starter is listed as new and suitable for wet or dry clutch applications, which helps when comparing it with an existing Delco unit. The reduction gear design and oil sealed drive shaft are useful features, but they should be viewed as part of the specification rather than a reason to skip verification of rotation, tooth count and mounting dimensions.

If the machine or vehicle has been modified, or if the original starter has been replaced before, compare the old unit carefully rather than relying on appearance alone. The pinion at rest is 47mm and the pinion diameter is 40mm, so drive engagement details should be checked alongside the electrical and mounting specifications before the part is fitted.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 8200297 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 127mm, Mount Centres C 90mm, Number of Teeth 11, Pinion at Rest 47mm, Power Rating 4.0kW, Suits Unit Make Delco, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Wet or Dry, Product Group 2 STARTER MOTORS, Part No. 8200297, Brand DELCO REMY, Description Delco Remy Starter Motor 24V 11Th CW 29MT, Flange Diameter 89mm, Mount Centres B 90mm, Mount Hole Diameter 11, Overall Length 300mm.

Delco Remy Starter Motor 24V 11Th CW 29MT. Part number 8200297 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number 8200297, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include ATLAS COPCO LC, ATLAS COPCO LC 1980, ATLAS COPCO LC 1981, ATLAS COPCO LC 1982, MERCEDES-BENZ AXOR 2, MERCEDES-BENZ AXOR 2 2004. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility using part number 8200297, the 24V electrical rating, 11-tooth clockwise specification and the 3-hole mounting dimensions before purchase or installation.

FAQ

What is the part number for this Delco Remy starter motor?

The part number is 8200297. For this listing, part number 8200297 is the main reference point. Listed voltage is 24. Published fitment references include ATLAS COPCO LC, ATLAS COPCO LC 1980, ATLAS COPCO LC 1981. These details should still be checked against the original unit before ordering.

Is this starter motor 12V or 24V?

It is a 24V starter motor. For this listing, part number 8200297 is the main reference point. Listed voltage is 24. Published fitment references include ATLAS COPCO LC, ATLAS COPCO LC 1980, ATLAS COPCO LC 1981. These details should still be checked against the original unit before ordering.

What rotation does this starter use?

It is clockwise rotation, shown as CW. For this listing, part number 8200297 is the main reference point. Listed voltage is 24. Published fitment references include ATLAS COPCO LC, ATLAS COPCO LC 1980, ATLAS COPCO LC 1981. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The starter has 11 teeth. For this listing, part number 8200297 is the main reference point. Listed voltage is 24. Published fitment references include ATLAS COPCO LC, ATLAS COPCO LC 1980, ATLAS COPCO LC 1981. These details should still be checked against the original unit before ordering.

What type of mount does it use?

It uses a 3-hole starter mount with mount centres A of 127mm and mount centres B and C of 90mm each. For this listing, part number 8200297 is the main reference point. Listed voltage is 24. Published fitment references include ATLAS COPCO LC, ATLAS COPCO LC 1980, ATLAS COPCO LC 1981. These details should still be checked against the original unit before ordering.

Which application groups are listed for this starter?

The listed application groups are Atlas Copco LC, Mercedes-Benz Axor 2, Normet Norrunner, Normet Scamec, Normet Spraymec and Normet Utimec. For this listing, part number 8200297 is the main reference point. Listed voltage is 24. Published fitment references include ATLAS COPCO LC, ATLAS COPCO LC 1980, ATLAS COPCO LC 1981. These details should still be checked against the original unit before ordering.
