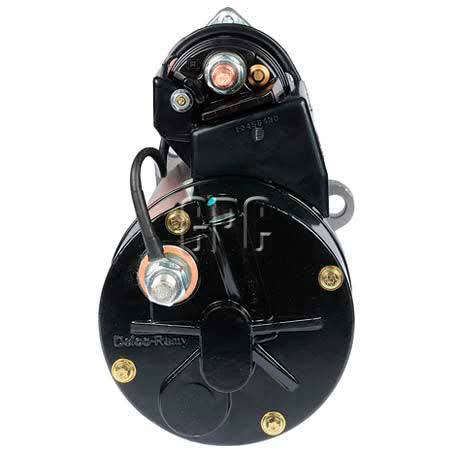

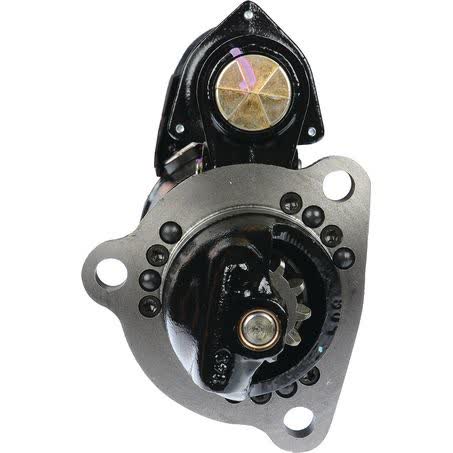

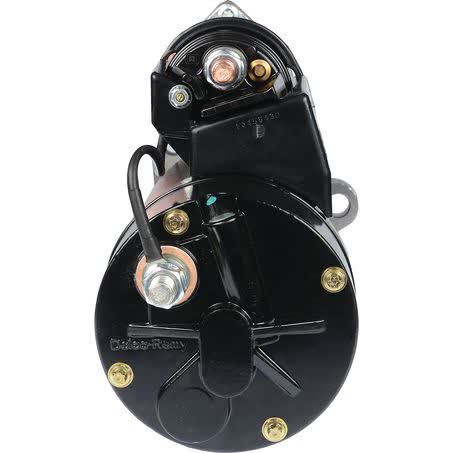

Delco Remy Starter Motor 24V 11 Tooth CW 42MT 10479010

The Delco Remy starter motor listed here is a new 24V unit with 11 teeth, clockwise rotation and 42MT configuration. It is identified by part number 10479010 and is supplied as a starter motor for rotating electrical applications.

Key physical details include 126mm mount centres A, B and C, a 3-hole starter mount type, 92mm flange diameter, 16mm mount hole diameter and an overall length of 515mm. The pinion is 56mm in diameter and sits 46mm from rest, which are important checks when matching the starter to the original unit.

This starter is rated at 7.8kW and is fitted with a jump start protection shield. It is listed as suitable for Delco unit make, with wet or dry clutch compatibility noted in the product data. Weight is 35.6kg, so handling and fit-up should be planned accordingly.

Key Features

• Delco Remy 42MT starter motor
• 24V electrical system
• 11-tooth pinion
• Clockwise rotation
• 7.8kW power rating
• Fitted with jump start protection shield

Specifications

• Voltage: 24V
• Number of teeth: 11
• Rotation: CW
• Power rating: 7.8kW
• Starter mount type: 3 hole
• Mount centres A/B/C: 126mm / 126mm / 126mm
• Flange diameter: 92mm
• Mount hole diameter: 16mm

Known application groups and examples

• Atlas Copco MT5020, including model years listed from 2012 through 2018
• Bandit Beast 2680XP, including 2014
• Caterpillar applications including 12H, 12M, 140M, 14H, 14M, 160M, 16G, 16H, 16M, 245, 245D and 24H
• Samsung SE450LC-2
• Sandvik L7
• Tigercat 480B, including 2015
• Timberking TK722A

Application and Buying Notes

Before ordering, compare the part number 10479010 and the physical dimensions against the removed starter. The 24V rating, 11-tooth pinion, clockwise rotation and 42MT configuration all need to match the vehicle or machine’s original specification for a proper exchange.

The mount pattern is a useful confirmation point: 3-hole starter mount, 126mm mount centres A, B and C, 92mm flange diameter and 16mm mounting holes. The overall length of 515mm and 35.6kg weight also matter where clearance, access or lifting support is limited.

Because fitment can vary within the same machine family, check the application details against the exact model and build information on the unit being replaced. The listed applications include Atlas Copco MT5020, several Caterpillar models, Bandit Beast 2680XP, Samsung SE450LC-2, Sandvik L7, Tigercat 480B and Timberking TK722A.

The jump start protection shield is a useful feature for harsh working conditions, but it does not remove the need to confirm the starter is the correct 24V Delco Remy 42MT unit. If the existing starter is damaged or unreadable, the original mounting dimensions and pinion details are the safest comparison points.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 10479010 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 126mm, Mount Centres C 126mm, Number of Teeth 11, Pinion at Rest 46mm, Power Rating 7.8kW, Suits Unit Make Delco, Item Type Starter Motor.

Additional published details for cross-checking include Starter Mount Type 3 Hole, Weight 35.6kg, Product Group 1 ROTATING ELECTRICAL, Part No. 10479010, Brand DELCO REMY, Description Delco Remy Starter Motor 24V 11Th CW 42MT, Flange Diameter 92mm, Mount Centres B 126mm, Mount Hole Diameter 16, Overall Length 515mm.

Delco Remy Starter Motor 24V 11Th CW 42MT. Part number 10479010 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number 10479010, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include ATLAS COPCO MT5020, ATLAS COPCO MT5020 2012, ATLAS COPCO MT5020 2013, ATLAS COPCO MT5020 2014, BANDIT BEAST 2680XP, BANDIT BEAST 2680XP 2014. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment using part number 10479010, the 24V rating, 11-tooth clockwise 42MT specification and the listed mount dimensions before purchase. Application coverage is broad, so the exact machine model and existing starter details should be checked against the unit being replaced.

FAQ

What is the part number for this starter motor?

The part number listed is 10479010. For this listing, part number 10479010 is the main reference point. Listed voltage is 24. Published fitment references include ATLAS COPCO MT5020, ATLAS COPCO MT5020 2012, ATLAS COPCO MT5020 2013. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

It is a 24V starter motor. For this listing, part number 10479010 is the main reference point. Listed voltage is 24. Published fitment references include ATLAS COPCO MT5020, ATLAS COPCO MT5020 2012, ATLAS COPCO MT5020 2013. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 11 teeth. For this listing, part number 10479010 is the main reference point. Listed voltage is 24. Published fitment references include ATLAS COPCO MT5020, ATLAS COPCO MT5020 2012, ATLAS COPCO MT5020 2013. These details should still be checked against the original unit before ordering.

What direction does it rotate?

It is clockwise rotation, noted as CW. For this listing, part number 10479010 is the main reference point. Listed voltage is 24. Published fitment references include ATLAS COPCO MT5020, ATLAS COPCO MT5020 2012, ATLAS COPCO MT5020 2013. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

It is listed as new. For this listing, part number 10479010 is the main reference point. Listed voltage is 24. Published fitment references include ATLAS COPCO MT5020, ATLAS COPCO MT5020 2012, ATLAS COPCO MT5020 2013. These details should still be checked against the original unit before ordering.

What warranty is provided?

The listed warranty is one year. For this listing, part number 10479010 is the main reference point. Listed voltage is 24. Published fitment references include ATLAS COPCO MT5020, ATLAS COPCO MT5020 2012, ATLAS COPCO MT5020 2013. These details should still be checked against the original unit before ordering.
