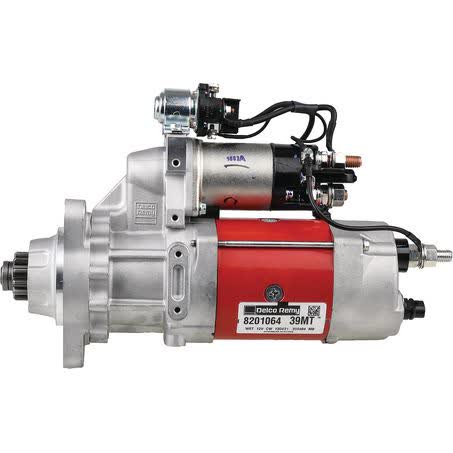

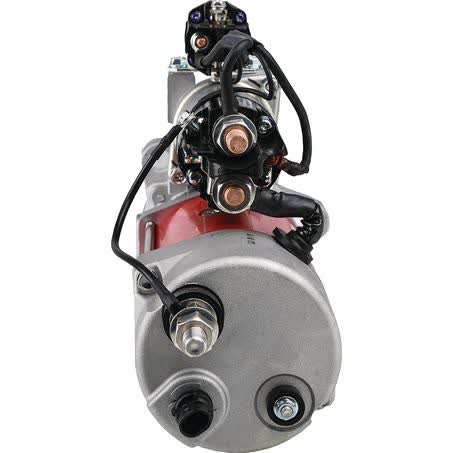

Delco Remy 12V 39MT Starter Motor CW 12 Tooth 7.3KW Part No. 8201064

This Delco Remy starter motor is a 12V, clockwise rotation 39MT unit with 12 teeth, a 7.3kW power rating, and part number 8201064. It is listed as new, supplied each, and carries a one year warranty.

Key physical points to check before ordering are the 3-hole starter mount type, 126mm mount centres across A, B and C, 92mm flange diameter, 16mm mount hole diameter, and 420mm overall length. The pinion diameter is 46mm, with 48mm pinion at rest, and the unit weighs 16.1kg.

The starter is described as suiting Cummins ISL/ISC and as a Delco unit. It also includes Integrated Over Crank Protection (IOCP), which is a built-in circuit breaker intended to protect the starter from thermal damage, plus electrical soft-start.

Key Features

• 12V, clockwise rotation starter motor
• 39MT design with 12 teeth
• 7.3kW power rating
• 46mm pinion diameter
• Integrated Over Crank Protection (IOCP)
• Electrical soft-start

Specifications

• Part number: 8201064
• Brand: Delco Remy
• Voltage: 12V
• Rotation: CW
• Number of teeth: 12
• Power rating: 7.3kW
• Starter mount type: 3 hole
• Mount centres A / B / C: 126mm / 126mm / 126mm

Listed application families

• Cummins ISL/ISC
• AGCO Allis 9435, 9455, R60 Gleaner, R62 Gleaner, R70 Gleaner, R72 Gleaner
• Allis Chalmers 7030, 7040, 7050, 7060, 7080, N5, N6
• Case 4994, 9150, IH 1440D, IH 1460D, IH 2870, IH 4496, IH 4890, IH 4894, IH 6788, IH A7000, IH I-6588
• Caterpillar 3176, 3306, 3306T, and selected agricultural applications including Challenger 65, 65B, 65C, 65D, 70C, 75, 75C and 75D
• Ford Cargo and Ford L-Series
• Freightliner Columbia and FL Series
• International ACCO model years 2001 to 2011

Application and Buying Notes

When matching this starter, the most important checks are the part number 8201064, 12V system voltage, clockwise rotation, 12-tooth pinion, and the 39MT format. The physical measurements also matter: the 3-hole mount pattern, 126mm mount centres, 92mm flange diameter, 16mm mount hole diameter, and 420mm overall length all need to align with the vehicle or machine it is going into.

The note supplied with this unit says 46mm pinion and suits Cummins ISL/ISC, so that combination should be treated as a key application checkpoint rather than a general guess. If your original starter differs in pinion size, rotation, mount style, or overall length, compare the numbers carefully before buying.

This is a new starter motor and it is listed for wet or dry clutch applications. The 7.3kW rating and 16.1kg weight are useful reference points when comparing replacements, especially where the original unit is heavy-duty or physically similar but not identical. If the existing starter has visible labels, matching those details against part number 8201064 is the safest way to order.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 8201064 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 126mm, Mount Centres C 126mm, Number of Teeth 12, Pinion at Rest 48mm, Power Rating 7.3kW, Suits Unit Make Delco, Note 46mm Pinion, suits Cummins ISL/ISC.

Additional published details for cross-checking include Starter Mount Type 3 Hole, Weight 16.1kg, Product Group 1 ROTATING ELECTRICAL, Part No. 8201064, Brand DELCO REMY, Description Delco Remy Starter Motor 12V 12Th CW 39MT, Flange Diameter 92mm, Mount Centres B 126mm, Mount Hole Diameter 16, Overall Length 420mm.

Delco Remy Starter Motor 12V 12Th CW 39MT. Part number 8201064 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number 8201064, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include AGCO ALLIS 9435, AGCO ALLIS 9455, AGCO ALLIS R60 GLEANER, AGCO ALLIS R62 GLEANER, ALLIS CHALMERS 7030, ALLIS CHALMERS 7040. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is One Year. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment by matching part number 8201064, 12V clockwise rotation, 12 teeth, 39MT format, and the listed mounting and pinion measurements against your existing unit and application details before ordering.

FAQ

What type of starter motor is this?

It is a Delco Remy starter motor, listed as 12V, clockwise rotation, 39MT, with 12 teeth and a 7.3kW power rating. For this listing, part number 8201064 is the main reference point. Listed voltage is 12. Published fitment references include AGCO ALLIS 9435, AGCO ALLIS 9455, AGCO ALLIS R60 GLEANER. These details should still be checked against the original unit before ordering.

What is the part number?

The part number is 8201064. For this listing, part number 8201064 is the main reference point. Listed voltage is 12. Published fitment references include AGCO ALLIS 9435, AGCO ALLIS 9455, AGCO ALLIS R60 GLEANER. These details should still be checked against the original unit before ordering.

What mounting details should I check?

Check the 3-hole starter mount type, 126mm mount centres for A, B and C, 92mm flange diameter, 16mm mount hole diameter, and 420mm overall length. For this listing, part number 8201064 is the main reference point. Listed voltage is 12. Published fitment references include AGCO ALLIS 9435, AGCO ALLIS 9455, AGCO ALLIS R60 GLEANER. These details should still be checked against the original unit before ordering.

What pinion details are listed?

The pinion diameter is 46mm and the pinion at rest measurement is 48mm. For this listing, part number 8201064 is the main reference point. Listed voltage is 12. Published fitment references include AGCO ALLIS 9435, AGCO ALLIS 9455, AGCO ALLIS R60 GLEANER. These details should still be checked against the original unit before ordering.

Does it suit Cummins ISL/ISC?

Yes, it is noted as suiting Cummins ISL/ISC. The part number and the full mounting measurements should still be checked against the existing starter before purchase. For this listing, part number 8201064 is the main reference point. Listed voltage is 12. Published fitment references include AGCO ALLIS 9435, AGCO ALLIS 9455, AGCO ALLIS R60 GLEANER. These details should still be checked against the original unit before ordering.

What protection features are included?

It includes Integrated Over Crank Protection (IOCP), described as a built-in circuit breaker that protects the starter from thermal damage, and electrical soft-start. For this listing, part number 8201064 is the main reference point. Listed voltage is 12. Published fitment references include AGCO ALLIS 9435, AGCO ALLIS 9455, AGCO ALLIS R60 GLEANER. These details should still be checked against the original unit before ordering.
