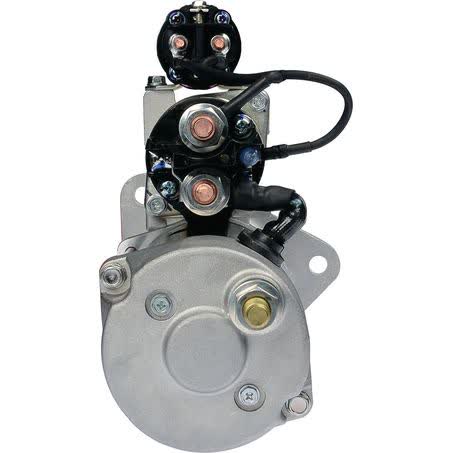

Delco Remy Starter Motor 12V 12 Tooth CW 38MT Part No. 8201066

Delco Remy starter motor, 12V, clockwise rotation, 12 tooth pinion, 38MT unit. Part No. 8201066. This is a new starter motor with a 4.6kW power rating and insulated return, suitable for buyers who need to match the starter style and mounting details closely before ordering.

The physical dimensions are important on this unit: overall length 420mm, flange diameter 92mm, mount centres A/B/C all 126mm, and a 3 hole starter mount type with 13mm mount hole diameter. Pinion at rest is 48mm and pinion diameter is 46mm, so it is worth checking the starter nose and clearance against the existing unit before purchase.

This starter is listed for wet or dry clutch use and suits Delco unit make applications. Weight is 12.6kg, which is useful when comparing like-for-like replacements. One year warranty applies. The confirmed part number is 8201066, which should be matched carefully against the removed starter and vehicle application details.

Key Features

• 12V starter motor
• Clockwise rotation
• 12 tooth pinion
• 38MT unit
• Insulated return
• New unit

Specifications

• Part No.: 8201066
• Brand: Delco Remy
• Voltage: 12
• Power rating: 4.6kW
• Rotation: CW
• Number of teeth: 12
• Starter mount type: 3 hole
• Mount centres A/B/C: 126mm

Fitment guidance

• Confirmed fitment references include AGCO Allis 9435 and 9455, Ford Transit, Freightliner Columbia and FL Series, International ACCO and S-Series, Kenworth T-Series, Mack Metroliner, R.F.W. CA1A, Sterling Trucks H-Line and L-Line, Vermeer T400B, Western Star 4700, and White 160, 170, 185, 195, 2-135, 2-150, 2-155, 2-180, 2600, 4-180, 4-210, and 4-225.
• Sample application years provided include AGCO Allis 9435 1996, Ford Transit 2006 to 2014, Freightliner FL Series 1994 to 2002, International ACCO 1989 to 1996, Kenworth T-Series 1998 to 2008, Mack Metroliner 1999 to 2008, Sterling Trucks L-Line 1999 to 2007, Vermeer T400B 1981, and Western Star 4700 2013.
• Fitment data is broad, so the starter should be checked against the existing part number and physical measurements before ordering.

Application and Buying Notes

The safest way to buy this starter is to match the part number 8201066, then confirm the unit details against the removed starter. The listed specifications that matter most are 12V, clockwise rotation, 12 teeth, 38MT, and the 3 hole mount with 126mm centres, because these are the details that determine whether the starter will physically and electrically suit the application.

Use the physical dimensions as your second check. Overall length is 420mm, flange diameter is 92mm, mount hole diameter is 13mm, and pinion diameter is 46mm. If the mounting face, nose cone, or pinion engagement on the vehicle differs from those measurements, the part should be rechecked before fitting.

The unit is new and has an insulated return, which may matter when comparing it with the original starter or wiring arrangement. Weight is 12.6kg, and it is listed for wet or dry clutch use, so it is still important to verify the application against the exact vehicle model, build year, and existing starter configuration rather than relying on one detail alone.

Because the fitment list covers a wide range of vehicles and machinery, the best practice is to compare the part number, mount style, rotation, and pinion count together. That approach reduces the chance of ordering a starter that looks similar but differs in a key dimension or mounting arrangement.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 8201066 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 126mm, Mount Centres C 126mm, Number of Teeth 12, Pinion at Rest 48mm, Power Rating 4.6kW, Suits Unit Make Delco, Note 38MT.

Additional published details for cross-checking include Starter Mount Type 3 Hole, Weight 12.6kg, Product Group 1 ROTATING ELECTRICAL, Part No. 8201066, Brand DELCO REMY, Description Delco Remy Starter Motor 12V 12Th CW 38MT, Flange Diameter 92mm, Mount Centres B 126mm, Mount Hole Diameter 13, Overall Length 420mm.

Delco Remy Starter Motor 12V 12Th CW 38MT. Part number 8201066 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number 8201066, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Please confirm fitment by matching part number 8201066, the 12V clockwise 38MT specification, and the 3 hole mount with 126mm centres against the existing starter and vehicle application before purchase.

FAQ

What is the part number for this Delco Remy starter motor?

The part number is 8201066.

Is this starter motor 12V?

Yes. The listed voltage is 12V.

What rotation does this starter have?

It is clockwise rotation, shown as CW.

How many teeth does the pinion have?

The pinion has 12 teeth.

What mounting details are listed for this starter?

It has a 3 hole starter mount type, with mount centres A, B and C all listed at 126mm, and a mount hole diameter of 13mm.

Which vehicles are shown in the fitment data?

The fitment data includes applications across AGCO Allis, Ford Transit, Freightliner, International, Kenworth, Mack, R.F.W., Sterling Trucks, Vermeer, Western Star and White models, but the exact application should still be checked against part number 8201066 and the measured starter details.
