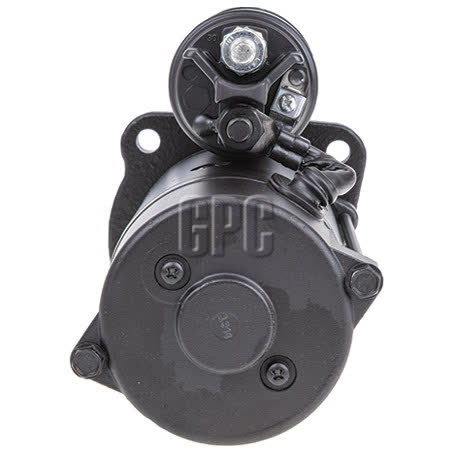

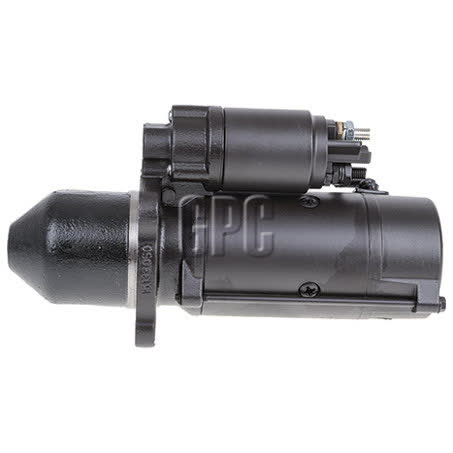

Mahle Starter Motor 24V 10T CW MS169

The MAHLE starter motor, part number MS169, is a new 24V unit with 10 teeth, clockwise rotation and a 4kW power rating. It is supplied as a starter motor, not remanufactured, and uses a 3-hole starter mount with 127mm mount centres A and 90mm mount centres B and C.

Key physical checks for this unit include a 89mm flange diameter, 11mm mount hole diameter, 40mm pinion diameter and a 48mm pinion at rest. The connecting angle is 45.0 degrees, and the transmission type is listed as with reduction gear. Those dimensions matter when matching the starter to the engine or housing it is meant to suit.

This MAHLE starter motor is listed for dry clutch applications and is intended for buyers who need a 24V replacement with the same mounting pattern, tooth count and rotation direction. It carries a one year warranty and is packaged as a single unit.

The stated features include resistance to salt, fog, humidity, water, dust, mud, vibration, extreme temperatures and aggressive liquids, along with compliance to electromagnetic compatibility standards and other international directives and standards. Those points are useful where the starter is working in demanding conditions, but the fit still needs to be confirmed by part number and application details.

Key Features

• 24V starter motor
• 10-tooth pinion
• Clockwise rotation
• 4kW power rating
• New unit
• 3-hole starter mount

Specifications

• Brand: MAHLE
• Part No.: MS169
• Voltage: 24V
• Number of teeth: 10
• Rotation: CW
• Power rating: 4kW
• Starter mount type: 3 hole
• Mount centres A: 127mm

Fitment guidance

• Fitment is not verified to a complete vehicle list in this listing.
• Application data provided includes CASE 488, CASE 688, CASE 888 and JOHN DEERE 6068DL references.
• Some grouped fitment preview data shows CASE 488 model years 1987 through 1992 and CASE 688 model years 1987 through 1990.
• A JOHN DEERE 6068DL application is also shown, including a 1995 reference.
• Confirm the starter mount type, 24V system, 10-tooth pinion, CW rotation and part number MS169 before ordering.

Application and Buying Notes

Before buying, match the part number MS169, the 24V electrical system, 10-tooth pinion and clockwise rotation to the starter being replaced. A 3-hole mount with 127mm mount centres A and 90mm mount centres B and C is a practical check that should be confirmed against the old unit or mounting face.

The listed 89mm flange diameter, 11mm mount hole diameter and 40mm pinion diameter are the sort of measurements that help avoid a mismatch. Where the original starter has a different nose, mounting pattern or pinion size, the replacement may not seat correctly even if the vehicle family appears similar.

The environmental resistance claims are relevant in heavy-duty or exposed service, but they do not replace a proper fit check. If the machine has been modified, if the engine family is uncertain, or if the original label is missing, use the measurements and the part number together rather than relying on appearance alone.

The one year warranty applies to the supplied starter motor, but warranty cover does not confirm application compatibility. Keep the invoice, part number MS169 and any removed component details on hand so the correct item can be matched if you need to compare it later.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MS169 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 127mm, Mount Centres C 90mm, Number of Teeth 10, Pinion Diameter 40mm, Rotation CW, Voltage 24, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Dry, Bore O 1 10.9, Tooth Pitch 15.42, Connecting Angle [Degree] 45.0, Packaging length 38.2, Packaging height 14.50, Product Group 2 STARTER MOTORS, Part No. MS169, Brand MAHLE.

Mahle Starter Motor 24V 10Th CW. Part number MS169 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MS169, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include CASE 488, CASE 488 1987, CASE 488 1988, CASE 488 1989, JOHN DEERE 6068DL, JOHN DEERE 6068DL 1995. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is One Year. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Please confirm compatibility using part number MS169, the 24V specification, 10-tooth CW configuration, 3-hole mounting pattern and the measured dimensions before ordering. Vehicle and engine application references should be checked carefully against the unit being replaced.

FAQ

What is the part number for this starter motor?

The part number listed is MS169.

What voltage does this starter motor use?

It is a 24V starter motor.

How many teeth does the pinion have?

The starter has 10 teeth.

What rotation direction is listed?

The rotation is clockwise, shown as CW.

Is this a new or remanufactured unit?

It is listed as new, not remanufactured.

What fitment references are shown?

The provided references include CASE 488, CASE 688, CASE 888 and JOHN DEERE 6068DL, but fitment should still be confirmed against part number MS169 and the listed dimensions before purchase.
