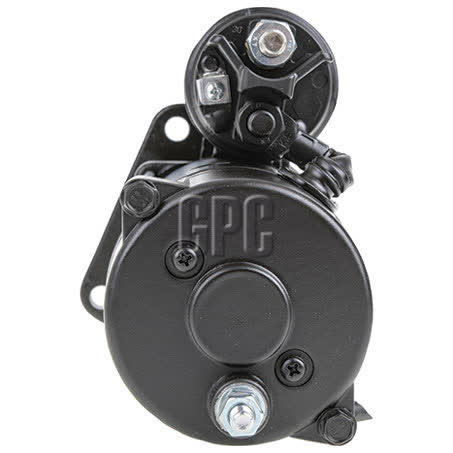

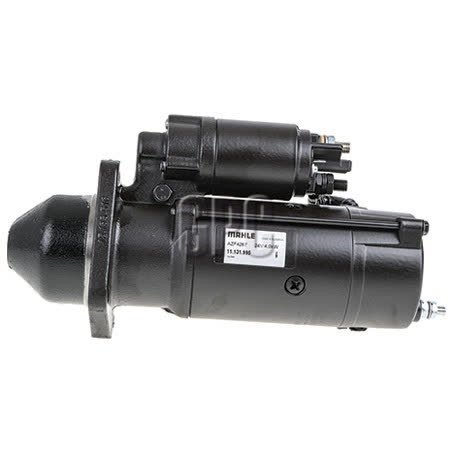

Mahle Starter Motor 24V 11T CW MS5

The MAHLE MS5 starter motor is a new 24V unit with 11 teeth and clockwise rotation, supplied as a 3-hole mount starter with reduction gear transmission. It is listed with a 4kW power rating, 127mm mount centres, and a 41mm pinion diameter, so it is the type of starter that needs to be matched carefully to the vehicle application and existing mounting pattern.

Key physical details for checking fit include a flange diameter of 89mm, mount hole diameter of 11mm, mount centres A of 127mm and mount centres B and C of 90mm. The pinion at rest is 21mm, the for flywheel depth is 24.0, and the unit is specified as dry clutch compatible. These measurements matter when comparing to the original starter on the machine.

This starter is identified as MAHLE part number MS5 and carries a one year warranty. It is described as suitable for a range of JCB applications, including 526-56, 527.58, 531-70 AGRI, 535-125, 535-95, 541-70, 560.80, HYDRADIG 110W, JS130LC, JS200LC, JS200SC, JS20MH, JS210LC, JS220, JS220LC/ NLC, JS235 and TM320S, but the exact match still needs to be confirmed against the machine build and the original part details.

The unit is listed as new, with a clamp rating of 31 and a packaging width of 21.50. As with any starter motor, the safest way to buy is to match the part number, the tooth count, rotation, voltage, and mounting dimensions before ordering, rather than relying on model name alone.

Key Features

• 24V starter motor
• 11 teeth, clockwise rotation
• New MAHLE unit
• 3-hole starter mount
• Reduction gear transmission
• 4kW power rating

Specifications

• Part number: MS5
• Brand: MAHLE
• Type: Starter motor
• Voltage: 24V
• Number of teeth: 11
• Rotation: CW
• Power rating: 4kW
• Starter mount type: 3 hole

Known application guidance

• JCB 526-56
• JCB 527.58
• JCB 531-70 AGRI
• JCB 535-125
• JCB 535-95
• JCB 541-70
• JCB 560.80
• JCB HYDRADIG 110W

Application and Buying Notes

Before ordering, compare the MS5 part number, the 24V specification, the 11-tooth pinion, and the clockwise rotation with the starter already fitted to the machine. Those details need to line up with the original unit, especially where the vehicle uses a reduction gear starter and a 3-hole mounting pattern.

The supplied dimensions are practical checkpoints: 127mm mount centres A, 90mm mount centres B and C, 11mm mount hole diameter, 89mm flange diameter, and 24.0 flywheel depth. If any of those measurements differ from the removed starter, the unit may not suit the application even if the machine model appears similar.

The unit is new and carries a one year warranty. It is also described as compliant with electromagnetic compatibility requirements and other international directives and standards, and as offering resistance to salt, fog, humidity, water, dust, mud, vibration, extreme temperatures and aggressive liquids. Those are useful durability indicators, but they do not replace a proper part-number and dimension check.

If the existing starter is unavailable or damaged, the most reliable approach is to confirm the original mounting style, tooth count, rotation and voltage before purchase. Matching those identifiers is the best way to reduce the risk of ordering the wrong starter for a JCB application or another machine using the same MAHLE specification.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MS5 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 127mm, Mount Centres C 90mm, Number of Teeth 11, Pinion Diameter 41mm, Rotation CW, Voltage 24, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Dry, Clamp 31, Number of mounting bores 3, For flywheel depth 24.0, Mounting points diameter 127.0, Packaging width 21.50, Net Weight 10224, Product Group 1 ROTATING ELECTRICAL, Part No. MS5, Brand MAHLE.

Mahle Starter Motor 24V 11Th CW. Part number MS5 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MS5, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include JCB 526-56, JCB 526-56 2011, JCB 527.58, JCB 527.58 2015. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment using MAHLE part number MS5, 24V voltage, 11 teeth, clockwise rotation, 3-hole mount, and the listed mounting dimensions before ordering. Always compare the removed starter and the machine application details, as model names alone are not enough to verify compatibility.

FAQ

What is the part number for this starter motor?

The part number listed is MS5.

Is this a 12V or 24V starter?

It is a 24V starter motor.

How many teeth does the pinion have?

The pinion has 11 teeth.

What rotation does this starter use?

It is clockwise rotation, shown as CW.

What mounting style does it have?

It is a 3-hole starter mount with 3 mounting bores.

Which machines are listed as compatible?

Listed applications include JCB 526-56, 527.58, 531-70 AGRI, 535-125, 535-95, 541-70, 560.80, HYDRADIG 110W, JS130LC, JS200LC, JS200SC, JS20MH, JS210LC, JS220, JS220LC / NLC, JS235 and TM320S.
