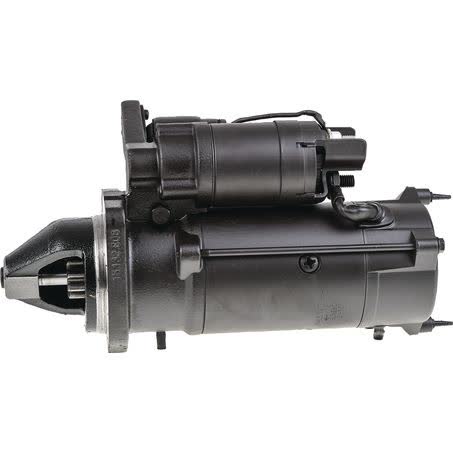

Mahle Starter Motor 12V 9T CW MS69 4.0KW 3-HOLE

The Mahle MS69 starter motor is a new 12V unit with clockwise rotation, 9 teeth, and a 4.0kW power rating. It is listed as an original equipment part and is supplied as a starter motor each, which makes the key match points the part number, voltage, rotation, tooth count, and mounting pattern.

Mounting details are important on this unit. It has a 3-hole starter mount type, 3 mounting bores, 127mm mount centres A, 90mm mount centres B, 90mm mount centres C, and 11mm mount hole diameter. The flange diameter is 89mm, and the overall length is 320mm.

Other identifying dimensions include a 34mm pinion diameter, 28mm pinion at rest, and 31.0 flywheel depth. The transmission type is with reduction gear, which is part of the stated specification for this starter motor. If you are matching an existing starter, these details are as important as the voltage and rotation.

Key Features

• Mahle original equipment part
• New starter motor
• 12V clockwise rotation
• 9-tooth pinion
• 4.0kW power rating
• 3-hole starter mount

Specifications

• Brand: Mahle
• Product type: Starter Motor
• Voltage: 12
• Rotation: CW
• Number of teeth: 9
• Power rating: 4.0kW
• Starter mount type: 3 Hole
• Number of mounting bores: 3

Known application groups

• BOMAG BW211
• BOMAG BW213
• BOMAG BW214
• BOMAG BW216
• BOMAG BW219
• BOMAG BW219D/PD-4
• BOMAG BW226
• BOMAG BW226DH/PDH-4

Application and Buying Notes

This starter motor should be matched by part number MS69, OEM number 11131864, and the physical details already listed. The combination of 12V, clockwise rotation, 9 teeth, and 3-hole mounting is what makes it suitable for only the correct applications. If any of those points differ from the starter currently fitted, do not assume it will be correct.

The fitment information points to specific machinery groups including BOMAG, DEUTZ-FAHR, FENDT, LAMBORGHINI, and SAME. In practical terms, that means the model line alone is not enough; you should check the existing starter’s tag, the mounting pattern, the flange diameter of 89mm, and the 320mm overall length before ordering.

The flywheel depth of 31.0 and the 34mm pinion diameter are important when comparing against a removed unit. A starter can look similar but still differ in nose depth, bolt spacing, or pinion engagement. Those details matter just as much as the listed voltage and tooth count.

This unit is specified as new and carries a one-year warranty. That is useful buying context, but it does not replace verification of the application. If you are cross-checking from an old part, compare the existing MS69 or OEM 11131864 reference wherever possible, then confirm the mount centres and rotation before purchase.

If the application is being matched to a machine listed under the supported groups, it is still wise to confirm the exact model and build details. The fitment range includes multiple model families, and the safest approach is to use the part number together with the dimensional checks rather than relying on the model name alone.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MS69 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 127mm, Mount Centres C 90mm, Number of Teeth 9, Pinion at Rest 28mm, Power Rating 4.0kW, Suits Unit Make Mahle, Item Type Starter Motor.

Additional published details for cross-checking include Starter Mount Type 3 Hole, Transmission Type with reduction gear, Number of mounting bores 3, For flywheel depth 31.0, Packaging length 38.2, Packaging height 14.50, Product Group 2 STARTER MOTORS, Part No. MS69, Brand MAHLE.

Mahle Starter Motor 12V 9Th CW. Part number MS69 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MS69, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include BOMAG BW211, BOMAG BW211 2004, BOMAG BW211 2005, BOMAG BW211 2006, DEUTZ-FAHR SERIES 5, DEUTZ-FAHR SERIES 5 2013. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is One Year. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment by matching the part number MS69, OEM number 11131864, 12V clockwise rotation, 9-tooth pinion, 3-hole mounting pattern, and the listed dimensions before ordering.

FAQ

What is the part number for this starter motor?

The listed part number is MS69. The OEM number shown is 11131864.

Is this starter motor 12V or 24V?

It is a 12V starter motor.

What rotation does this starter motor have?

The rotation is clockwise (CW).

How many teeth does the pinion have?

The pinion has 9 teeth.

What mounting setup does it use?

It uses a 3-hole starter mount with 3 mounting bores. The mount centres are 127mm for A, 90mm for B, and 90mm for C.

Which machine groups are listed as applications?

The listed application groups include BOMAG BW211, BW213, BW214, BW216, BW219, BW219D/PD-4, BW226 and BW226DH/PDH-4, plus DEUTZ-FAHR SERIES 5, 5 C, 6 and 7, FENDT VARIO, LAMBORGHINI MACH, NITRO and SPARK, and SAME AUDAX ST, DRAGO, EXPLORER and FORTIS.
