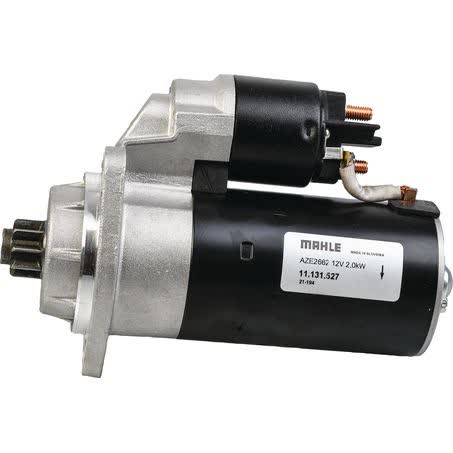

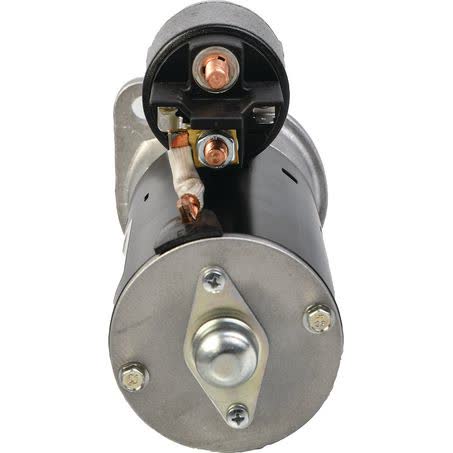

Mahle Starter Motor 12V 9 Tooth CW MS140

The Mahle MS140 is a new 12V starter motor with clockwise rotation, a 9 tooth pinion, and 2.0kW power rating. It is listed as a gear reduction starter motor and is described as an original equipment part, which makes it a sensible choice when you are replacing a compatible unit and want to stay close to the required specification.

Key physical details include an overall length of 233mm, a 82.5mm flange diameter, a 12.5mm mount hole diameter, and a 2 hole starter mount type with 102mm mount centre to centre. The pinion diameter is 29mm, the pinion at rest measurement is 40mm, and the connecting angle is 38.0 degrees.

This starter motor is identified by part number MS140 and OEM number 11.131.527. It is a 12V unit with 9 teeth, clockwise rotation, and reduction gear transmission type, so matching those core details is important before purchase. Where fitment matters, the safest approach is to confirm the part number and the application details against your existing starter or machine records.

Key Features

• New starter motor
• Original equipment part
• 12V unit
• Clockwise rotation
• 9 tooth pinion
• 2.0kW power rating

Specifications

• Brand: Mahle
• Part number: MS140
• OEM number: 11.131.527
• Type: Starter motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 9
• Power rating: 2.0kW

Checked application references

• AMMANN ARW65
• ATLAS COPCO LP6505
• BOMAG BW65H
• DYNAPAC DTR75
• HATZ 1D42
• HUSQVARNA CONSTRUCTION LP6505
• MULTIONE 2 SERIES

Application and Buying Notes

Before ordering, compare the part number MS140 and OEM number 11.131.527 with the starter currently fitted to the machine. The key matching points on this unit are 12V voltage, clockwise rotation, 9 teeth, 2.0kW output, and a 2 hole mount with 102mm centre-to-centre spacing.

The physical dimensions matter just as much as the electrical details. Check the 233mm overall length, 82.5mm flange diameter, 12.5mm mount hole diameter, 29mm pinion diameter, and 40mm pinion-at-rest measurement against the original starter so the replacement can be installed without avoidable surprises.

Where the machine model is known, use it as a checkpoint rather than the only reference. Applications listed for this part include AMMANN ARW65, ATLAS COPCO LP6505, BOMAG BW65H, DYNAPAC DTR75, HATZ 1D42, HUSQVARNA CONSTRUCTION LP6505, and MULTIONE 2 SERIES, but the safest purchase decision still comes back to the exact starter specification and part number on your existing unit.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MS140 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Hole Diameter 12.5, Overall Length 233mm, Pinion Diameter 29mm, Rotation CW, Voltage 12, Item Type Starter Motor, New / Reman. New.

Additional published details for cross-checking include OEM Number 11.131.527, Bore O 1 12.5, Tooth Pitch 12.35, Connecting Angle [Degree] 38.0, Packaging length 25.0, Packaging height 13.60, Product Group 2 STARTER MOTORS, Part No. MS140, Brand MAHLE.

Mahle Starter Motor 12V 9Th CW. Part number MS140 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MS140, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include AMMANN ARW65, AMMANN ARW65 2015, ATLAS COPCO LP6505, ATLAS COPCO LP6505 1997, BOMAG BW65H, BOMAG BW65H 2012. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is One Year. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment by matching part number MS140 and OEM number 11.131.527, then compare voltage, rotation, tooth count, mounting pattern, and dimensions with the unit you are replacing.

FAQ

What type of starter motor is this?

It is a Mahle starter motor, new, 12V, clockwise rotation, with 9 teeth and a 2.0kW power rating. It is also listed as a gear reduction starter motor and an original equipment part. For this listing, part number MS140 is the main reference point. Listed voltage is 12. Published fitment references include AMMANN ARW65, AMMANN ARW65 2015, ATLAS COPCO LP6505. These details should still be checked against the original unit before ordering.

What is the part number?

The part number is MS140. The OEM number listed for this unit is 11.131.527. For this listing, part number MS140 is the main reference point. Listed voltage is 12. Published fitment references include AMMANN ARW65, AMMANN ARW65 2015, ATLAS COPCO LP6505. These details should still be checked against the original unit before ordering.

What are the main mounting dimensions?

The starter has a 2 hole mount type, 102mm mount centre to centre, 12.5mm mount hole diameter, and an 82.5mm flange diameter. The overall length is 233mm. For this listing, part number MS140 is the main reference point. Listed voltage is 12. Published fitment references include AMMANN ARW65, AMMANN ARW65 2015, ATLAS COPCO LP6505. These details should still be checked against the original unit before ordering.

Is this a 12V or 24V starter?

This is a 12V starter motor. For this listing, part number MS140 is the main reference point. Listed voltage is 12. Published fitment references include AMMANN ARW65, AMMANN ARW65 2015, ATLAS COPCO LP6505. These details should still be checked against the original unit before ordering.

What rotation does it use?

It is clockwise rotation, shown as CW. For this listing, part number MS140 is the main reference point. Listed voltage is 12. Published fitment references include AMMANN ARW65, AMMANN ARW65 2015, ATLAS COPCO LP6505. These details should still be checked against the original unit before ordering.

Which machines are listed as applications?

Listed application references include AMMANN ARW65, ATLAS COPCO LP6505, BOMAG BW65H, DYNAPAC DTR75, HATZ 1D42, HUSQVARNA CONSTRUCTION LP6505, and MULTIONE 2 SERIES. Always confirm the part number and dimensions before ordering. For this listing, part number MS140 is the main reference point. Listed voltage is 12. Published fitment references include AMMANN ARW65, AMMANN ARW65 2015, ATLAS COPCO LP6505. These details should still be checked against the original unit before ordering.
