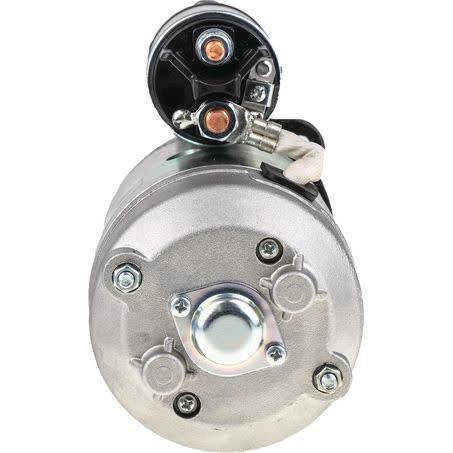

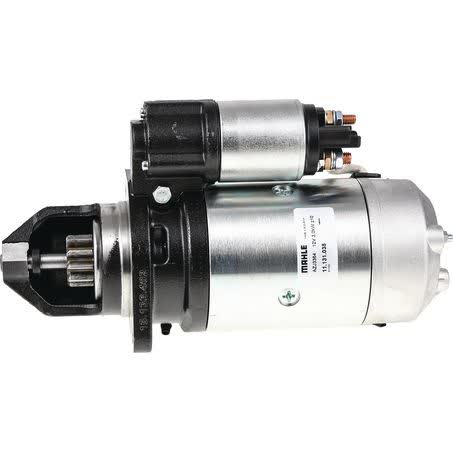

Mahle Starter Motor 12V 10 Tooth CW MS152

The Mahle MS152 starter motor is a new 12V unit with clockwise rotation, 10 teeth, and a 3kW power rating. It is listed as an original equipment part and is supplied as a starter motor each, not a kit or exchange unit.

Key physical checks for this part include a 3-hole starter mount, 127mm mount centres A, 90mm mount centres B, 90mm mount centres C, a 89mm flange diameter, and 11mm mount hole diameter. The overall length is 340mm, with a 39mm pinion diameter and 48mm pinion at rest.

This starter is identified by part number MS152 and OEM number 11131038. The flywheel depth is listed at 51.0, which is an important measurement to confirm against the vehicle and the existing starter arrangement before ordering.

Fitment references supplied for this unit include a number of CASE, CASE IH, International Harvester, and Manitou applications. Because starter fitment can vary with engine and installation details, the part number, mounting pattern, and flywheel depth should all be checked together rather than relying on model name alone.

Key Features

• 12V starter motor
• 10 tooth pinion
• Clockwise rotation (CW)
• 3kW power rating
• 3-hole starter mount
• Original Equipment part

Specifications

• Brand: Mahle
• Part No.: MS152
• OEM Number: 11131038
• Type: Starter Motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 10
• Power rating: 3kW

Known fitment references

• CASE 2400GD
• CASE 321
• CASE 431
• CASE 633A
• CASE 640A
• CASE 833A
• CASE 844A
• CASE 844S

Application and Buying Notes

Before ordering, compare the part number MS152 and OEM number 11131038 with the old starter or the parts record on the machine. The mounting pattern is a 3-hole arrangement with 127mm mount centres A, 90mm mount centres B, and 90mm mount centres C, so the bolt spacing needs to match the existing application.

The electrical side is straightforward: this is a 12V starter motor with clockwise rotation and a 10-tooth pinion. Those details matter because the wrong voltage, rotation, or tooth count can prevent proper engagement with the flywheel even when the mounting points look close.

Physical dimensions also need to be checked carefully. The 89mm flange diameter, 340mm overall length, 39mm pinion diameter, 48mm pinion at rest, and 51.0 flywheel depth all help confirm whether the starter will clear the housing and align correctly. These measurements are especially important where different engine or transmission combinations were used within the same model range.

The unit is marked as a new starter motor and carries a one-year warranty. That may be useful when comparing it with rebuild options, but the essential buying check is still fitment: confirm the application details, mounting bores, and starter geometry against the vehicle before committing to purchase.

Known application references include CASE, CASE IH, International Harvester, and Manitou listings. Even with those references, final confirmation should always be made using the part number, the mounting pattern, and the flywheel depth, since these are the most reliable checks for starter motor compatibility.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MS152 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 127mm, Mount Centres C 90mm, Number of Teeth 10, Pinion at Rest 48mm, Power Rating 3kW, Suits Unit Make Mahle, Item Type Starter Motor.

Additional published details for cross-checking include Starter Mount Type 3 Hole, OEM Number 11131038, Number of mounting bores 3, For flywheel depth 51.0, Packaging length 38.2, Packaging height 14.50, Product Group 2 STARTER MOTORS, Part No. MS152, Brand MAHLE.

Mahle Starter Motor 12V 10Th CW. Part number MS152 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MS152, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include CASE 2400GD, CASE 2400GD 1973, CASE 321, CASE 321 1986, INTERNATIONAL HARVESTER 2400 GD, INTERNATIONAL HARVESTER 2400 GD 1985. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is One Year. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Please confirm compatibility by matching part number MS152 and OEM number 11131038, then verify the 12V CW 10-tooth specification, 3-hole mounting pattern, and 51.0 flywheel depth against the vehicle before purchase.

FAQ

What type of starter motor is this?

It is a Mahle starter motor, new, 12V, clockwise rotation, with a 10-tooth pinion and 3kW power rating.

What part numbers are listed for identification?

The listed part number is MS152 and the OEM number is 11131038.

What mounting details should I check?

Check the 3-hole starter mount, 127mm mount centres A, 90mm mount centres B, 90mm mount centres C, and 11mm mount hole diameter.

What are the key size measurements?

Important measurements listed are 89mm flange diameter, 340mm overall length, 39mm pinion diameter, 48mm pinion at rest, and 51.0 flywheel depth.

Does the listing include known fitment references?

Yes. References supplied include CASE, CASE IH, International Harvester, and Manitou applications, including models such as CASE 2400GD, CASE 321, INTERNATIONAL HARVESTER 2500GD, and MANITOU 4RM26N.

Is there a warranty listed?

Yes. The warranty listed is one year.
