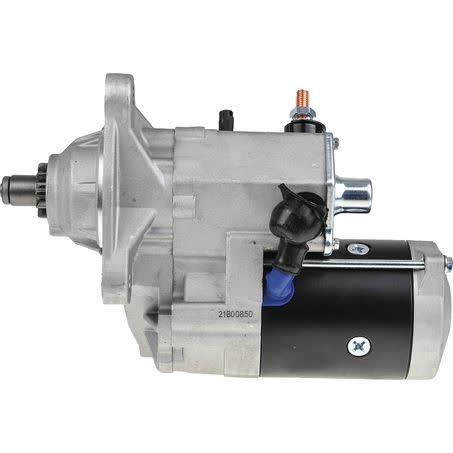

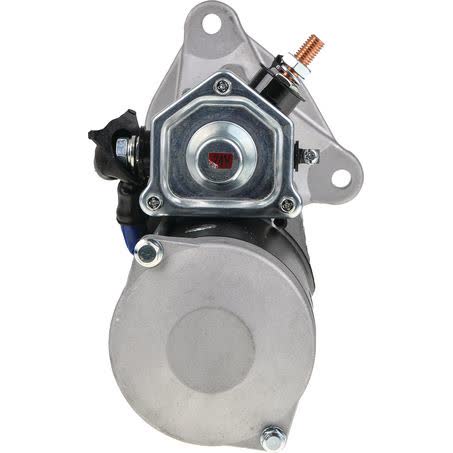

Mahle Starter Motor 24V 10 Tooth CW MS198

The Mahle starter motor listed here is a new 24V unit with clockwise rotation, 10 teeth on the pinion, and a 5.5kW power rating. It is identified by Part No. MS198 and OEM Number 11139181, which gives you two useful reference points when checking against the vehicle application.

Mounting details matter on starter motors, and this unit uses a 3-hole starter mount with 3 mounting bores, 126mm mount centres A, 126mm mount centres C, and a 92mm flange diameter. The pinion sits 48mm at rest, with a 40mm pinion diameter and 12.5mm mount hole diameter.

It is described as an Original Equipment part and is supplied new, with a one year warranty. The listed transmission type is with reduction gear, and the specified flywheel depth is 51, so the physical and application details should be checked carefully before ordering.

Key Features

• New Mahle starter motor
• 24V electrical system
• 10 tooth pinion
• Clockwise rotation
• 5.5kW power rating
• 3-hole starter mount

Specifications

• Brand: Mahle
• Part No.: MS198
• OEM Number: 11139181
• Voltage: 24
• Rotation: CW
• Number of Teeth: 10
• Power Rating: 5.5kW
• Starter Mount Type: 3 Hole

Confirmed fitment guidance

• IVECO STRALIS
• IVECO TRAKKER

Application and Buying Notes

Before ordering, compare the part number MS198 and OEM Number 11139181 with the starter motor already fitted to the vehicle. The key matching points on this unit are 24V, clockwise rotation, 10 teeth, 5.5kW output, and a 3-hole mount with 126mm centres.

The physical dimensions are just as important as the electrical details. This starter motor measures 320mm overall length, has a 92mm flange diameter, a 40mm pinion diameter, and a 48mm pinion-at-rest measurement. If any of those figures differ from the existing unit, the fit may not be correct.

The fitment information provided includes IVECO STRALIS and IVECO TRAKKER applications, with STRALIS references spanning multiple model years. Even where a vehicle name appears in the fitment data, the safest check is still the starter itself, because starter motors can vary by mounting style, flywheel depth, and rotation.

This unit is listed as a new Mahle starter motor and includes a one year warranty. For a reliable match, confirm the flywheel depth of 51, the 12.5mm mount hole diameter, and the reduction gear configuration before committing to purchase.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MS198 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 126mm, Mount Centres C 126mm, Number of Teeth 10, Pinion at Rest 48mm, Power Rating 5.5kW, Suits Unit Make Mahle, Item Type Starter Motor.

Additional published details for cross-checking include Starter Mount Type 3 Hole, Transmission Type with reduction gear, Number of mounting bores 3, For flywheel depth 51, Packaging length 44.2, Packaging height 26.60, Product Group 2 STARTER MOTORS, Part No. MS198, Brand MAHLE.

Mahle Starter Motor 24V 10Th CW. Part number MS198 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MS198, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include IVECO STRALIS, IVECO STRALIS 2002, IVECO STRALIS 2003, IVECO STRALIS 2004. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility by matching the part number MS198, OEM Number 11139181, and the listed 24V 10 tooth clockwise specification against the existing starter motor and vehicle application details before ordering.

FAQ

What type of starter motor is this?

It is a Mahle starter motor, new condition, with 24V operation, clockwise rotation, 10 teeth, and a 5.5kW power rating. For this listing, part number MS198 is the main reference point. Listed voltage is 24. Published fitment references include IVECO STRALIS, IVECO STRALIS 2002, IVECO STRALIS 2003. These details should still be checked against the original unit before ordering.

What part number should I use to check compatibility?

The listed part number is MS198. The OEM Number supplied is 11139181. For this listing, part number MS198 is the main reference point. Listed voltage is 24. Published fitment references include IVECO STRALIS, IVECO STRALIS 2002, IVECO STRALIS 2003. These details should still be checked against the original unit before ordering.

What mounting setup does this starter use?

It uses a 3-hole starter mount with 3 mounting bores, 126mm mount centres A, 126mm mount centres B, and 126mm mount centres C. For this listing, part number MS198 is the main reference point. Listed voltage is 24. Published fitment references include IVECO STRALIS, IVECO STRALIS 2002, IVECO STRALIS 2003. These details should still be checked against the original unit before ordering.

Which vehicles are shown in the fitment information?

The fitment information provided includes IVECO STRALIS and IVECO TRAKKER, with STRALIS references shown across multiple model years. For this listing, part number MS198 is the main reference point. Listed voltage is 24. Published fitment references include IVECO STRALIS, IVECO STRALIS 2002, IVECO STRALIS 2003. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

It is listed as new. For this listing, part number MS198 is the main reference point. Listed voltage is 24. Published fitment references include IVECO STRALIS, IVECO STRALIS 2002, IVECO STRALIS 2003. These details should still be checked against the original unit before ordering.

What warranty is included?

The listed warranty is one year. For this listing, part number MS198 is the main reference point. Listed voltage is 24. Published fitment references include IVECO STRALIS, IVECO STRALIS 2002, IVECO STRALIS 2003. These details should still be checked against the original unit before ordering.
