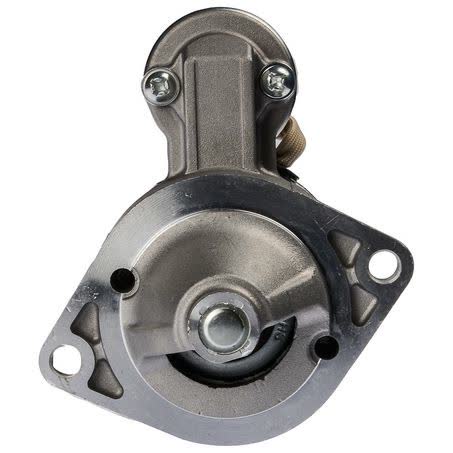

OEX Starter Motor 12V 1.6KW 8 Tooth CW Mitsubishi Style MXS811

The OEX starter motor MXS811 is a new 12V unit with a 1.6kW power rating, 8 teeth and clockwise rotation. It is listed as a Mitsubishi style starter motor and suits unit make Mitsubishi, which makes the part number and physical specifications the key checks before ordering.

This starter motor is supplied as a 2 hole mount type with 105mm mount centres, a 65mm flange diameter and 10mm mount hole diameter. Overall length is 205mm, pinion diameter is 28mm and pinion at rest is 4mm, so the physical dimensions can be matched against the original starter before fitment.

OEX identifies this as a quality replacement starter motor for the Australian automotive aftermarket. It is a new unit, weighs 3.56kg and is covered by a 3 year passenger / 1 year commercial warranty, with the warranty structure noted by OEX for new units and passenger vehicle use.

Key Features

• 12V starter motor
• 1.6kW power rating
• 8 tooth pinion
• Clockwise rotation
• 2 hole starter mount
• New unit

Specifications

• Brand: OEX
• Product type: Starter motor
• Part no.: MXS811
• Voltage: 12V
• Power rating: 1.6kW
• Rotation: CW
• Number of teeth: 8
• Starter mount type: 2 hole

Fitment and application notes

• Suits unit make: Mitsubishi
• Listed fitment data includes HOLDEN, SUZUKI, TOYOTA and VAUXHALL applications
• Fitment examples shown include Holden Cruze, Suzuki Baleno, Suzuki Carry, Toyota Echo, Toyota Porte and Vauxhall Viva
• Application years in the supplied data vary by model, so exact vehicle matching must be checked against the part number and starter dimensions

Application and Buying Notes

For a starter motor, the most important checks are the part number MXS811, the 12V electrical system, the clockwise rotation and the 2 hole mounting arrangement. The listed 105mm mount centres, 65mm flange diameter and 10mm mount hole diameter are practical measurements that should be compared with the removed unit before ordering.

The 8 tooth pinion, 28mm pinion diameter and 4mm pinion at rest are equally important because starters with similar external shapes can still differ in engagement depth and gear count. On a unit weighing 3.56kg and rated at 1.6kW, those details help confirm the correct replacement rather than relying on appearance alone.

Although the supplied application data includes Holden, Suzuki, Toyota and Vauxhall references, the fitment information is broad and model-specific. The safest approach is to confirm the vehicle application, engine setup if relevant, and the original starter details before fitting, especially where the vehicle has had previous repairs or parts substitutions.

OEX supports this new starter motor with a 3 year passenger / 1 year commercial warranty. That warranty structure, together with the new unit status, is useful buying context, but it does not replace the need to confirm the mounting pattern, rotation, tooth count and part number against the original starter.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS811 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 105mm, Number of Teeth 8, Pinion at Rest 4mm, Power Rating 1.6kW, Suits Unit Make Mitsubishi, Item Type Starter Motor, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 3.56kg, Product Group 1 ROTATING ELECTRICAL, Part No. MXS811, Brand OEX, Description OEX Starter Motor 12V 8Th CW Mitsubishi Style, Flange Diameter 65mm, Mount Hole Diameter 10, Overall Length 205mm, Pinion Diameter 28mm, Rotation CW.

OEX Starter Motor 12V 8Th CW Mitsubishi Style. Part number MXS811 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS811, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HOLDEN CRUZE, HOLDEN CRUZE 2002, HOLDEN CRUZE 2003, HOLDEN CRUZE 2004, SUZUKI BALENO, SUZUKI BALENO 1995. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment using part number MXS811, the 12V specification, clockwise rotation, 8 tooth pinion, 2 hole mount and the measured dimensions before purchase. Where the vehicle application is listed broadly, the original starter should always be checked against the supplied details.

FAQ

What is the part number for this OEX starter motor?

The part number is MXS811. For this listing, part number MXS811 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN CRUZE, HOLDEN CRUZE 2002, HOLDEN CRUZE 2003. These details should still be checked against the original unit before ordering.

Is this starter motor new or re-manufactured?

It is listed as a new starter motor. For this listing, part number MXS811 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN CRUZE, HOLDEN CRUZE 2002, HOLDEN CRUZE 2003. These details should still be checked against the original unit before ordering.

What voltage does this starter use?

It is a 12V starter motor. For this listing, part number MXS811 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN CRUZE, HOLDEN CRUZE 2002, HOLDEN CRUZE 2003. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 8 teeth. For this listing, part number MXS811 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN CRUZE, HOLDEN CRUZE 2002, HOLDEN CRUZE 2003. These details should still be checked against the original unit before ordering.

What is the rotation direction?

The rotation is clockwise, shown as CW. For this listing, part number MXS811 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN CRUZE, HOLDEN CRUZE 2002, HOLDEN CRUZE 2003. These details should still be checked against the original unit before ordering.

What warranty is listed for this starter motor?

OEX lists a 3 year passenger / 1 year commercial warranty for this new unit. For this listing, part number MXS811 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN CRUZE, HOLDEN CRUZE 2002, HOLDEN CRUZE 2003. These details should still be checked against the original unit before ordering.
