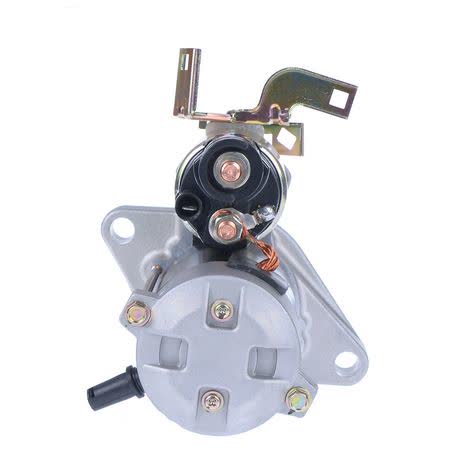

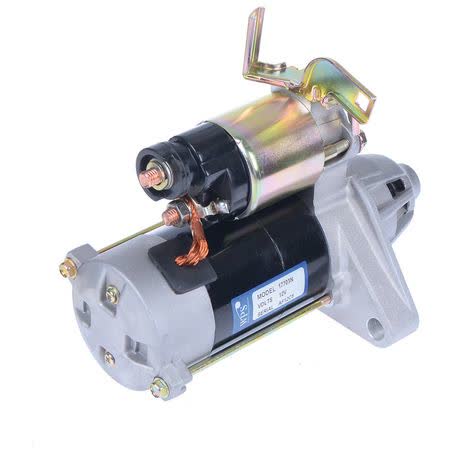

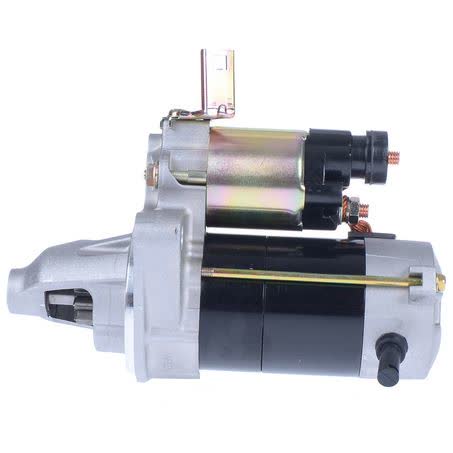

OEX Starter Motor 12V 9 Tooth CW Denso Style DXS4013

The OEX starter motor under part number DXS4013 is a 12V, clockwise rotating unit with 9 teeth and a 1.2kW power rating. It is listed as a new starter motor and is described as Denso style, with a 2 hole starter mount to suit a Denso unit make application where the mounting and drive dimensions match.

Key physical dimensions include 127mm mount centres, a 75mm flange diameter, 11mm mount hole diameter, 220mm overall length, 29mm pinion diameter and 33mm pinion at rest. At 7kg, this is a substantial rotating electrical component, so the vehicle application and mounting layout should be checked carefully before ordering.

OEX states its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, with supply from ISO certified factories. This starter motor is backed by a 3 year passenger warranty and 1 year commercial warranty, which gives buyers a clear ownership benchmark when the application is confirmed correctly.

Key Features

• 12V starter motor
• Clockwise rotation (CW)
• 9 tooth pinion
• 1.2kW power rating
• Denso style unit
• 2 hole starter mount

Specifications

• Part number: DXS4013
• Brand: OEX
• Product type: Starter motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 9
• Power rating: 1.2kW
• Mount centres A: 127mm

Verified fitment guidance

• Fitment is listed against Honda applications, including Honda Civic and Honda CR-V references in the supplied application data.
• Honda Civic applications are shown across model years including 2000 through 2010 in the provided fitment preview.
• Application matching still depends on the exact vehicle build, starter mounting arrangement and drive specifications, not the model name alone.

Application and Buying Notes

Before ordering, compare the part number DXS4013 with the existing starter and confirm the vehicle uses a 12V clockwise starter with a 9 tooth pinion. The mounting layout is just as important: this unit is a 2 hole starter with 127mm mount centres, an 11mm mount hole diameter and a 75mm flange diameter, so the physical fit needs to line up with the original unit.

The 1.2kW power rating, 220mm overall length and 29mm pinion diameter are useful checks when matching the starter to the vehicle. If the original starter differs in rotation, tooth count, mount type or dimensions, do not assume interchangeability just because the application appears similar.

This starter is listed as suitable for Denso style applications, so the safe approach is to verify the unit make, drive type and mounting details against the vehicle already fitted. The supplied application data includes Honda Civic and Honda CR-V references, but final confirmation should be made using the part number and the exact starter specification on the vehicle.

The warranty is 3 years for passenger use and 1 year for commercial use, which is helpful when the starter is fitted to the correct application and installed properly. As with any rotating electrical part, ensure the battery condition, charging system and cable connections are checked before installation so the new starter is not put under avoidable load.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS4013 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 127mm, Number of Teeth 9, Pinion at Rest 33mm, Power Rating 1.2kW, Suits Unit Make Denso, Item Type Starter Motor, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 7kg, Product Group 1 ROTATING ELECTRICAL, Part No. DXS4013, Brand OEX, Description OEX Starter Motor 12V 9Th CW Denso Style, Flange Diameter 75mm, Mount Hole Diameter 11, Overall Length 220mm, Pinion Diameter 29mm, Rotation CW.

OEX Starter Motor 12V 9Th CW Denso Style. Part number DXS4013 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS4013, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HONDA CIVIC, HONDA CIVIC 2000, HONDA CIVIC 2001, HONDA CIVIC 2002. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility by matching part number DXS4013, 12V clockwise rotation, 9 tooth pinion, 2 hole mount and the listed dimensions against the vehicle’s original starter and application details before purchase.

FAQ

What is the part number for this starter motor?

The part number is DXS4013. For this listing, part number DXS4013 is the main reference point. Listed voltage is 12. Published fitment references include HONDA CIVIC, HONDA CIVIC 2000, HONDA CIVIC 2001. These details should still be checked against the original unit before ordering.

Is this starter motor 12V?

Yes. The listed voltage is 12V. For this listing, part number DXS4013 is the main reference point. Listed voltage is 12. Published fitment references include HONDA CIVIC, HONDA CIVIC 2000, HONDA CIVIC 2001. These details should still be checked against the original unit before ordering.

What rotation does this starter use?

It is a clockwise rotating starter motor, listed as CW. For this listing, part number DXS4013 is the main reference point. Listed voltage is 12. Published fitment references include HONDA CIVIC, HONDA CIVIC 2000, HONDA CIVIC 2001. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 9 teeth. For this listing, part number DXS4013 is the main reference point. Listed voltage is 12. Published fitment references include HONDA CIVIC, HONDA CIVIC 2000, HONDA CIVIC 2001. These details should still be checked against the original unit before ordering.

What vehicles are shown in the fitment data?

The supplied fitment references include Honda Civic and Honda CR-V applications, with Honda Civic model years shown from 2000 through 2010 in the preview data. For this listing, part number DXS4013 is the main reference point. Listed voltage is 12. Published fitment references include HONDA CIVIC, HONDA CIVIC 2000, HONDA CIVIC 2001. These details should still be checked against the original unit before ordering.

What warranty is listed?

The listed warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number DXS4013 is the main reference point. Listed voltage is 12. Published fitment references include HONDA CIVIC, HONDA CIVIC 2000, HONDA CIVIC 2001. These details should still be checked against the original unit before ordering.
