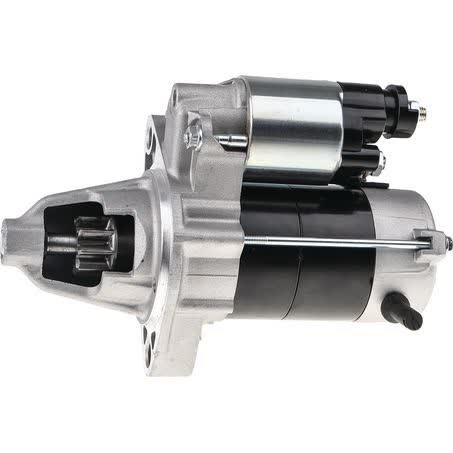

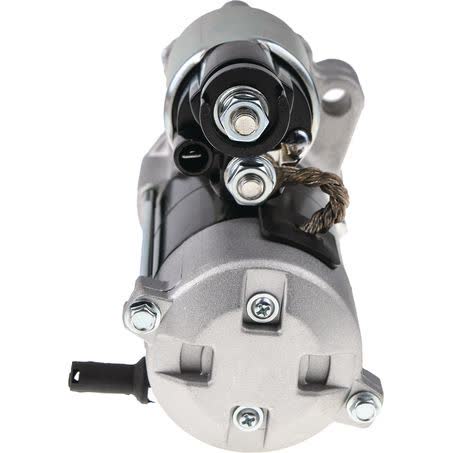

OEX Starter Motor 12V 9 Tooth CW Denso Style DXS469

The OEX starter motor DXS469 is a new 12V unit in a 9 tooth, clockwise rotation configuration, built in a Denso style and supplied as a 2 hole starter mount type. Key physical dimensions include 108mm mount centres, a 75mm flange diameter, 11mm mount hole diameter, and an overall length of 213mm, so it is important to compare the unit side by side with the original before ordering.

This starter motor is rated at 1kW and uses a pinion with 9 teeth, 29mm pinion diameter, and 38mm pinion at rest. It is listed as a dry clutch starter and weighs 3.28kg. Those measurements matter when checking interchange, because a starter can share voltage and tooth count but still differ in mounting or nose dimensions.

OEX describes this product as being sourced from market leading original equipment manufacturers and aftermarket suppliers, with production from ISO certified factories. It is backed by a 3 year passenger and 1 year commercial warranty, which gives buyers a clear warranty basis when choosing a replacement starter motor for a compatible application.

Key Features

• 12V starter motor
• 1kW power rating
• 9 tooth pinion
• Clockwise rotation
• Denso style unit
• New replacement part

Specifications

• Part number: DXS469
• Brand: OEX
• Product type: Starter Motor
• Voltage: 12V
• Power rating: 1kW
• Rotation: CW
• Number of teeth: 9
• Pinion diameter: 29mm

Fitment guidance

• Verified fitment references include Honda Civic, Honda CR-V, and Honda Integra applications.
• Sample application coverage includes Honda Civic 2006, 2007, 2008, 2009, 2010, 2011, and 2012.
• Fitment data also includes Honda CR-V 1997, 1998, and 1999 in the provided application list.

Application and Buying Notes

When comparing this starter motor to the unit on the vehicle, check the part number DXS469 first, then confirm the electrical and physical details: 12V, 1kW, 9 tooth, clockwise rotation, and a 2 hole mount layout. The 108mm mount centres, 75mm flange diameter, 11mm mounting holes, and 213mm overall length are the most useful measurements for confirming whether the replacement will physically match the original starter.

The listed fitment information points to Honda Civic, Honda CR-V, and Honda Integra applications, but model naming alone is not enough for a safe match. Honda used different starter layouts across ranges, so confirm the vehicle details against the original starter’s tooth count, rotation, mount type, and dimensions before purchasing. A starter that looks similar can still differ in nose depth, bolt spacing, or pinion position.

This unit is supplied new and is described as a Denso style starter motor, so matching the style and mounting layout matters as much as matching voltage. The 38mm pinion at rest and 29mm pinion diameter are useful checkpoints if you are comparing units on the bench or replacing a damaged starter where the tag or original packaging is no longer available.

The warranty is listed as 3 years for passenger use and 1 year for commercial use. That warranty is helpful, but it does not replace fitment checking. For the best result, compare the vehicle application, the original starter part number if available, and the physical measurements listed here before ordering.

If you are replacing a failed starter, inspect the original unit for any visible part number, mounting pattern, and pinion tooth count before installation. The combination of 12V, clockwise rotation, 9 teeth, and 108mm mount centres is the key identification set for this unit, and it should be matched carefully to the vehicle’s original specification.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS469 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 108mm, Number of Teeth 9, Pinion at Rest 38mm, Power Rating 1kW, Suits Unit Make Denso, New / Reman. New, Wet / Dry Clutch Dry.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. DXS469, Brand OEX, Description OEX Starter Motor 12V 9Th CW Denso Style, Flange Diameter 75mm, Mount Hole Diameter 11, Overall Length 213mm, Pinion Diameter 29mm, Rotation CW.

OEX Starter Motor 12V 9Th CW Denso Style. Part number DXS469 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS469, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HONDA CIVIC, HONDA CIVIC 2006, HONDA CIVIC 2007, HONDA CIVIC 2008. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm compatibility using the part number DXS469, the 12V 9 tooth clockwise specification, and the listed mounting dimensions before ordering. Vehicle model names alone are not enough to guarantee a match.

FAQ

What is the part number for this starter motor?

The part number is DXS469.

What voltage is this starter motor?

It is a 12V starter motor.

How many teeth does the pinion have?

The pinion has 9 teeth.

What rotation does it use?

It is clockwise rotation, listed as CW.

Is this a new or remanufactured unit?

It is listed as new.

What warranty is supplied?

The warranty is 3 years for passenger use and 1 year for commercial use.
