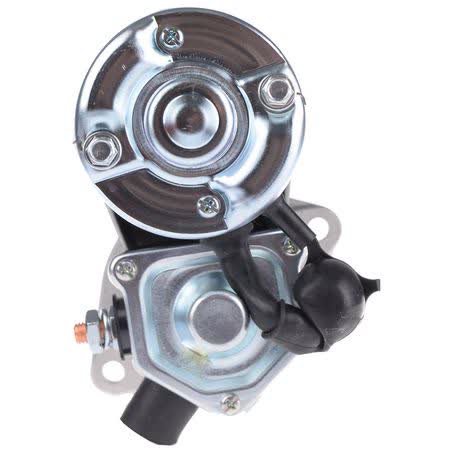

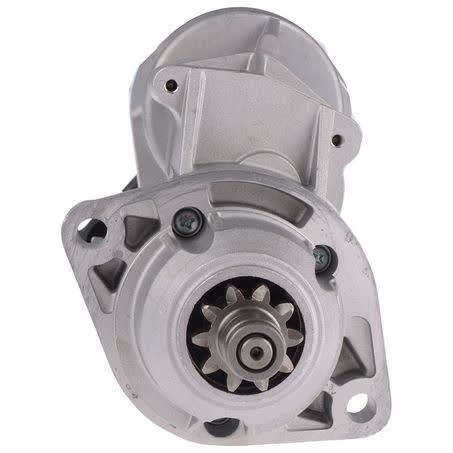

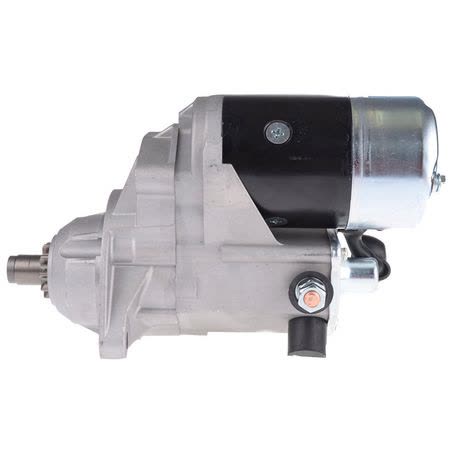

OEX Starter Motor 24V 10 Tooth CW Denso Style DXS4008

The OEX DXS4008 is a 24V starter motor built in a Denso style with clockwise rotation and a 10 tooth pinion. It is listed as a new unit with a 4.5kW power rating, 2 hole starter mount type, and an overall length of 290mm for applications that match these physical and electrical details.

Key dimensions include a 127mm mount centres A measurement, 89mm flange diameter, 11mm mount hole diameter, 40mm pinion diameter, and 48mm pinion at rest. These measurements matter when you are matching the starter to the existing unit, especially where housing shape and mounting position need to line up closely.

OEX identifies this starter as suitable for Denso applications and lists it for wet or dry clutch use. The unit weighs 8.881kg and carries part number DXS4008, which is the most important reference to confirm before ordering if you are replacing an existing starter motor.

Key Features

• 24V starter motor
• 10 tooth pinion
• Clockwise rotation
• Denso style application
• 2 hole starter mount
• New unit

Specifications

• Brand: OEX
• Product type: Starter Motor
• Part No.: DXS4008
• Voltage: 24
• Power rating: 4.5kW
• Rotation: CW
• Number of teeth: 10
• Suits unit make: Denso

Known fitment applications

• AMMANN ASC110
• AMMANN ASC130
• AMMANN ASC150
• AMMANN ASC170
• AMMANN AV130
• AMMANN AV130X
• HYUNDAI CONSTRUCTION R210LC-9
• HYUNDAI CONSTRUCTION R235LCR-9

Application and Buying Notes

Before ordering, compare the part number DXS4008 and the 24V electrical specification with the starter you are removing. The 10 tooth pinion, clockwise rotation, and Denso style design must all align with the vehicle or machine application, because starter motors that are close in appearance can still differ in tooth count, rotation, or mounting.

Check the physical dimensions carefully if you are matching by sample or by installed space. The listed measurements are 127mm mount centres A, 89mm flange diameter, 11mm mount hole diameter, 290mm overall length, 40mm pinion diameter, and 48mm pinion at rest. Those figures are the practical checkpoints for confirming whether the unit will sit and engage correctly.

This starter is listed for wet or dry clutch use and as a 2 hole mount type, which are useful clues when comparing to the existing assembly. If your machine uses a Denso starter arrangement, the specified suitability for Denso and the 4.5kW power rating provide a good starting point for verification, but the safest approach is still to match the part number and dimensions together.

The warranty listed is 3 years for passenger use and 1 year for commercial use. That is helpful for purchase planning, but it does not replace fitment confirmation. For a rotating electrical part like this, the correct voltage, tooth count, rotation, and mounting layout are the details that matter most at the point of sale.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS4008 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 127mm, Number of Teeth 10, Pinion at Rest 48mm, Power Rating 4.5kW, Suits Unit Make Denso, Item Type Starter Motor, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 8.881kg, Product Group 1 ROTATING ELECTRICAL, Part No. DXS4008, Brand OEX, Description OEX Starter Motor 24V 10Th CW Denso Style, Flange Diameter 89mm, Mount Hole Diameter 11, Overall Length 290mm, Pinion Diameter 40mm, Rotation CW.

OEX Starter Motor 24V 10Th CW Denso Style. Part number DXS4008 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS4008, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include AMMANN ASC110, AMMANN ASC110 2007, AMMANN ASC110 2008, AMMANN ASC110 2009, HYUNDAI CONSTRUCTION R210LC-9, HYUNDAI CONSTRUCTION R210LC-9 2009. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment using the part number DXS4008, the 24V specification, the 10 tooth clockwise Denso style configuration, and the measured mounting details before ordering.

FAQ

What is the part number for this starter motor?

The part number is DXS4008. For this listing, part number DXS4008 is the main reference point. Listed voltage is 24. Published fitment references include AMMANN ASC110, AMMANN ASC110 2007, AMMANN ASC110 2008. These details should still be checked against the original unit before ordering.

What voltage does this starter motor use?

It is listed as a 24V starter motor. For this listing, part number DXS4008 is the main reference point. Listed voltage is 24. Published fitment references include AMMANN ASC110, AMMANN ASC110 2007, AMMANN ASC110 2008. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 10 teeth. For this listing, part number DXS4008 is the main reference point. Listed voltage is 24. Published fitment references include AMMANN ASC110, AMMANN ASC110 2007, AMMANN ASC110 2008. These details should still be checked against the original unit before ordering.

What rotation does this starter motor have?

It is clockwise rotation, listed as CW. For this listing, part number DXS4008 is the main reference point. Listed voltage is 24. Published fitment references include AMMANN ASC110, AMMANN ASC110 2007, AMMANN ASC110 2008. These details should still be checked against the original unit before ordering.

What type of mount does it use?

It is a 2 hole starter mount type with mount centres A of 127mm. For this listing, part number DXS4008 is the main reference point. Listed voltage is 24. Published fitment references include AMMANN ASC110, AMMANN ASC110 2007, AMMANN ASC110 2008. These details should still be checked against the original unit before ordering.

Which applications are listed for this starter motor?

Listed applications include AMMANN ASC110, ASC130, ASC150, ASC170, AV130 and AV130X; HYUNDAI CONSTRUCTION R210LC-9, R235LCR-9, R250LC-9 and R290LC-9; JCB 426HT; and KOMATSU D31EX-21/PX-21, D31EX/PX-22, D37EX-21/PX-21, D37EX/PX-22, D39EX-21/PX-21, D39EX-22/PX-22, D41E-6/P-6, D51EX-22/PX-22, GD555-5 and GD655-5. For this listing, part number DXS4008 is the main reference point. Listed voltage is 24. Published fitment references include AMMANN ASC110, AMMANN ASC110 2007, AMMANN ASC110 2008. These details should still be checked against the original unit before ordering.
