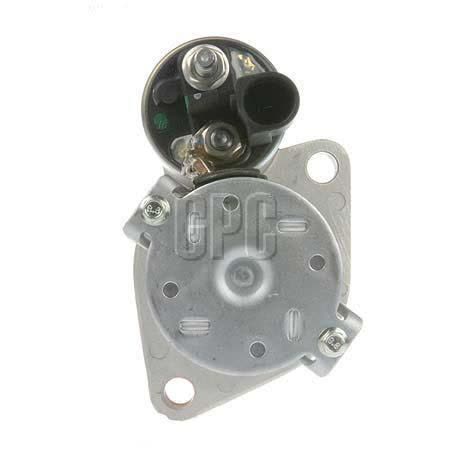

Valeo Starter Motor 12V 1.1KW 10 Tooth CCW Part No. 438174

Valeo starter motor, 12V, 1.1kW, 10 tooth, counter clockwise (CCW) rotation, part number 438174. It is a new starter motor sold each, with a one year warranty and a listed weight of 3.184kg.

Key physical details include a 76mm flange diameter, 208mm overall length, 28mm pinion diameter, 62mm pinion at rest and a 2 hole starter mount type. Mount hole diameter is 12mm, with mount centre to centre at 111mm and position / degree listed as L 42.

This unit is for Valeo applications and is described as a high-quality component intended to improve lifetime, reliability and efficiency. As with any starter motor, matching the part number, mounting pattern and electrical specifications is the sensible way to confirm the correct part before ordering.

Key Features

• 12V starter motor
• 1.1kW power rating
• 10 tooth pinion
• Counter clockwise rotation
• 2 hole starter mount
• New unit, sold each

Specifications

• Brand: Valeo
• Part No.: 438174
• Product type: Starter motor
• Voltage: 12V
• Power rating: 1.1kW
• Rotation: CCW
• Number of teeth: 10
• Starter mount type: 2 hole

Fitment guidance

• Verified fitment references include Audi A3 and Audi TT.
• Verified fitment references include Skoda Octavia, Skoda Roomster, Skoda Superb and Skoda Yeti.
• Verified fitment references include Volkswagen Beetle, Volkswagen EOS, Volkswagen Golf, Volkswagen Jetta, Volkswagen New Beetle, Volkswagen Passat, Volkswagen Polo, Volkswagen Scirocco, Volkswagen Tiguan and Volkswagen Touran.
• Some supported application references include model year listings such as Audi A3 2003 to 2013, Skoda Octavia 2004 to 2013 and Volkswagen Beetle 2003 to 2010.
• Fitment should still be checked against the part number 438174, mounting details and starter specifications before purchase.

Application and Buying Notes

The main buying checkpoints on this Valeo starter are the 12V electrical setup, 1.1kW power rating, 10 tooth pinion and CCW rotation. Those details matter because a starter can look similar in photos while still having different rotation, tooth count or mounting dimensions.

Mounting measurements are also important on this unit. The starter uses a 2 hole mount, 12mm mount hole diameter, 111mm mount centre to centre and a 76mm flange diameter, so compare those dimensions with the original starter before ordering.

The listed fitment references cover a range of Audi, Skoda and Volkswagen applications, but the safest way to buy is to confirm the part number 438174 first, then check the vehicle application and physical dimensions. That is especially useful where there are multiple starter variants across the same model range.

If you are replacing a failed starter, note the pinion diameter of 28mm, pinion at rest measurement of 62mm and the L 42 position / degree listing. These are practical identifiers for workshop cross-checking and can help avoid delays from returning the wrong unit.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 438174 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Hole Diameter 12, Overall Length 208mm, Pinion Diameter 28mm, Rotation CCW, Voltage 12, Mount Cnt to Cnt 111mm, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Position / Degree L 42, Number of Thread Bores 2, Product Group 2 STARTER MOTORS, Part No. 438174, Brand VALEO, Description Valeo Starter Motor 12V 10Th CCW, Flange Diameter 76mm, Number of Teeth 10, Pinion at Rest 62mm.

Valeo Starter Motor 12V 10Th CCW. Part number 438174 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number 438174, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include AUDI A3, AUDI A3 2003, AUDI A3 2004, AUDI A3 2005, SKODA OCTAVIA, SKODA OCTAVIA 2004. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility by matching part number 438174, 12V electrical specification, CCW rotation, 10 tooth pinion and the mounting measurements against the vehicle application before ordering.

FAQ

What is the part number for this starter motor?

The listed part number is 438174. For this listing, part number 438174 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A3, AUDI A3 2003, AUDI A3 2004. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

It is listed as new. For this listing, part number 438174 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A3, AUDI A3 2003, AUDI A3 2004. These details should still be checked against the original unit before ordering.

What voltage does this starter motor use?

It is a 12V starter motor. For this listing, part number 438174 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A3, AUDI A3 2003, AUDI A3 2004. These details should still be checked against the original unit before ordering.

What rotation does this starter motor have?

The rotation is listed as CCW, which means counter clockwise. For this listing, part number 438174 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A3, AUDI A3 2003, AUDI A3 2004. These details should still be checked against the original unit before ordering.

Which vehicles are referenced for fitment?

Referenced applications include Audi A3 and Audi TT, Skoda Octavia, Roomster, Superb and Yeti, and Volkswagen Beetle, EOS, Golf, Jetta, New Beetle, Passat, Polo, Scirocco, Tiguan and Touran. For this listing, part number 438174 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A3, AUDI A3 2003, AUDI A3 2004. These details should still be checked against the original unit before ordering.

What should I check before ordering?

Check the part number 438174, 12V specification, CCW rotation, 10 tooth pinion and the mounting dimensions including the 2 hole mount, 111mm centre to centre and 76mm flange diameter. For this listing, part number 438174 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A3, AUDI A3 2003, AUDI A3 2004. These details should still be checked against the original unit before ordering.
