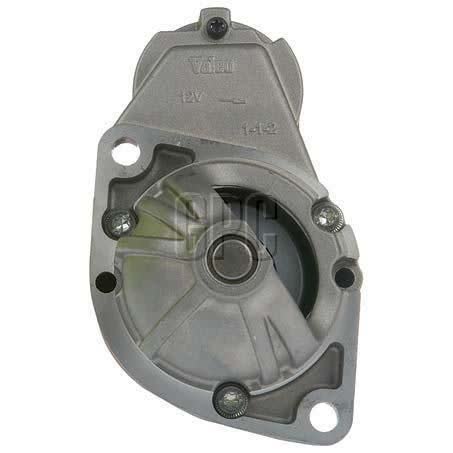

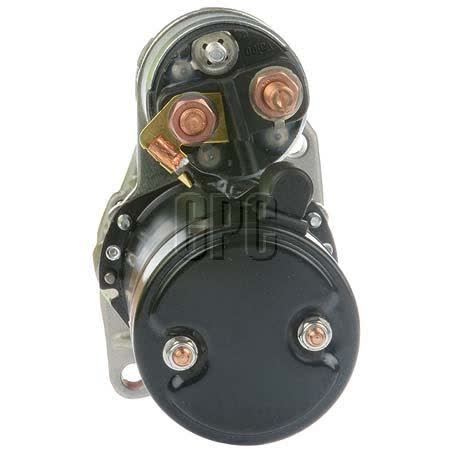

Valeo Starter Motor 12V 10 Tooth CW Part No. 438146

The Valeo Starter Motor listed here is a new 12V rotating electrical unit with 10 teeth and clockwise rotation, part number 438146. It is specified as a dry-clutch starter with a 1.3kW power rating, making the core electrical and mechanical details easy to compare before ordering.

Physical dimensions matter on starters, and this unit is listed with an overall length of 205mm, a flange diameter of 70mm, a nose cone length of 49mm, and a mount hole diameter of 8mm. The mount centre-to-centre measurement is 99mm, and the starter mount type is 2 hole.

Valeo is identified as the brand and the suit unit make, and the unit is described as a new starter motor rather than remanufactured. It carries a one year warranty and weighs 2.83kg, which may help when checking against an existing starter during replacement planning.

Key Features

• 12V starter motor
• 10 tooth pinion
• Clockwise rotation
• New unit, not remanufactured
• 1.3kW power rating
• 2 hole starter mount

Specifications

• Brand: Valeo
• Part No.: 438146
• Product type: Starter motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 10
• Power rating: 1.3kW
• Mount hole diameter: 8mm

Fitment information

• MERCEDES-BENZ: A-CLASS, A-CLASS 1999, A-CLASS 2000, A-CLASS 2001, A-CLASS 2002, plus other listed applications

Application and Buying Notes

Before ordering, match the part number 438146, the 12V rating, the 10 tooth pinion, and the clockwise rotation to the starter you are removing. Those are the most useful identifiers for avoiding an incorrect replacement when the vehicle application is not being matched by VIN or catalogue reference.

The listed mounting details are also important. This starter uses a 2 hole mount, 8mm mount holes, and 99mm mount centre-to-centre spacing, so the mounting face and bolt pattern should be checked carefully against the vehicle and the removed unit.

Physical size can affect clearance around the bellhousing and adjacent components. The key dimensions listed here are 205mm overall length, 70mm flange diameter, 49mm nose cone length, and a 26mm pinion diameter, with the pinion at rest measured at 14mm.

This starter is described as a Valeo unit and is supplied new, with a one year warranty. If you are replacing an existing starter, comparing the old unit against these measurements and the part number is the safest way to confirm the correct match before fitting.

The product is listed with fitment references that include Mercedes-Benz A-Class applications, but the safest approach is still to confirm the exact vehicle application against the part number and the physical starter details above. A nominal match in make or model name is not enough if the mounting, tooth count, or rotation differs.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 438146 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Hole Diameter 8, Number of Teeth 10, Pinion at Rest 14mm, Power Rating 1.3kW, Suits Unit Make Valeo, Mount Cnt to Cnt 99mm, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Position / Degree L 37, Weight 2.83kg, Product Group 1 ROTATING ELECTRICAL, Part No. 438146, Brand VALEO, Description Valeo Starter Motor 12V 10Th CW, Flange Diameter 70mm, Nose Cone Length 49mm, Overall Length 205mm, Pinion Diameter 26mm.

Valeo Starter Motor 12V 10Th CW. Part number 438146 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number 438146, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Please confirm fitment by checking part number 438146, 12V, 10 tooth, clockwise rotation, 2 hole mount, and the listed dimensions against the vehicle and the removed starter before purchase.

FAQ

Is this starter motor new or remanufactured?

It is listed as new, not remanufactured. For this listing, part number 438146 is the main reference point. Listed voltage is 12. Published fitment references include MERCEDES-BENZ A-CLASS, MERCEDES-BENZ A-CLASS 1999, MERCEDES-BENZ A-CLASS 2000. These details should still be checked against the original unit before ordering.

What is the part number?

The part number is 438146. For this listing, part number 438146 is the main reference point. Listed voltage is 12. Published fitment references include MERCEDES-BENZ A-CLASS, MERCEDES-BENZ A-CLASS 1999, MERCEDES-BENZ A-CLASS 2000. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

It is a 12V starter motor. For this listing, part number 438146 is the main reference point. Listed voltage is 12. Published fitment references include MERCEDES-BENZ A-CLASS, MERCEDES-BENZ A-CLASS 1999, MERCEDES-BENZ A-CLASS 2000. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion is listed with 10 teeth. For this listing, part number 438146 is the main reference point. Listed voltage is 12. Published fitment references include MERCEDES-BENZ A-CLASS, MERCEDES-BENZ A-CLASS 1999, MERCEDES-BENZ A-CLASS 2000. These details should still be checked against the original unit before ordering.

What rotation does it use?

It is listed as clockwise rotation, shown as CW. For this listing, part number 438146 is the main reference point. Listed voltage is 12. Published fitment references include MERCEDES-BENZ A-CLASS, MERCEDES-BENZ A-CLASS 1999, MERCEDES-BENZ A-CLASS 2000. These details should still be checked against the original unit before ordering.

What should I verify before buying?

Confirm the part number 438146, 12V rating, 10 tooth pinion, CW rotation, 2 hole mount, and the listed dimensions including 99mm mount centre-to-centre and 205mm overall length. For this listing, part number 438146 is the main reference point. Listed voltage is 12. Published fitment references include MERCEDES-BENZ A-CLASS, MERCEDES-BENZ A-CLASS 1999, MERCEDES-BENZ A-CLASS 2000. These details should still be checked against the original unit before ordering.
