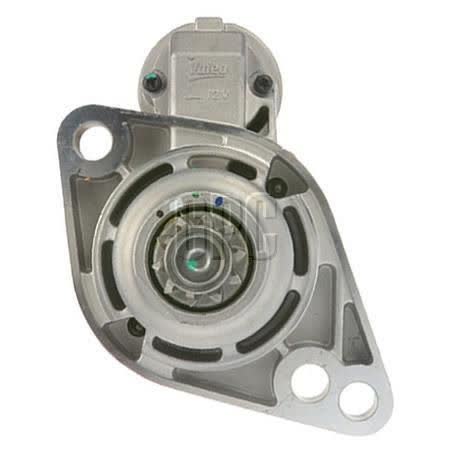

Valeo Starter Motor 12V 10 Tooth CCW 438171

Valeo starter motor, 12V, 10 tooth, CCW rotation, part number 438171. It is a new unit with a 1.1kW power rating, 3 hole starter mount, and dry clutch application details that matter when matching the replacement to the vehicle.

This starter motor measures 203mm overall length, has a 76mm flange diameter, 127mm mount centres A, 110mm mount centres B, 17mm mount centres C, and a 12mm mount hole diameter. Those dimensions are the key checks when comparing against the original starter before ordering.

The pinion specification is 10 teeth with a 28mm pinion diameter and 52mm pinion at rest. Weight is 3.18kg, and the unit is listed as suitable for Valeo applications. The warranty period is one year.

Key Features

• 12V starter motor
• 10 tooth pinion
• CCW rotation
• 1.1kW power rating
• New unit
• 3 hole starter mount

Specifications

• Brand: Valeo
• Part No.: 438171
• Type: Starter Motor
• Voltage: 12V
• Power Rating: 1.1kW
• Rotation: CCW
• Number of Teeth: 10
• Pinion Diameter: 28mm

Fitment guidance

• Fitment data is provided for Audi, Skoda and Volkswagen applications.
• Listed makes include Audi A1, Audi A3 and Audi TT.
• Listed makes include Skoda Octavia, Skoda Superb and Skoda Yeti.
• Listed makes include Volkswagen Beetle, Volkswagen CC, Volkswagen Golf, Volkswagen Jetta, Volkswagen Passat, Volkswagen Polo, Volkswagen Touran and Volkswagen Transporter / Caravelle.
• A number of year-specific applications are shown in the fitment data, including Audi A1 2011 to 2015, Skoda Octavia 2004 to 2013, and Volkswagen Beetle 2011 to 2016.
• The fitment record is broad but should still be matched against the exact vehicle application, original starter details and the physical mounting dimensions before purchase.

Application and Buying Notes

The most reliable way to choose this starter is by comparing the part number 438171, the 12V electrical rating and the 10 tooth, CCW configuration against the unit being replaced. The mounting pattern is also important here: 3 hole starter mount, 127mm mount centres A, 110mm mount centres B, 17mm mount centres C, and 12mm mount hole diameter.

If you are checking against an existing starter, confirm the overall length of 203mm, flange diameter of 76mm and the 28mm pinion diameter. Those dimensions can help rule out units that look similar but are not the same in fit or engagement.

The listed application coverage includes Audi, Skoda and Volkswagen vehicles, but starter motors are not interchangeable just because the make is the same. Matching the exact model, year and engine application is still important, especially where the rotation direction, tooth count or mounting layout differ.

This unit is a new Valeo starter motor with a 1.1kW power rating and a one year warranty. That makes it a practical replacement choice where the original specifications line up, but it is still best to compare the old part carefully before ordering.

If the vehicle uses a dry clutch arrangement, that detail aligns with the product listing. If you are unsure, check the existing starter, the vehicle application and the physical mount dimensions rather than relying on appearance alone.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 438171 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 127mm, Mount Centres C 17mm, Number of Teeth 10, Pinion at Rest 52mm, Power Rating 1.1kW, Suits Unit Make Valeo, Item Type Starter Motor.

Additional published details for cross-checking include New / Reman. New, Wet / Dry Clutch Dry, Clamp NO, Product Group 2 STARTER MOTORS, Part No. 438171, Brand VALEO, Description Valeo Starter Motor 12V 10Th CCW, Flange Diameter 76mm, Mount Centres B 110mm.

Valeo Starter Motor 12V 10Th CCW. Part number 438171 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number 438171, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Please confirm fitment using part number 438171, the 12V 10 tooth CCW specification, and the exact mounting dimensions before ordering. Vehicle application details should always be checked against the original starter and the specific car.

FAQ

What is the part number for this Valeo starter motor?

The part number is 438171. For this listing, part number 438171 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A1, AUDI A1 2011, AUDI A1 2012. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

It is a 12V starter motor. For this listing, part number 438171 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A1, AUDI A1 2011, AUDI A1 2012. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 10 teeth. For this listing, part number 438171 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A1, AUDI A1 2011, AUDI A1 2012. These details should still be checked against the original unit before ordering.

What is the rotation direction?

The rotation is CCW. For this listing, part number 438171 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A1, AUDI A1 2011, AUDI A1 2012. These details should still be checked against the original unit before ordering.

What vehicles are shown in the fitment data?

The fitment data includes Audi, Skoda and Volkswagen applications, including Audi A1, Audi A3, Audi TT, Skoda Octavia, Skoda Superb, Skoda Yeti, Volkswagen Beetle, Volkswagen CC, Volkswagen Golf, Volkswagen Jetta, Volkswagen Passat, Volkswagen Polo, Volkswagen Touran and Volkswagen Transporter / Caravelle. For this listing, part number 438171 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A1, AUDI A1 2011, AUDI A1 2012. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

It is listed as new. For this listing, part number 438171 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A1, AUDI A1 2011, AUDI A1 2012. These details should still be checked against the original unit before ordering.
