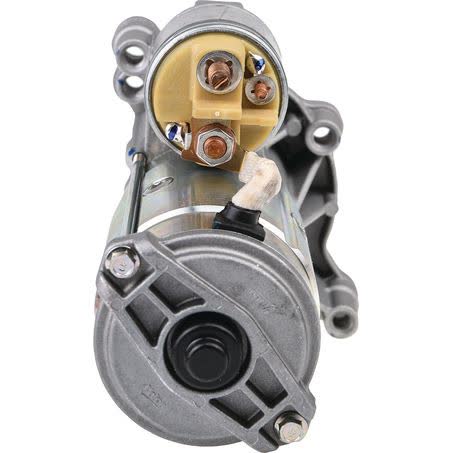

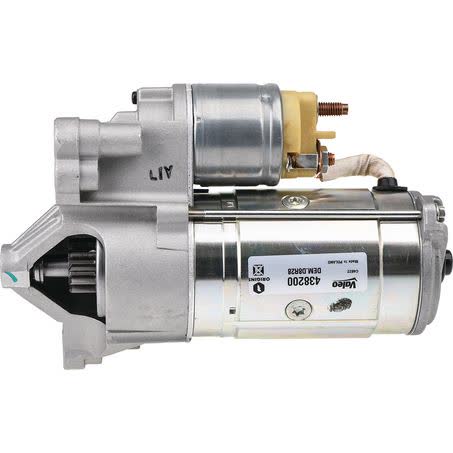

Valeo Starter Motor 12V 11T CW Part No. 438200

The Valeo starter motor listed here is a 12V, clockwise-rotation unit with 11 teeth and part number 438200. It is a new starter motor, supplied each, with a 2.5kW power rating and a 5 hole starter mount type.

Key dimensional details include 121mm mount centres A, 85mm mount centres C, 85mm mount centres B, a 67mm flange diameter, 237mm overall length, and M10x1.5 mount hole diameter. The pinion measures 29mm in diameter and sits at -5mm at rest.

This starter is described as suitable for Valeo units and is listed as a dry clutch type. The unit weighs 4.789kg and carries a one year warranty, which gives a clear reference point when comparing against an existing starter during replacement work.

Key Features

• Valeo starter motor, part number 438200
• 12V electrical system
• 11 tooth pinion
• Clockwise rotation
• 2.5kW power rating
• New unit, supplied each

Specifications

• Brand: Valeo
• Product type: Starter motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 11
• Power rating: 2.5kW
• Overall length: 237mm
• Flange diameter: 67mm

Known fitment references

• Citroen C4 Grand Picasso
• Citroen C4 Picasso
• Citroen C5
• Citroen DS 5
• Citroen DS4
• Citroen DS5
• Mitsubishi Lancer
• Mitsubishi Outlander

Application and Buying Notes

Before ordering, match the part number 438200 against the starter currently fitted to the vehicle, then compare the electrical and mechanical details: 12V, 11 teeth, clockwise rotation, 2.5kW output, and the 5 hole mount type. Those identifiers are the most useful starting points when confirming whether a replacement starter is the correct style for the application.

The mounting measurements also need to line up with the vehicle and the old unit. Check the 121mm mount centres A, 85mm mount centres B and C, 67mm flange diameter, 237mm overall length, M10x1.5 mount hole diameter, and the 29mm pinion diameter. Small differences in these dimensions can stop a starter from fitting or operating correctly.

The listed fitment references include Citroen, Mitsubishi and Peugeot applications, but model names alone are not enough to confirm suitability. Starter motors can vary within the same model range, so the safest approach is to verify the existing starter number, tooth count, rotation direction and mounting pattern before purchase.

Because this unit is a Valeo starter motor for Valeo applications, it is worth checking whether the vehicle has a Valeo-style starter with the same mount centres and pinion specification. The dry clutch note, one year warranty and 4.789kg weight can also help you compare against the removed part when identifying the correct replacement.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 438200 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 121mm, Mount Centres C 85mm, Number of Teeth 11, Pinion at Rest -5mm, Power Rating 2.5kW, Suits Unit Make Valeo, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Dry, Clamp NO, Weight 4.789kg, Product Group 1 ROTATING ELECTRICAL, Part No. 438200, Brand VALEO, Description Valeo Starter Motor 12V 11Th CW, Flange Diameter 67mm, Mount Centres B 85mm, Mount Hole Diameter M10x1.5.

Valeo Starter Motor 12V 11Th CW. Part number 438200 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number 438200, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include CITROEN C4 GRAND PICASSO, CITROEN C4 GRAND PICASSO 2006, CITROEN C4 GRAND PICASSO 2007, CITROEN C4 GRAND PICASSO 2008, MITSUBISHI LANCER, MITSUBISHI LANCER 2007. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by matching part number 438200, 12V, 11 teeth, CW rotation, 5 hole mounting and the listed measurements against the vehicle and the original starter before ordering.

FAQ

Is this starter motor new or remanufactured?

It is listed as a new starter motor. For this listing, part number 438200 is the main reference point. Listed voltage is 12. Published fitment references include CITROEN C4 GRAND PICASSO, CITROEN C4 GRAND PICASSO 2006, CITROEN C4 GRAND PICASSO 2007. These details should still be checked against the original unit before ordering.

What is the voltage and rotation?

The starter is 12V and clockwise rotation (CW). For this listing, part number 438200 is the main reference point. Listed voltage is 12. Published fitment references include CITROEN C4 GRAND PICASSO, CITROEN C4 GRAND PICASSO 2006, CITROEN C4 GRAND PICASSO 2007. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

It has 11 teeth. For this listing, part number 438200 is the main reference point. Listed voltage is 12. Published fitment references include CITROEN C4 GRAND PICASSO, CITROEN C4 GRAND PICASSO 2006, CITROEN C4 GRAND PICASSO 2007. These details should still be checked against the original unit before ordering.

What is the power rating?

The stated power rating is 2.5kW. For this listing, part number 438200 is the main reference point. Listed voltage is 12. Published fitment references include CITROEN C4 GRAND PICASSO, CITROEN C4 GRAND PICASSO 2006, CITROEN C4 GRAND PICASSO 2007. These details should still be checked against the original unit before ordering.

What part number should I match?

The part number is 438200. For this listing, part number 438200 is the main reference point. Listed voltage is 12. Published fitment references include CITROEN C4 GRAND PICASSO, CITROEN C4 GRAND PICASSO 2006, CITROEN C4 GRAND PICASSO 2007. These details should still be checked against the original unit before ordering.

Which measurements are most important for checking fitment?

The key measurements listed are 121mm mount centres A, 85mm mount centres B and C, 67mm flange diameter, 237mm overall length, M10x1.5 mount hole diameter and a 29mm pinion diameter. For this listing, part number 438200 is the main reference point. Listed voltage is 12. Published fitment references include CITROEN C4 GRAND PICASSO, CITROEN C4 GRAND PICASSO 2006, CITROEN C4 GRAND PICASSO 2007. These details should still be checked against the original unit before ordering.
