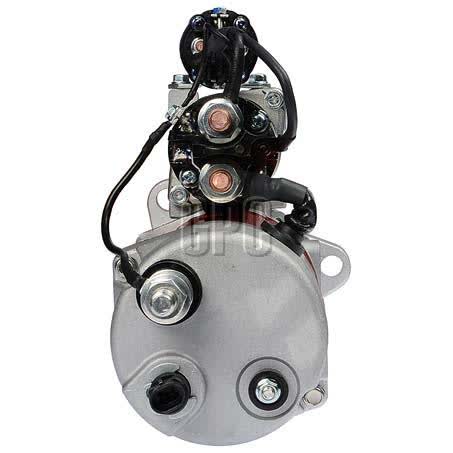

Delco Remy Starter Motor 12V 11 Tooth CW 39MT Part No. 8201063

The Delco Remy 39MT starter motor is a new 12V rotating electrical unit with clockwise rotation, 11 teeth, and part number 8201063. It is listed as a 3 hole starter mount with 126mm mount centres A, B and C, making the mounting pattern an important check before purchase.

This starter is rated at 7.3kW and has a flange diameter of 92mm, an overall length of 420mm, a 56mm pinion diameter, and a 48mm pinion at rest. It weighs 15.9kg, so it is a substantial commercial-duty component rather than a light passenger vehicle starter.

The unit suits Delco applications and is listed for wet or dry clutch use. It is backed by a one year warranty and includes Integrated Over Crank Protection (IOCP), described as a built-in circuit breaker that protects the starter from thermal damage, plus electrical soft-start.

For buyers comparing replacements, the key identifiers here are the Delco Remy brand, 39MT series, 12V rating, clockwise rotation, 11-tooth pinion, and part number 8201063. Matching those details against the original starter is the safest way to narrow the correct unit.

Key Features

• New Delco Remy starter motor
• 12V electrical system
• 39MT series
• 11-tooth pinion
• Clockwise rotation
• 3 hole mount style

Specifications

• Part No.: 8201063
• Power rating: 7.3kW
• Mount centres A / B / C: 126mm
• Starter mount type: 3 hole
• Flange diameter: 92mm
• Overall length: 420mm
• Pinion diameter: 56mm
• Pinion at rest: 48mm

Verified fitment/application references

• Atkinson F4870
• BCI Explorer, including 2011 application reference
• Case 8425, 9050B, 921, 921C, 921CXR, 9370, IH, IH 9150, IH 9170, IH 9180, IH 9250, IH 9260
• Caterpillar 910E, Agricultural Challenger 85C, 85D, 85E, 95E, CT Series, CT Series 2010
• Cummins ISC 8.3
• Ford 800-Series, 900-Series, 9000-Series, Bus, Cargo, CL, CLT, L-Series
• Freightliner Argosy, Century and Columbia application references across multiple years
• Grove AT745

Application and Buying Notes

Before ordering, confirm the part number 8201063 and compare the mounting pattern to your existing starter. This unit is a 3 hole mount with 126mm mount centres A, B and C, so the flange and bolt pattern need to line up exactly with the application you are replacing.

Also check the electrical and physical details that matter on heavy-duty starters: 12V voltage, 7.3kW power rating, clockwise rotation, 11 teeth, 56mm pinion diameter, 48mm pinion at rest, and 92mm flange diameter. These measurements help separate similar-looking starters that are not interchangeable.

The listed fitment references cover a wide range of truck, agricultural, and industrial applications, but the final decision should still be made from the starter already on the machine. Matching the 39MT series, Delco branding, and the physical dimensions is the most reliable way to avoid a misfit.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 8201063 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 126mm, Mount Centres C 126mm, Number of Teeth 11, Pinion at Rest 48mm, Power Rating 7.3kW, Series 39MT, Voltage 12.

Additional published details for cross-checking include Starter Mount Type 3 Hole, Weight 15.9kg, Product Group 1 ROTATING ELECTRICAL, Part No. 8201063, Brand DELCO REMY, Description Delco Remy Starter Motor 12V 11Th CW 39MT, Flange Diameter 92mm, Mount Centres B 126mm, Mount Hole Diameter 16, Overall Length 420mm.

Delco Remy Starter Motor 12V 11Th CW 39MT. Part number 8201063 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number 8201063, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include ATKINSON F4870, BCI EXPLORER, BCI EXPLORER 2011, CASE 8425, CASE 9050B, CASE 921. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is One Year. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm compatibility by matching part number 8201063, 39MT series, 12V voltage, clockwise rotation, 11 teeth, and the 3 hole mount with 126mm centres against the starter currently fitted to the machine.

FAQ

Is this starter motor new or remanufactured?

It is listed as new. For this listing, part number 8201063 is the main reference point. Listed voltage is 12. Published fitment references include ATKINSON F4870, BCI EXPLORER, BCI EXPLORER 2011. These details should still be checked against the original unit before ordering.

What voltage is the Delco Remy 39MT starter?

It is a 12V starter motor. For this listing, part number 8201063 is the main reference point. Listed voltage is 12. Published fitment references include ATKINSON F4870, BCI EXPLORER, BCI EXPLORER 2011. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion is listed with 11 teeth. For this listing, part number 8201063 is the main reference point. Listed voltage is 12. Published fitment references include ATKINSON F4870, BCI EXPLORER, BCI EXPLORER 2011. These details should still be checked against the original unit before ordering.

What is the rotation direction?

The starter rotates clockwise (CW). For this listing, part number 8201063 is the main reference point. Listed voltage is 12. Published fitment references include ATKINSON F4870, BCI EXPLORER, BCI EXPLORER 2011. These details should still be checked against the original unit before ordering.

What warranty is provided?

It is listed with a one year warranty. For this listing, part number 8201063 is the main reference point. Listed voltage is 12. Published fitment references include ATKINSON F4870, BCI EXPLORER, BCI EXPLORER 2011. These details should still be checked against the original unit before ordering.

What are the key mounting details to check before ordering?

Check the 3 hole starter mount, 126mm mount centres A, B and C, and the 92mm flange diameter, along with part number 8201063. For this listing, part number 8201063 is the main reference point. Listed voltage is 12. Published fitment references include ATKINSON F4870, BCI EXPLORER, BCI EXPLORER 2011. These details should still be checked against the original unit before ordering.
