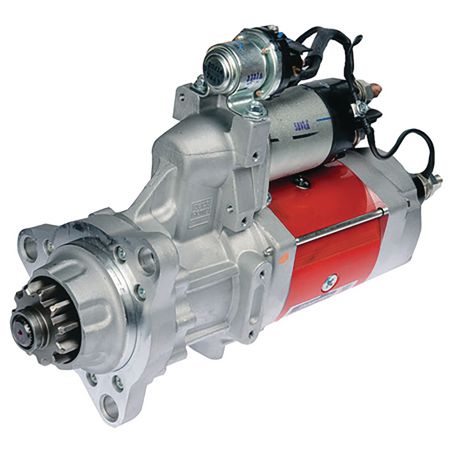

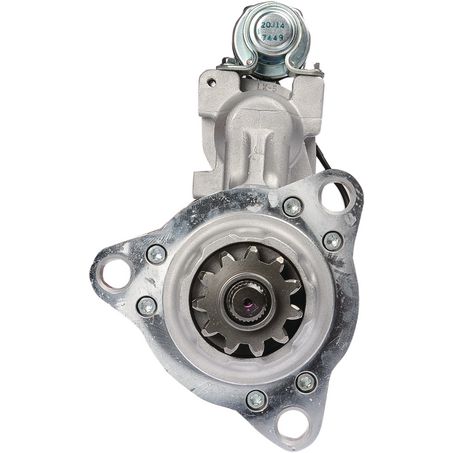

Delco Remy Starter Motor 12V 11 Tooth CW 39MT Part No. 8201063

Delco Remy starter motor, part number 8201063, is a new 12V unit in the 39MT series with 11 teeth and clockwise rotation. It is listed as a 3 hole starter mount type with a 92mm flange diameter, 126mm mount centres A, B and C, and a 16mm mount hole diameter.

This starter is rated at 7.3kW and has a wet or dry clutch application, with insulated return and a weight of 15.9kg. The overall length is 420mm, the pinion diameter is 56mm, and the pinion at rest measures 48mm.

The listed features include Integrated Over Crank Protection (IOCP), which is a built-in circuit breaker to help protect the starter from thermal damage, plus electrical soft-start. These are practical details to check when comparing against an existing starter motor, especially where the mounting pattern and electrical setup need to match closely.

Key Features

• Delco Remy 39MT starter motor
• Part number 8201063
• 12V, 7.3kW rating
• 11 tooth pinion
• Clockwise rotation
• New unit

Specifications

• Part No.: 8201063
• Brand: Delco Remy
• Type: Starter Motor
• Voltage: 12V
• Series: 39MT
• Power Rating: 7.3kW
• Rotation: CW
• Number of Teeth: 11

Application and Buying Notes

The safest way to confirm this starter is suitable is to match the part number 8201063 first, then check the mounting details against the old unit. The key dimensions here are the 3 hole starter mount, 92mm flange diameter, 126mm mount centres across A, B and C, and 16mm mount hole diameter.

The electrical and drive-side details also matter. This unit is a 12V, clockwise rotation starter with 11 teeth, a 56mm pinion diameter, and 48mm pinion at rest. If any of those points differ from the original starter, the replacement may not be suitable even if the unit looks similar from the outside.

The 7.3kW power rating, insulated return, and wet or dry clutch suitability are useful checks when comparing applications. The starter is a new Delco Remy 39MT unit, and it carries a one year warranty, so it is worth confirming the vehicle or machine application before ordering rather than relying on appearance alone.

If you are cross-checking an existing starter, compare overall length at 420mm, weight at 15.9kg, and the listed features such as IOCP and electrical soft-start. These details help narrow down whether the replacement is the correct configuration for your setup, especially where the original part has been changed before or where several starter variants have been used.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 8201063 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Part No. 8201063, Type STARTER MOTOR, Brand DELCO REMY, Unit of Measure EACH, Description Delco Remy Starter Motor 12V 11Th CW 39MT, Warranty One Year, Flange Diameter 92mm, Mount Centres A 126mm, Mount Centres B 126mm, Mount Centres C 126mm.

Additional published details for cross-checking include Mount Hole Diameter 16, Number of Teeth 11, Overall Length 420mm, Pinion at Rest 48mm, Pinion Diameter 56mm, Power Rating 7.3kW, Rotation CW, Series 39MT, Suits Unit Make Delco, Voltage 12.

Delco Remy Starter Motor 12V 11Th CW 39MT. Part number 8201063 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number 8201063, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Where no verified application list is available, the part number, mounting details, connector style, and published specifications should be used as the primary selection criteria.

In the absence of a verified fitment list, the safest approach is to compare the removed unit directly with the listed product details. That includes checking the housing style, pulley layout, regulator arrangement, and any visible identification numbers before supply is approved.

Compatibility note: Confirm fitment by matching part number 8201063 and comparing the 12V, 39MT, 11 tooth, clockwise, 3 hole mounting and dimensional details against the existing starter before purchase.

FAQ

What is the part number for this starter motor?

The part number is 8201063. For this listing, part number 8201063 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

It is a 12V starter motor. For this listing, part number 8201063 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 11 teeth. For this listing, part number 8201063 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.

What rotation is listed for this starter?

It is listed as clockwise rotation, shown as CW. For this listing, part number 8201063 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

It is listed as a new unit. For this listing, part number 8201063 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.

What warranty is provided?

The listed warranty is one year. For this listing, part number 8201063 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.
