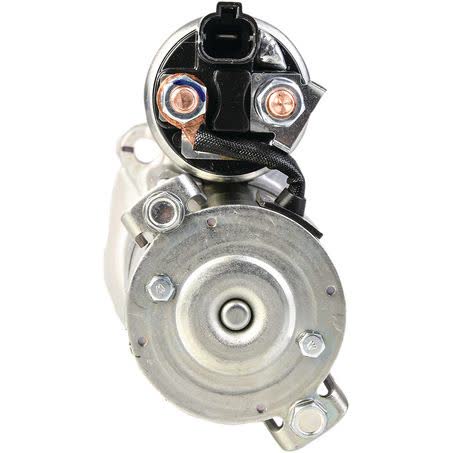

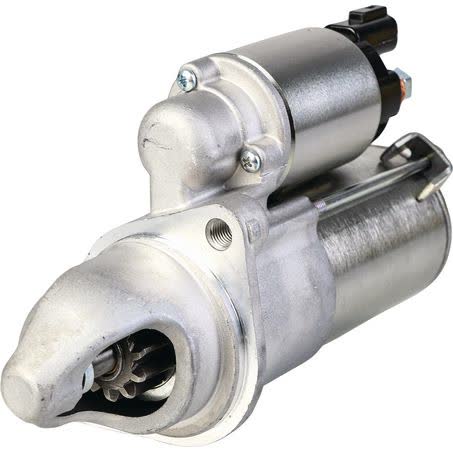

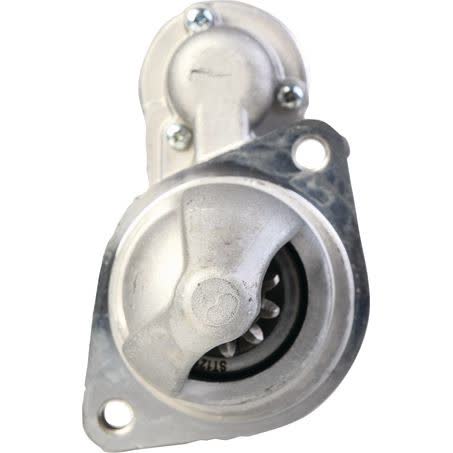

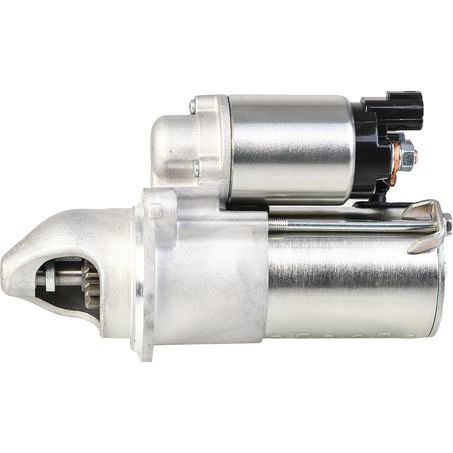

OEX Starter Motor 12V 11 Tooth CW Delco Style DXS505

The OEX DXS505 starter motor is a new 12V unit in Delco style with clockwise rotation and 11 teeth. It is listed as a 2 hole starter mount type, with a 94mm mount centres A measurement and a 70mm flange diameter, so the physical mounting details are clear before you compare it to the vehicle being serviced.

Key dimensions for checking the application include an overall length of 209mm, nose cone length of 68mm, pinion diameter of 34.5mm and pinion at rest of 27mm. The unit is rated at 1.2kW and weighs 2.92kg, which makes it important to compare both the fitment and the electrical requirement rather than relying on appearance alone.

This starter motor suits Delco applications and carries OEX part number DXS505. The notes state that it is interchangeable with an 8 tooth unit, and that OE number confirmation is recommended. That makes the part number and OE cross-check especially important when matching it to a vehicle.

Key Features

• 12V starter motor
• Clockwise rotation
• 11 tooth pinion
• Delco style unit
• New unit, not remanufactured
• Interchangeable with 8 tooth unit

Specifications

• Brand: OEX
• Part number: DXS505
• Type: Starter motor
• Voltage: 12V
• Power rating: 1.2kW
• Rotation: CW
• Number of teeth: 11
• Suits unit make: Delco

Fitment guidance

• Fitment data references Hyundai and Kia applications, including Hyundai i45, Hyundai iLoad / H-1, Hyundai iMax / H-1, Hyundai ix35, Hyundai Santa Fe and Hyundai Sonata.
• Fitment data also references Kia Cerato, Kia Cerato Koup, Kia Magentis, Kia Optima, Kia Sorento and Kia Sportage.
• Sample application coverage includes Hyundai i45 2011 to 2014 and Kia Cerato 2004 to 2014.
• Use the part number, OE number and the stated mounting measurements to confirm the correct application before ordering.

Application and Buying Notes

The most important checks for this starter motor are the part number DXS505, the 12V electrical rating, the 11 tooth pinion and the clockwise rotation. Those details need to line up with the vehicle's original starter before you order, particularly because the notes also mention interchangeability with an 8 tooth unit and recommend OE number confirmation.

Physical fit matters just as much as the electrical specification. Compare the 2 hole mount type, 94mm mount centres A, 70mm flange diameter, M10x1.25 mount hole diameter and 209mm overall length against the removed unit. If any of those dimensions differ, do not assume the starter will suit just because the engine family or brand looks familiar.

The listed 1.2kW power rating, Delco unit make and dry clutch note help narrow the match, but they do not replace a direct check of OE number and application details. If you are matching a Hyundai or Kia application, use the exact vehicle details and the original starter information rather than relying on a broad model name alone.

Because this is a new starter motor, it is suitable for buyers wanting a replacement unit rather than a remanufactured part. Even so, the warranty terms are split between 3 years for passenger use and 1 year for commercial use, so the intended vehicle use should be considered when planning the purchase.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS505 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 94mm, Nose Cone Length 68mm, Overall Length 209mm, Pinion Diameter 34.5mm, Rotation CW, Voltage 12, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Dry, Product Group 2 STARTER MOTORS, Part No. DXS505, Brand OEX, Description OEX Starter Motor 12V 11Th CW Delco Style - See Note, Flange Diameter 70mm, Mount Hole Diameter M10x1.25, Number of Teeth 11, Pinion at Rest 27mm.

OEX Starter Motor 12V 11Th CW Delco Style - See Note. Part number DXS505 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS505, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HYUNDAI I45, HYUNDAI I45 2011, HYUNDAI I45 2012, HYUNDAI I45 2013, KIA CERATO, KIA CERATO 2004. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm compatibility with the OE number, DXS505, and the listed mounting and electrical specifications before ordering. Do not rely on model name alone; compare the original starter's rotation, tooth count, dimensions and unit make to the details shown here.

FAQ

What voltage is this starter motor?

It is a 12V starter motor.

What is the part number?

The part number is DXS505.

What rotation does it have?

It has clockwise rotation (CW).

How many teeth does the pinion have?

The starter is listed with 11 teeth.

Is this a new or remanufactured unit?

It is listed as a new starter motor.

What should I check before buying?

Confirm the OE number, DXS505, plus the listed 12V rating, CW rotation, 11 tooth pinion, 2 hole mount type, 94mm mount centres A and the other stated dimensions against your original unit.
