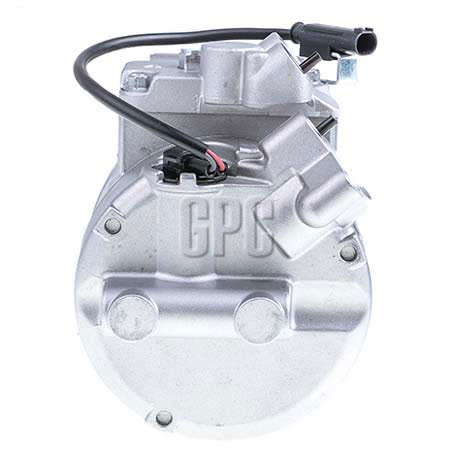

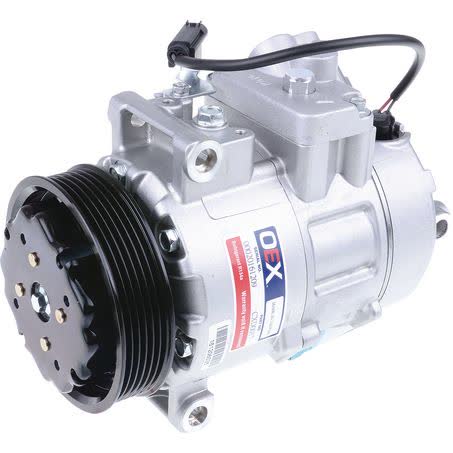

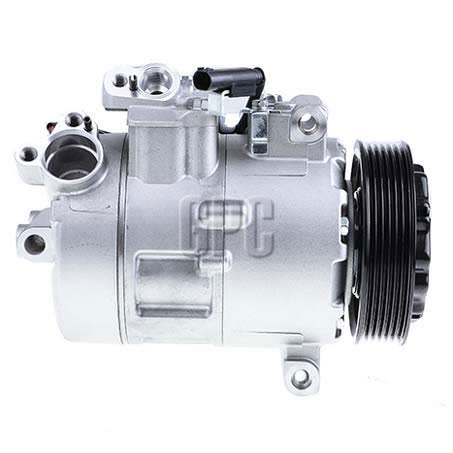

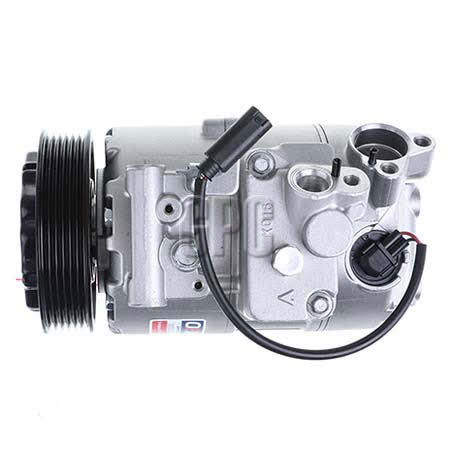

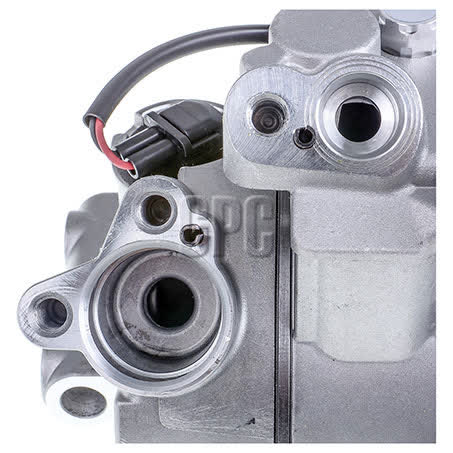

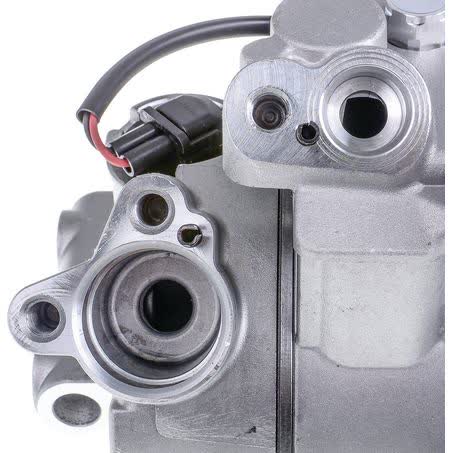

OEX Air Conditioning Compressor 12V Direct Mount Denso 7SEU17C Style CXD0017

This OEX air conditioning compressor is a 12V direct mount unit in Denso 7SEU17C style, supplied under part number CXD0017. It is listed with a 6 groove pulley, pad fitting type, 110mm clutch diameter and a 140ml oil capacity, with PAG46 oil noted.

It is intended for vehicles fitted with the relevant Denso-style application and is listed for BMW 525i E60 2.5L from 03/2003 to 12/2010, BMW 530i E60 3.0L from 02/2003 to 12/2010, and BMW Z4 E89 2.0L, 2.5L and 3.0L from 05/2009 onwards. Those application details matter, because compressor fitment depends on the exact vehicle, engine and mounting arrangement.

This compressor is sold as one each and carries a two year warranty. It weighs 7.5kg and does not include a dust cover. For a part like this, matching the part number, mounting style and pulley configuration is just as important as matching the vehicle model.

Key Features

• 12V air conditioning compressor
• Direct mount design
• Denso 7SEU17C style
• Pad fitting type
• 6 groove pulley
• 110mm clutch diameter

Specifications

• Brand: OEX
• Part number: CXD0017
• Product type: Air conditioning compressor
• Voltage: 12V
• Compressor mounting: Direct mount
• Series: 7SEU17C
• Suits unit make: Denso
• Pulley section: 6 groove

Listed vehicle applications

• BMW 525i E60 2.5L from 03/2003 to 12/2010
• BMW 530i E60 3.0L from 02/2003 to 12/2010
• BMW Z4 E89 2.0L, 2.5L and 3.0L from 05/2009 onwards

Application and Buying Notes

Before ordering, compare the part number CXD0017 with the original compressor and check that the vehicle uses a Denso 7SEU17C style direct mount setup. The listed 12V specification, 6 groove pulley and pad fitting type are the key details that need to line up with the vehicle already in the car.

The listed oil capacity is 140ml and the oil type is PAG46, so the replacement should be handled with care during installation and preparation. Matching oil type matters on air conditioning compressors, and the correct amount needs to be considered when the system is serviced or components are replaced.

This unit is listed for specific BMW 5 Series E60 and Z4 E89 applications only. Even where the model name appears to match, the engine size, build date range and compressor mounting arrangement still need to be confirmed against the existing part. That is the safest way to avoid ordering the wrong compressor.

The compressor weighs 7.5kg and is supplied without a dust cover, so inspect the existing lines, mounting points and related hardware before installation. If the old compressor has failed internally, the rest of the system should also be checked for contamination before the new unit goes in.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXD0017 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty Two Years, Compressor Mounting Direct Mount, Pulley Section 6 Groove, Suits Unit Make Denso, Note Oil type PAG46., Dust Cover Y/N No, Product Group 2 AC COMPONENTS.

Additional published details for cross-checking include Part No. CXD0017, Brand OEX, Description OEX Air Conditioning Compressor 12V Direct Mount Denso 7SEU17C Style, Clutch Diameter 110mm, Fitting Type Pad, Series 7SEU17C, Voltage 12, Oil Capacity 140ml, Weight 7.5kg, Product Group 1 COOLING.

OEX Air Conditioning Compressor 12V Direct Mount Denso 7SEU17C Style. Part number CXD0017 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXD0017, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment using part number CXD0017, the Denso 7SEU17C style direct mount arrangement, the 12V electrical specification, and the BMW application details listed above before purchase.

FAQ

What part number identifies this compressor?

The listed part number is CXD0017. For this listing, part number CXD0017 is the main reference point. Listed voltage is 12. Published fitment references include BMW 5, BMW 5 2003, BMW 5 2004. These details should still be checked against the original unit before ordering.

What voltage is this compressor?

It is a 12V air conditioning compressor. For this listing, part number CXD0017 is the main reference point. Listed voltage is 12. Published fitment references include BMW 5, BMW 5 2003, BMW 5 2004. These details should still be checked against the original unit before ordering.

What vehicles are listed for this part?

It is listed for BMW 525i E60 2.5L from 03/2003 to 12/2010, BMW 530i E60 3.0L from 02/2003 to 12/2010, and BMW Z4 E89 2.0L, 2.5L and 3.0L from 05/2009 onwards. For this listing, part number CXD0017 is the main reference point. Listed voltage is 12. Published fitment references include BMW 5, BMW 5 2003, BMW 5 2004. These details should still be checked against the original unit before ordering.

What type of mounting does it use?

It is a direct mount compressor with a pad fitting type. For this listing, part number CXD0017 is the main reference point. Listed voltage is 12. Published fitment references include BMW 5, BMW 5 2003, BMW 5 2004. These details should still be checked against the original unit before ordering.

What oil is noted for this compressor?

The note lists PAG46 oil, with an oil capacity of 140ml. For this listing, part number CXD0017 is the main reference point. Listed voltage is 12. Published fitment references include BMW 5, BMW 5 2003, BMW 5 2004. These details should still be checked against the original unit before ordering.

Does it come with a warranty?

Yes. The listed warranty is two years. For this listing, part number CXD0017 is the main reference point. Listed voltage is 12. Published fitment references include BMW 5, BMW 5 2003, BMW 5 2004. These details should still be checked against the original unit before ordering.
