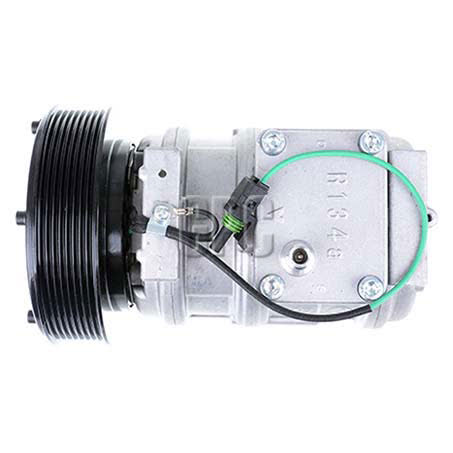

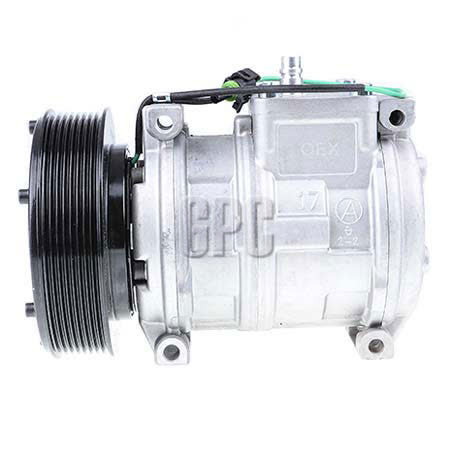

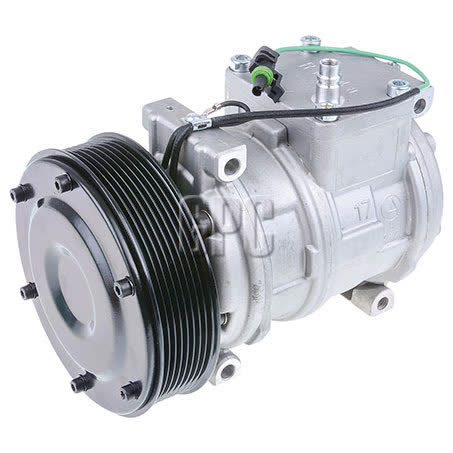

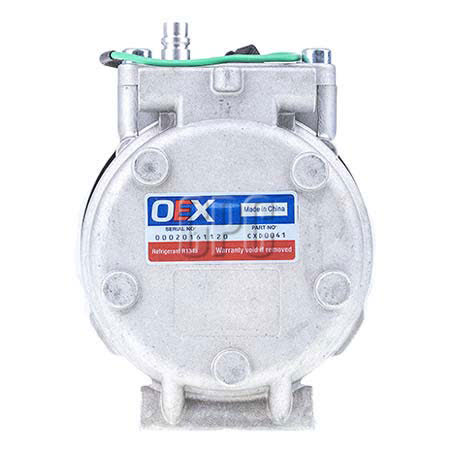

OEX Air Conditioning Compressor 24V Direct Mount Denso 10PA17C Style CXD0041

The OEX air conditioning compressor listed here is a 24V unit with direct mount compressor mounting, a pad fitting type, and an 8 groove pulley section. It is described as Denso 10PA17C style, suits Denso units, and carries part number CXD0041 with original equipment number AT168543.

Key mechanical details include a 145mm clutch diameter, 180ml oil capacity, and an 8kg weight. The compressor is supplied r conditioning compressor in each quantity, and the listed warranty is two years.

Fitment information supplied for this compressor includes John Deere Loader 444H 4045T 4.5L from 01/2001 onwards, Loader 444H LL 4.5L from 01/1997 onwards, and Tractor 755 3T72 0.9L from 01/1986 to 12/1998. These application details should be checked carefully against the compressor already fitted to the machine.

Key Features

• 24V air conditioning compressor
• Direct mount compressor mounting
• Denso 10PA17C style
• Suits Denso unit make
• Pad fitting type
• 8 groove pulley section

Specifications

• Voltage: 24
• Compressor mounting: Direct Mount
• Series: 10PA17C
• Fitting type: Pad
• Pulley section: 8 Groove
• Clutch diameter: 145mm
• Oil capacity: 180ml
• Weight: 8kg

Confirmed application details

• John Deere Loader 444H 4045T 4.5L from 01/2001 onwards
• John Deere Loader 444H LL 4.5L from 01/1997 onwards
• John Deere Tractor 755 3T72 0.9L from 01/1986 to 12/1998

Application and Buying Notes

Before ordering, compare the compressor already on the machine with the key identifiers here: part number CXD0041, original equipment number AT168543, 24V operation, and Denso 10PA17C style. Those details matter because air conditioning compressors are commonly matched by mounting pattern, pulley section, clutch size, and electrical system, not just by the machine brand alone.

This unit uses direct mount compressor mounting and a pad fitting type, so the physical layout needs to align with the existing setup. The 8 groove pulley section and 145mm clutch diameter are useful checkpoints when comparing against the old compressor, especially where brackets, belts, or drive alignment must remain unchanged.

Oil capacity is listed at 180ml, and the compressor weighs 8kg. Those figures are worth confirming during replacement planning because they help set expectations for handling and installation, and they can be useful when comparing like-for-like units from the same application family.

The application list supplied for this compressor is specific to certain John Deere machines and engine configurations, including Loader 444H 4045T 4.5L from 01/2001 onwards, Loader 444H LL 4.5L from 01/1997 onwards, and Tractor 755 3T72 0.9L from 01/1986 to 12/1998. If your machine differs in model, engine, date range, or compressor style, confirm the part number and mounting details before buying.

The two year warranty applies to the listed OEX compressor, but warranty coverage does not replace fitment checking. Make sure the compressor is suitable for your specific vehicle or equipment application, and compare all visible mounting and drive features before installation begins.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXD0041 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty Two Years, Compressor Mounting Direct Mount, Original Equipment Number AT168543, Series 10PA17C, Voltage 24, Oil Capacity 180ml, Weight 8kg, Product Group 1 COOLING.

Additional published details for cross-checking include Part No. CXD0041, Brand OEX, Description OEX Air Conditioning Compressor 24V Direct Mount Denso 10PA17C Style, Clutch Diameter 145mm, Fitting Type Pad, Pulley Section 8 Groove, Suits Unit Make Denso, Note 10PA17C, Dust Cover Y/N No.

OEX Air Conditioning Compressor 24V Direct Mount Denso 10PA17C Style. Part number CXD0041 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is 8 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXD0041, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include JOHN DEERE 1070D, JOHN DEERE 1070D 2000, JOHN DEERE 1270D, JOHN DEERE 1270D 1997. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is Two Years. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm compatibility by matching part number CXD0041, original equipment number AT168543, 24V electrical requirement, direct mount layout, pad fitting type, and the application details listed for your machine before purchase.

FAQ

What is the part number for this compressor?

The listed part number is CXD0041.

What voltage is this compressor?

It is a 24V air conditioning compressor.

What style or series is it?

It is described as Denso 10PA17C style and the series is 10PA17C.

What fitting and drive details are listed?

The compressor has a direct mount compressor mounting, a pad fitting type, and an 8 groove pulley section.

What vehicles or machines are listed as fitment?

Listed applications are John Deere Loader 444H 4045T 4.5L from 01/2001 onwards, Loader 444H LL 4.5L from 01/1997 onwards, and Tractor 755 3T72 0.9L from 01/1986 to 12/1998.

What warranty is supplied?

The listed warranty is two years.
