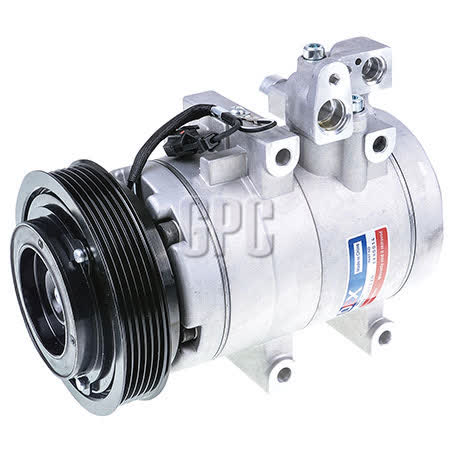

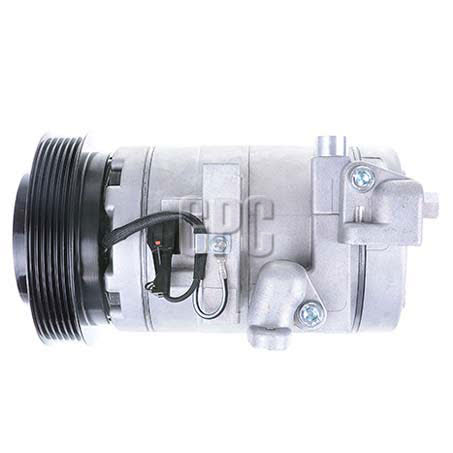

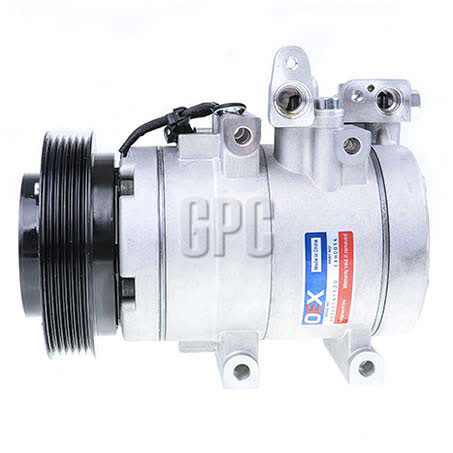

OEX Air Conditioning Compressor 12V Direct Mount Halla HS17 Style CXH0014

The OEX Air Conditioning Compressor is a 12V direct mount unit in Halla HS17 style, with part number CXH0014 and original equipment number 97701-3A651. It is listed with a 128mm clutch diameter, 6 groove pulley section and pad fitting type, so the mounting style and pulley layout can be checked against the vehicle before purchase.

This compressor is specified with an oil capacity of 180ml and a weight of 7.3kg. It is supplied as an each unit and is covered by a two year warranty, which gives a clear reference point for buyers comparing replacement compressors for climate control repair work.

Fitment information supplied for this unit includes Hyundai Santa Fe SM 2.7L from 11/2000 to 09/2004 and Hyundai Trajet FO 2.7L from 01/2000 to 12/2008. The product notes also identify it as HS17 style and suit unit make Halla, so matching the compressor style and application remains important.

Key Features

• 12V air conditioning compressor
• Direct mount design
• Halla HS17 style
• Pad fitting type
• 6 groove pulley section
• 128mm clutch diameter

Specifications

• Part No.: CXH0014
• Original Equipment Number: 97701-3A651
• Voltage: 12V
• Series: HS17
• Oil Capacity: 180ml
• Weight: 7.3kg
• Compressor Mounting: Direct Mount
• Clutch Diameter: 128mm

Verified Fitment

• Hyundai Santa Fe SM 2.7L, 11/2000 - 09/2004
• Hyundai Trajet FO 2.7L, 01/2000 - 12/2008

Application and Buying Notes

Before ordering, check the part number CXH0014 and the original equipment number 97701-3A651 against the unit being replaced. The compressor is a 12V direct mount Halla HS17 style unit, so the mounting pattern, compressor family and pulley arrangement need to line up with the vehicle’s existing setup.

The listed clutch diameter is 128mm and the pulley section is 6 groove. Those details matter when confirming the belt drive and front face of the compressor, especially where the vehicle has had previous air conditioning work and the existing component may not match the original specification.

Oil capacity is listed at 180ml and the unit weighs 7.3kg. That gives a practical reference for installation and handling, but it does not remove the need to confirm the exact application before fitment. Air conditioning parts should always be matched carefully, because a close-looking compressor can still differ in mounting or pulley details.

The supplied application data is specific rather than broad, so it is best to use the vehicle model, engine size and build date together with the part number. For this unit, the confirmed applications are Hyundai Santa Fe SM 2.7L from 11/2000 to 09/2004 and Hyundai Trajet FO 2.7L from 01/2000 to 12/2008.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXH0014 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty Two Years, Compressor Mounting Direct Mount, Original Equipment Number 97701-3A651, Series HS17, Voltage 12, Oil Capacity 180ml, Weight 7.3kg, Product Group 1 COOLING.

Additional published details for cross-checking include Part No. CXH0014, Brand OEX, Description OEX Air Conditioning Compressor 12V Direct Mount Halla HS17 Style, Clutch Diameter 128mm, Fitting Type Pad, Pulley Section 6 Groove, Suits Unit Make Halla, Note HS17 Style, Dust Cover Y/N No.

OEX Air Conditioning Compressor 12V Direct Mount Halla HS17 Style. Part number CXH0014 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXH0014, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HYUNDAI SANTA FE, HYUNDAI SANTA FE 2000, HYUNDAI SANTA FE 2001, HYUNDAI SANTA FE 2002, KIA OPTIMA, KIA OPTIMA 2004. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is Two Years. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment using part number CXH0014, OE number 97701-3A651, the 12V direct mount Halla HS17 style specification, and the listed vehicle application details before purchase. Do not rely on model name alone, as air conditioning compressors can vary by mounting style, pulley section and compressor family.

FAQ

What type of compressor is this?

It is an OEX air conditioning compressor, 12V, direct mount, Halla HS17 style, with part number CXH0014.

What original equipment number is listed?

The listed original equipment number is 97701-3A651.

Which vehicles are confirmed in the fitment data?

Confirmed fitment is listed for Hyundai Santa Fe SM 2.7L from 11/2000 to 09/2004 and Hyundai Trajet FO 2.7L from 01/2000 to 12/2008.

What pulley and clutch details are provided?

The compressor has a 128mm clutch diameter and a 6 groove pulley section.

Does this compressor come with a warranty?

Yes. It is listed with a two year warranty.

What should I check before ordering?

Check the part number CXH0014, OE number 97701-3A651, 12V direct mount Halla HS17 style specification, and the vehicle application details to confirm compatibility.
