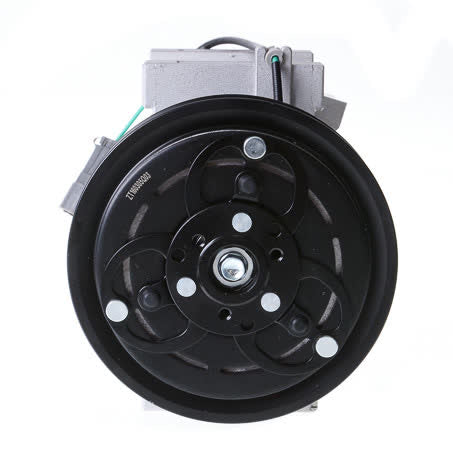

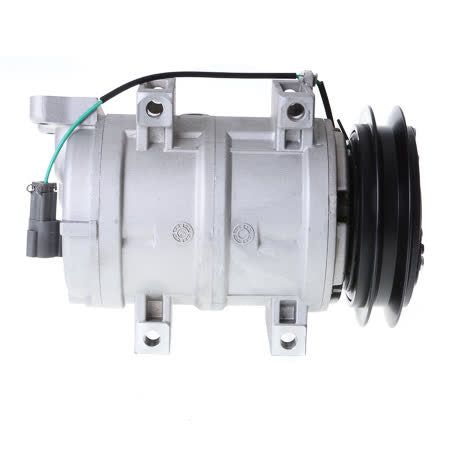

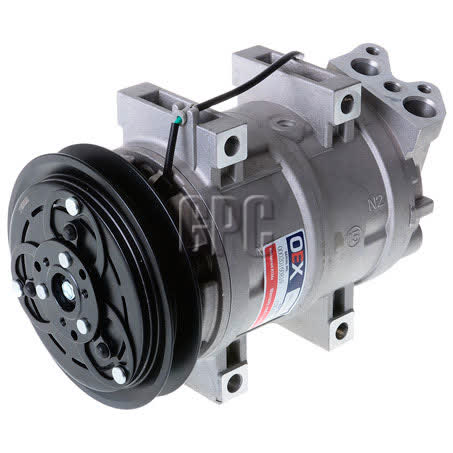

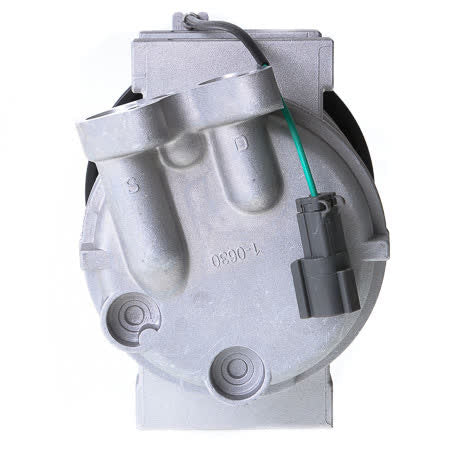

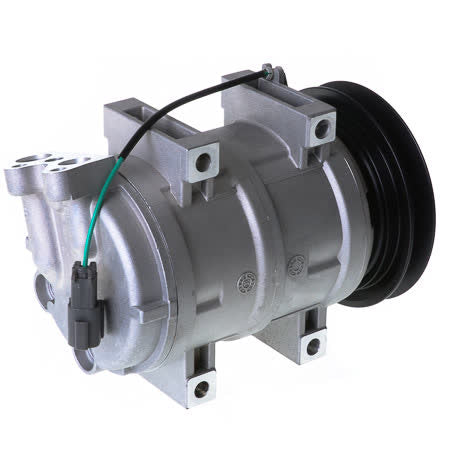

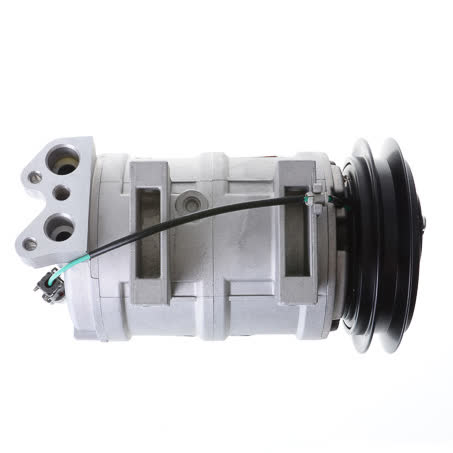

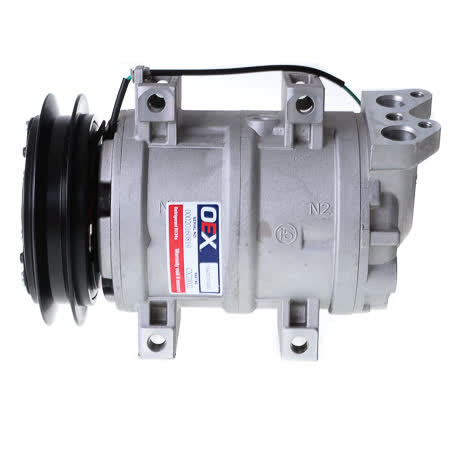

OEX Air Conditioning Compressor 24V Direct Mount Zexel DKS15CH Style CXZ0002

The OEX Air Conditioning Compressor is a 24V direct mount unit in Zexel DKS15CH style, supplied under part number CXZ0002. It is listed as a pad fitting type with a B section pulley, 138mm clutch diameter, and a 7.5kg weight, so the physical mounting and drive details should be checked carefully before purchase.

This compressor is specified for use with PAG46 oil and has an oil capacity of 150ml. It is sold as an each unit and carries a one year warranty. For air conditioning work, matching the voltage, mounting style, pulley section, and fitting type is just as important as matching the model family.

The listed application notes include Hitachi Dump Truck EH3000 51.7L from 01/2007 onwards, Excavator EX1200 Series from 01/2000 onwards, and Loader ZW220 with AH-6HK1 7.8L from 01/2007 onwards. Those application points should be treated as the starting reference, then confirmed against the machine’s existing compressor and part details.

As an OEX AC component in the cooling range, this compressor is intended for equipment that needs the 24V direct mount DKS15CH style configuration. If the machine already uses a Zexel-type unit, the part number CXZ0002 and the physical features below are the safest checks to compare before ordering.

Key Features

• 24V air conditioning compressor
• Direct mount design
• Zexel DKS15CH style

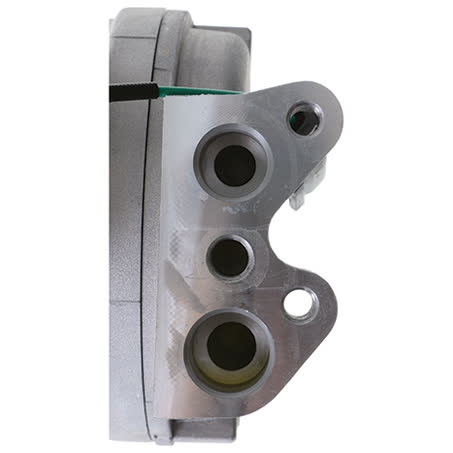

• Pad fitting type
• B section pulley
• 138mm clutch diameter

Specifications

• Brand: OEX
• Product type: Air conditioning compressor
• Part number: CXZ0002
• Series: DKS15CH
• Voltage: 24V
• Compressor mounting: Direct mount
• Fitting type: Pad
• Pulley section: B

Confirmed application details

• Hitachi Dump Truck EH3000 51.7L from 01/2007 onwards
• Hitachi Excavator EX1200 Series from 01/2000 onwards
• Hitachi Loader ZW220 with AH-6HK1 7.8L from 01/2007 onwards
• Fitment references also list Hitachi EH3000, Hitachi EX1200, Hitachi EX1200-5, Hitachi EX1200-5C, Hitachi EX1200-5D, Hitachi EX1200-6, Hitachi EX27U, Hitachi EX35U, Hitachi ZX200, Hitachi ZX27U, Hitachi ZX27U-2, Hitachi ZX27U-3, and Hitachi ZX330/LC
• Additional listed makes include Iseki, John Deere, and Komatsu, with sample applications such as Iseki SX75, John Deere 135C, John Deere 200C LC, John Deere 225C LC, John Deere 75C, Komatsu PC100-5/6, Komatsu PC1100-6, Komatsu PC1100SP-6, Komatsu PC120, Komatsu PC1250-7, Komatsu PC1250-8, Komatsu PC1250SP-7, and Komatsu PC1250SP-8

Application and Buying Notes

Before ordering, compare the existing compressor against part number CXZ0002 and the DKS15CH style designation. The critical checks here are 24V operation, direct mount configuration, pad fitting type, B section pulley, and the 138mm clutch diameter, because a mismatch in any of those areas can stop the compressor from fitting correctly.

The oil requirement is PAG46, with an oil capacity of 150ml. That matters when replacing an air conditioning compressor, because the correct oil type and quantity are part of the installation process and should be matched to the system requirements for the machine.

The supplied application details point to specific Hitachi machines, including EH3000, EX1200 Series, and ZW220, with date ranges from 01/2000 and 01/2007 depending on the application. If your equipment is outside those stated details, or if the machine has been modified, verify the existing unit before ordering.

Fitment information also shows broader make coverage across Hitachi, Iseki, John Deere, and Komatsu. Even so, the safest approach is to confirm the compressor mounting face, clutch dimensions, pulley section, and the current part number on the unit already fitted to the machine.

This compressor weighs 7.5kg and is supplied without a dust cover. Those are useful practical checks when comparing against a removed unit or planning freight and installation handling, especially where access around the front of the engine or accessory drive is tight.

A one year warranty is listed, but warranty cover does not replace the need to confirm compatibility. Air conditioning compressors are best matched by physical dimensions, mounting type, voltage, and the system’s oil specification, then installed according to the machine’s service requirements.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXZ0002 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Compressor Mounting Direct Mount, Pulley Section B, Suits Unit Make Zexel, Note Oil type PAG46., Dust Cover Y/N No, Product Group 2 AC COMPONENTS.

Additional published details for cross-checking include Part No. CXZ0002, Brand OEX, Description OEX Air Conditioning Compressor 24V Direct Mount Zexel DKS15CH Style, Clutch Diameter 138mm, Fitting Type Pad, Series DKS15CH, Voltage 24, Oil Capacity 150ml, Weight 7.5kg, Product Group 1 COOLING.

OEX Air Conditioning Compressor 24V Direct Mount Zexel DKS15CH Style. Part number CXZ0002 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Compatibility note: Please confirm fitment using part number CXZ0002, the 24V direct mount DKS15CH style specification, the pad fitting type, and the 138mm clutch diameter against the compressor currently fitted to your machine.

FAQ

What is the part number for this compressor?

The part number is CXZ0002.

What voltage does this compressor use?

It is a 24V air conditioning compressor.

What mounting style does it have?

It is specified as a direct mount compressor with a pad fitting type.

What oil should be used with this compressor?

The listed oil type is PAG46, and the oil capacity is 150ml.

Which machines are listed in the application details?

The supplied application details include Hitachi EH3000 51.7L from 01/2007 onwards, Hitachi EX1200 Series from 01/2000 onwards, and Hitachi ZW220 with AH-6HK1 7.8L from 01/2007 onwards.

Does it come with a warranty?

Yes. A one year warranty is listed.
