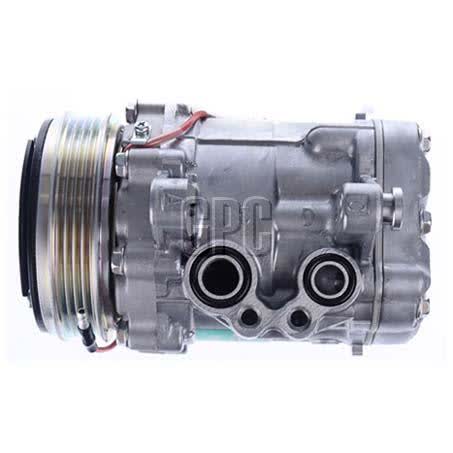

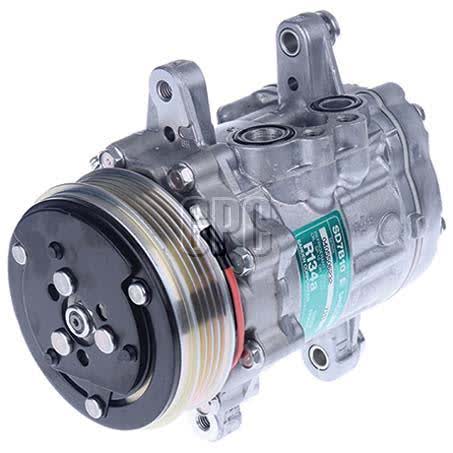

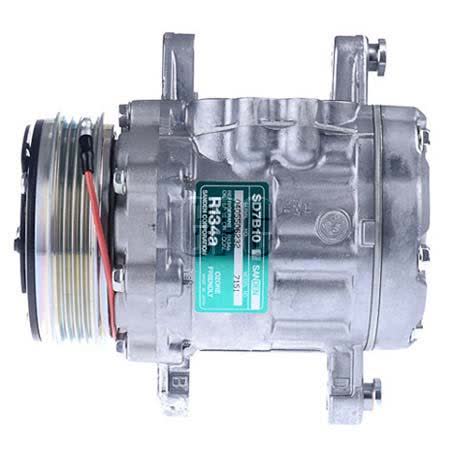

Sanden Air Conditioning Compressor 12V Ear Mount SD7B10 CXS7171

The Sanden Air Conditioning Compressor is a 12V ear mount unit from the SD7B10 series, supplied under part number CXS7171. It is listed with a 100mm clutch diameter, 4 groove pulley section, PB head, and vertical special pad fitting type, so the mounting and pulley details should be checked carefully before purchase.

This compressor is identified as a universal SD7B10 12V 4PV 100MM VTO ALT/M unit and is branded Sanden. The original equipment number shown is 7171, and the compressor uses a steel armature with an oil capacity of 100ml. Those are useful matching points when comparing against a removed unit or existing vehicle setup.

The listed specifications also note no dust cover, a gauge line of 39.44mm, and a weight of 4.44kg. The note advises O rings to suit ORX058 and ORX059, with oil type SP 10, which is important if you are replacing a compressor in a system that has been opened or serviced previously.

Key Features

• Sanden SD7B10 series compressor
• 12V operation
• Ear mount compressor mounting
• 100mm clutch diameter
• 4 groove pulley section

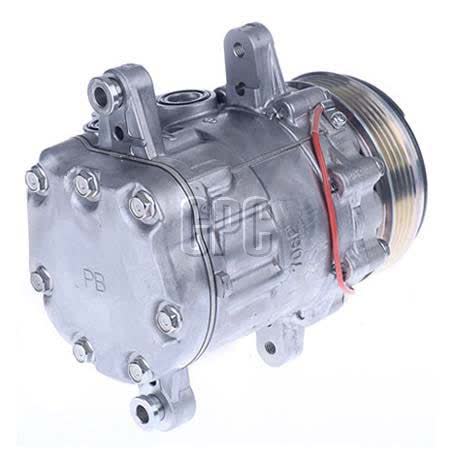

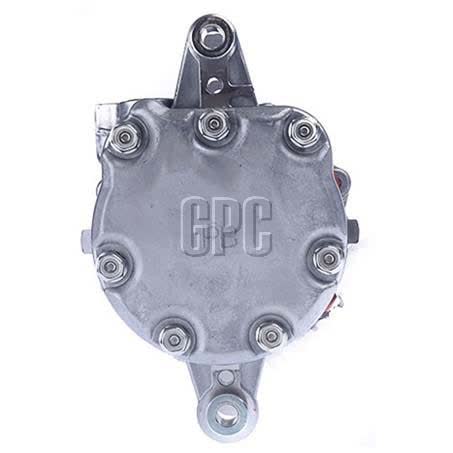

• PB head

Specifications

• Brand: Sanden
• Product type: Air conditioning compressor
• Series: SD7B10
• Voltage: 12
• Compressor mounting: Ear Mount
• Clutch diameter: 100mm
• Pulley section: 4 Groove
• Head code: PB Head

Application and Buying Notes

Check the part number CXS7171 against the compressor being replaced, along with the original equipment number 7171 where applicable. The SD7B10 series, 12V rating, ear mount style, PB head, and 100mm clutch diameter all need to line up with the existing application before installation can proceed.

The pulley section is 4 groove, so belt alignment and pulley match are key checks. The fitting type is listed as vertical special pad, which means mounting shape and hose arrangement should be confirmed against the vehicle setup rather than relying on the compressor series alone.

The compressor weight is 4.44kg and there is no dust cover listed. Those details can help when comparing the part in hand to the existing unit, especially if the old compressor is still available for visual confirmation of mounting, head style, and pulley layout.

Because fitment data is not supplied for specific vehicle makes or models, the safest approach is to match the part number, mounting style, voltage, clutch diameter, pulley grooves, head code, and oil details before ordering. If any of those points differ, the compressor may not suit the application.

A one year warranty is listed, which is useful for purchase confidence, but warranty coverage does not replace the need to confirm compatibility. Correct identification of the existing compressor remains the best way to avoid delays, returns, or incorrect installation work.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS7171 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Compressor Mounting Ear Mount, Original Equipment Number 7171, Series SD7B10, Voltage 12, Armature Type Steel Armature, Oil Capacity 100ml, Head Code PB Head.

Additional published details for cross-checking include Product Group 2 AC COMPONENTS, Part No. CXS7171, Brand SANDEN, Description Sanden Air Conditioning Compressor 12V Ear Mount SD7B10, Clutch Diameter 100mm, Fitting Type Vertical Special Pad, Pulley Section 4 Groove, Suits Unit Make Sanden, Note O Rings to suit ORX058 & ORX059 . Oil Type SP 10.

Sanden Air Conditioning Compressor 12V Ear Mount SD7B10. Part number CXS7171 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is 4 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXS7171, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Where no verified application list is available, the part number, mounting details, connector style, and published specifications should be used as the primary selection criteria.

In the absence of a verified fitment list, the safest approach is to compare the removed unit directly with the listed product details. That includes checking the housing style, pulley layout, regulator arrangement, and any visible identification numbers before supply is approved.

The listed warranty is One Year. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment by matching part number CXS7171, original equipment number 7171, SD7B10 series, 12V voltage, ear mount style, 100mm clutch diameter, 4 groove pulley section, PB head, and the listed oil and O ring notes before purchasing.

FAQ

Is this compressor 12V?

Yes. The listed voltage is 12V.

What is the part number?

The part number listed is CXS7171.

Does this compressor have fitment listed for specific vehicles?

No specific vehicle makes or models are supplied here. Fitment should be confirmed by part number, original equipment number 7171, mounting style, and the other listed compressor details.

What type of mounting does it use?

It is listed as an ear mount compressor with a vertical special pad fitting type.

What pulley setup does it have?

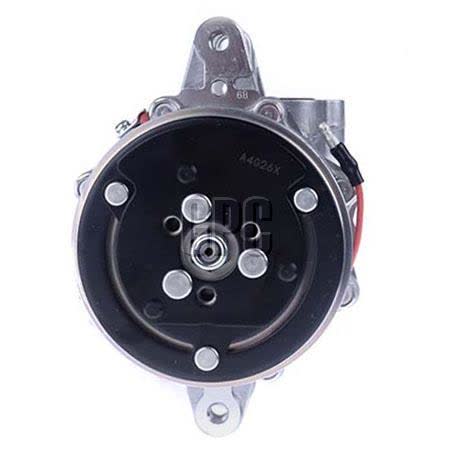

The compressor has a 4 groove pulley section and a 100mm clutch diameter.

What oil and seal notes are provided?

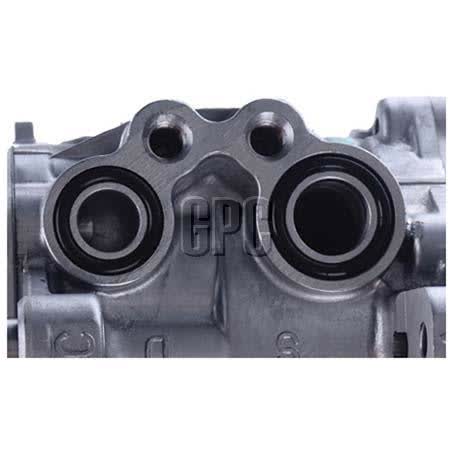

The notes state oil type SP 10 and O rings to suit ORX058 and ORX059.
