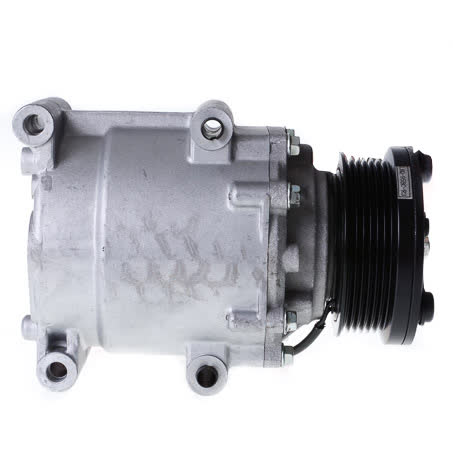

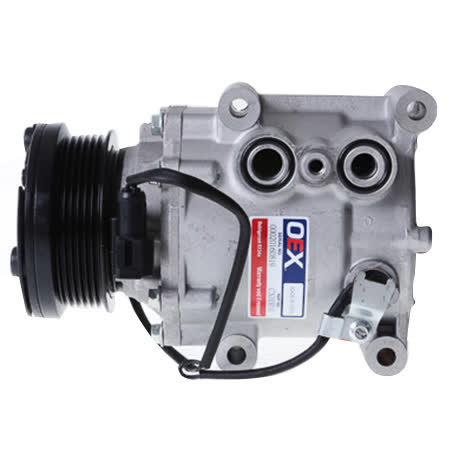

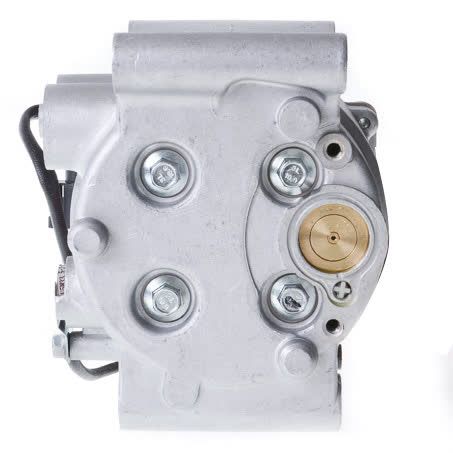

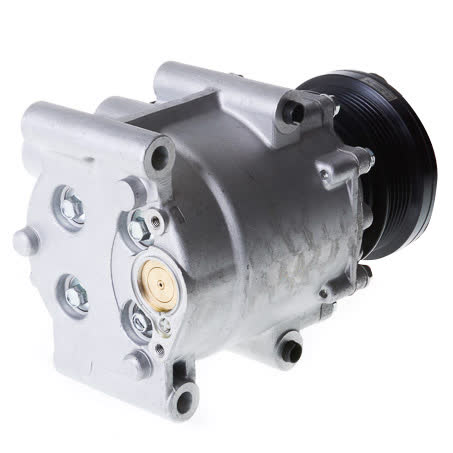

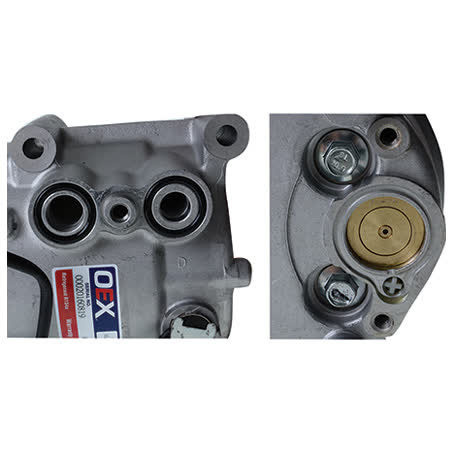

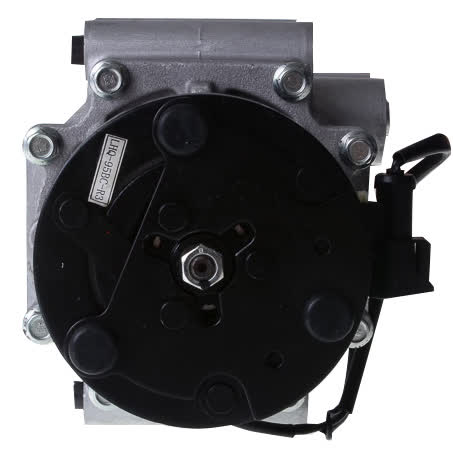

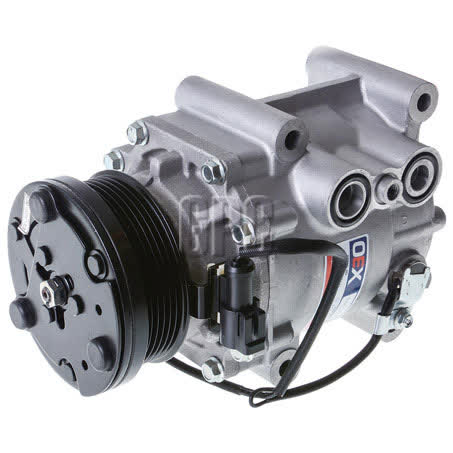

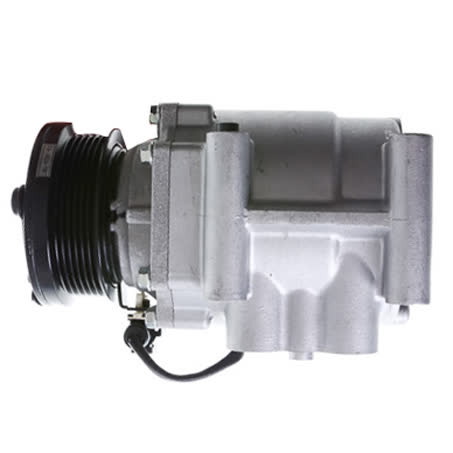

OEX Air Conditioning Compressor 12V Direct Mount Visteon 90-V Style CXH0010

The OEX air conditioning compressor CXH0010 is a 12V direct mount unit built for Visteon 90-V style applications. It uses a 6 groove pulley, a 95mm clutch diameter and a pad fitting type, so it is important to match the compressor style and mounting arrangement before ordering.

This compressor is listed with a two year warranty and an oil capacity of 180ml. The specified oil type is PAG46, and the note calls for O Ring to suit ORX017 x 2. Those details matter when replacing a compressor, because the mounting, sealing and lubricating requirements need to match the vehicle application exactly.

As an OEX AC component, this unit is identified as part number CXH0010 and is supplied as each. It is described as a direct mount Visteon 90-V style compressor, with no dust cover, so the physical configuration should be checked against the original unit already fitted to the vehicle.

Key Features

• 12V air conditioning compressor
• Direct mount design
• Visteon 90-V style
• 6 groove pulley
• 95mm clutch diameter
• Pad fitting type

Specifications

• Brand: OEX
• Part number: CXH0010
• Product type: Air conditioning compressor
• Voltage: 12V
• Compressor mounting: Direct mount
• Series: 90-V
• Suits unit make: Visteon
• Pulley section: 6 groove

Verified fitment details

• Ford Fiesta WP, WQ and WT 1.6L Duratec, 12/2003 - 08/2013
• Ford Focus LR 1.8L and 2.0L, 01/1999 - 04/2005

Application and Buying Notes

Before ordering, compare the vehicle’s existing compressor against the CXH0010 details: 12V operation, direct mount style, Visteon 90-V series, 6 groove pulley and 95mm clutch diameter. Those are the key physical and electrical checkpoints that help confirm whether the replacement matches the original setup.

The listed fitment covers Ford Fiesta WP, WQ and WT 1.6L Duratec from 12/2003 to 08/2013, and Ford Focus LR 1.8L and 2.0L from 01/1999 to 04/2005. If the vehicle is outside those ranges, or if the compressor fitted now differs in mounting or pulley arrangement, the part should be checked carefully before purchase.

This compressor is specified with PAG46 oil and an oil capacity of 180ml. The note also mentions ORX017 x 2 O rings. When replacing an air conditioning compressor, these service details are worth confirming because correct sealing and lubricant selection are part of a proper installation.

The compressor is listed without a dust cover and with a pad fitting type, so the surrounding hardware and hose connection arrangement need to suit that configuration. The part is supplied as each, and the weight is 6.9kg, which can be useful when comparing to the original unit or arranging handling and freight.

If the vehicle has had a previous compressor replacement, the safest approach is to match the part number CXH0010 and compare the old unit’s mounting face, pulley groove count and clutch size. Small differences in AC compressor style can stop the part from lining up correctly even when the vehicle model appears similar.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXH0010 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty Two Years, Compressor Mounting Direct Mount, Pulley Section 6 Groove, Suits Unit Make Visteon, Note O Ring to suit ORX017 x 2. Oil type PAG46., Dust Cover Y/N No, Product Group 2 AC COMPONENTS.

Additional published details for cross-checking include Part No. CXH0010, Brand OEX, Description OEX Air Conditioning Compressor 12V Direct Mount Visteon 90-V Style, Clutch Diameter 95mm, Fitting Type Pad, Series 90-V, Voltage 12, Oil Capacity 180ml, Weight 6.9kg, Product Group 1 COOLING.

OEX Air Conditioning Compressor 12V Direct Mount Visteon 90-V Style. Part number CXH0010 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXH0010, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FORD FIESTA, FORD FIESTA 2004, FORD FIESTA 2005, FORD FIESTA 2006. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment with the part number CXH0010, the Visteon 90-V direct mount configuration, and the vehicle’s existing compressor details before ordering. Vehicle model, engine and build date should be checked against the listed applications.

FAQ

What is the part number for this compressor?

The part number is CXH0010.

What vehicles are listed for this compressor?

Listed fitment is Ford Fiesta WP, WQ and WT 1.6L Duratec from 12/2003 to 08/2013, and Ford Focus LR 1.8L and 2.0L from 01/1999 to 04/2005.

What type of compressor is it?

It is an OEX air conditioning compressor, 12V, direct mount, Visteon 90-V style.

What pulley and clutch details are supplied?

The compressor has a 6 groove pulley section and a 95mm clutch diameter.

What oil information is provided?

The listed oil type is PAG46 and the oil capacity is 180ml. The note also specifies O Ring to suit ORX017 x 2.

Does it come with a dust cover?

No, the specification lists dust cover as No.
