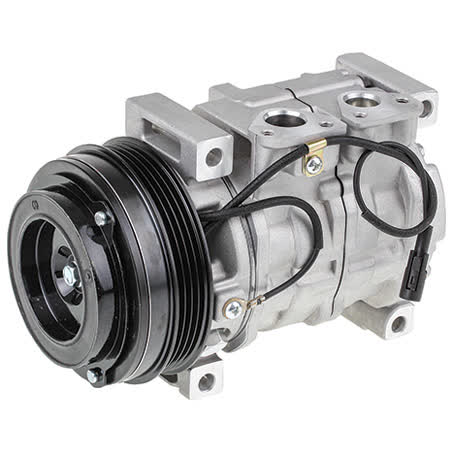

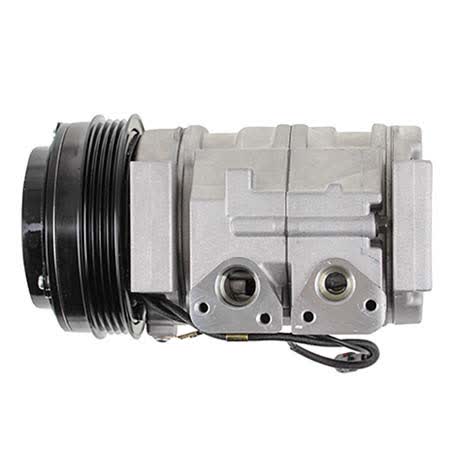

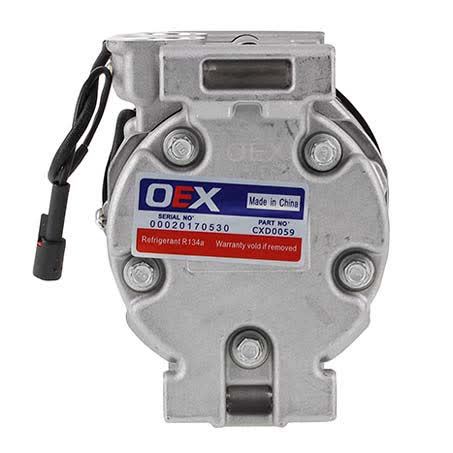

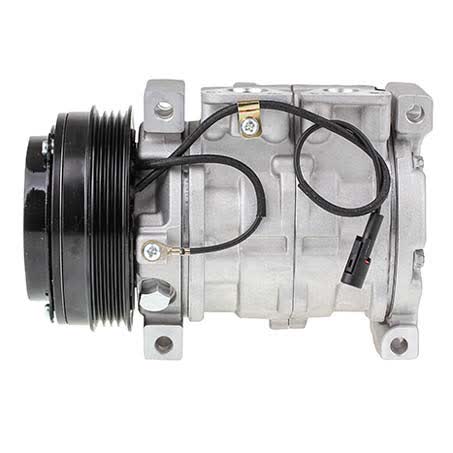

OEX Air Conditioning Compressor 12V Direct Mount Denso 10S13C Style CXD0059

The OEX air conditioning compressor is a 12V direct mount unit in Denso 10S13C style, part number CXD0059. It is listed with original equipment number 95200-65DA0 and uses a pad fitting type with a 4 groove pulley section and 115mm clutch diameter.

This compressor is specified for Suzuki applications including Baleno 1.8L from 03/1996 to 01/2002 and Liana RA51 / RC51 1.8L from 02/2004 to 11/2007. If you are comparing compressors, these application details matter as much as the mounting style and pulley setup.

It is supplied as an each item and has a listed weight of 5.7kg with 130ml oil capacity. The unit is described as suitable for Denso system make, which makes the part number, mounting type, and application range important checkpoints before ordering.

Key Features

• 12V air conditioning compressor
• Direct mount design
• Denso 10S13C style
• Pad fitting type
• 4 groove pulley section
• 115mm clutch diameter

Specifications

• Brand: OEX
• Part number: CXD0059
• Original equipment number: 95200-65DA0
• Product type: air conditioning compressor
• Voltage: 12V
• Compressor mounting: direct mount
• Series: 10S13C
• Suits unit make: Denso

Verified fitment applications

• Suzuki Baleno 1.8L, 03/1996 to 01/2002
• Suzuki Liana RA51 / RC51 1.8L, 02/2004 to 11/2007

Application and Buying Notes

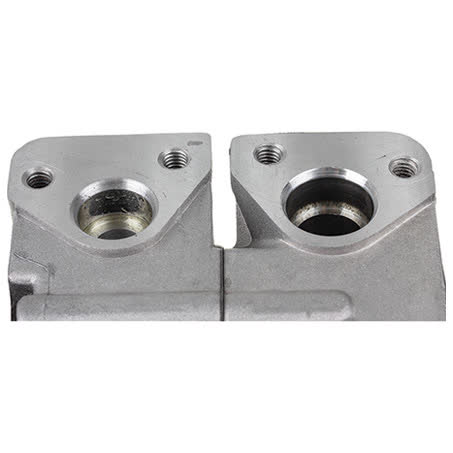

When replacing an air conditioning compressor, the most reliable checks are the part number CXD0059, the original equipment number 95200-65DA0, and the physical details of the unit. This compressor is a 12V direct mount Denso 10S13C style unit with a pad fitting type, so the mounting arrangement and hose connection style need to match the vehicle already fitted.

The pulley section is listed as 4 groove and the clutch diameter is 115mm. Those dimensions are important because a compressor can look similar at a glance while still being wrong for the drive belt layout or clutch setup. Confirm the belt groove count and clutch size against the vehicle before fitting.

The listed oil capacity is 130ml, and the unit weight is 5.7kg. These details can help when comparing a replacement against the removed compressor, especially if the old unit has been changed before or if you are cross-checking against other Denso-style compressors.

Fitment is stated for Suzuki Baleno 1.8L from 03/1996 to 01/2002 and Suzuki Liana RA51 / RC51 1.8L from 02/2004 to 11/2007. Even with those application details, it is still wise to confirm the exact vehicle build and the existing compressor identification before ordering, because air conditioning parts are sensitive to mounting and pulley differences.

This compressor carries a two year warranty, which is useful for purchase confidence, but it does not replace a fitment check. A compressor should only be ordered once the part number, mounting style, voltage, pulley section, and application range have all been confirmed against the vehicle.

If you are matching an existing unit, compare the OEX part number CXD0059, the OE number 95200-65DA0, and the Denso 10S13C style together. Using all three checks reduces the chance of ordering the wrong compressor for a vehicle that has had previous repairs or non-original components installed.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXD0059 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty Two Years, Compressor Mounting Direct Mount, Original Equipment Number 95200-65DA0, Series 10S13C, Voltage 12, Dust Cover Y/N No, Product Group 2 AC COMPONENTS.

Additional published details for cross-checking include Part No. CXD0059, Brand OEX, Description OEX Air Conditioning Compressor 12V Direct Mount Denso 10S13C Style, Clutch Diameter 115mm, Fitting Type Pad, Pulley Section 4 Groove, Suits Unit Make Denso, Oil Capacity 130ml, Weight 5.7kg, Product Group 1 COOLING.

OEX Air Conditioning Compressor 12V Direct Mount Denso 10S13C Style. Part number CXD0059 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is 4 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXD0059, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include SUZUKI BALENO, SUZUKI BALENO 1996, SUZUKI BALENO 1997, SUZUKI BALENO 1998. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment using part number CXD0059, OE number 95200-65DA0, the 12V direct mount Denso 10S13C style, and the listed Suzuki Baleno and Suzuki Liana applications before purchase.

FAQ

What vehicles is this compressor listed to suit?

It is listed for Suzuki Baleno 1.8L from 03/1996 to 01/2002 and Suzuki Liana RA51 / RC51 1.8L from 02/2004 to 11/2007.

What is the part number?

The part number is CXD0059.

What original equipment number is shown?

The original equipment number listed is 95200-65DA0.

What are the key mounting and pulley details?

It is a direct mount compressor with a pad fitting type, 4 groove pulley section, and 115mm clutch diameter.

Is this a 12V compressor?

Yes. The listed voltage is 12V.

What warranty is listed?

The listed warranty is two years.
