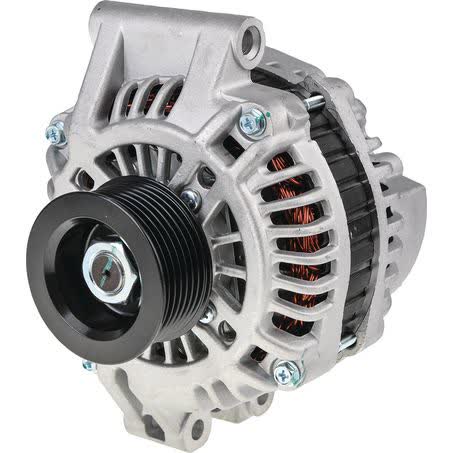

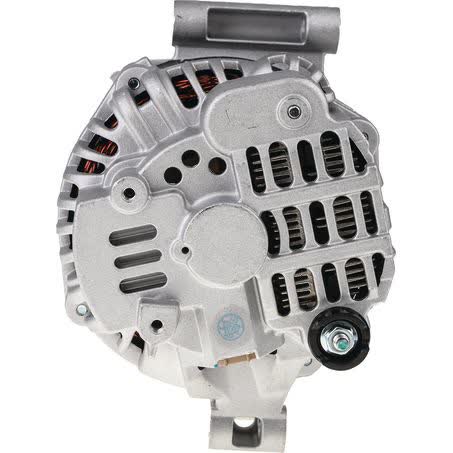

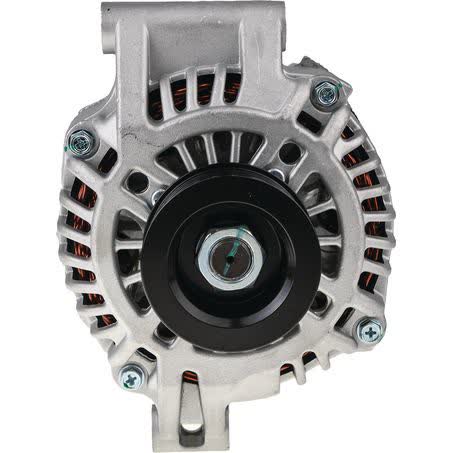

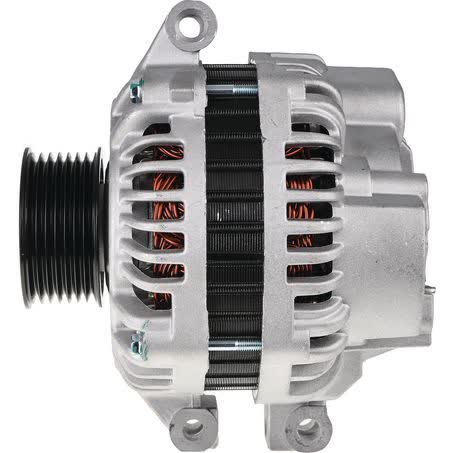

OEX Alternator 12V 90A Denso Style DXA568

The OEX Alternator DXA568 is a new 12V, 90A alternator built in a Denso style configuration for applications that use a pad mount and Denso unit make. It uses an internal regulator and a 7 groove pulley with a 60mm outside diameter, so the pulley and mounting arrangement should be checked carefully against the vehicle before purchase.

Key mounting measurements for this unit include 47mm inside mounting legs, 161mm mount centre to centre, an 8.5mm pivot hole diameter and a 9mm adjusting hole diameter. Those dimensions are important on Denso-style charging systems, where the physical mount and pulley alignment need to match the existing alternator setup.

This alternator is listed as part number DXA568 and pin code IR43, with a weight of 5.24kg. It is covered by a 3 year passenger / 1 year commercial warranty, which gives a clear warranty basis for private and trade use, but it still needs to be matched to the correct application before fitting.

Key Features

• OEX new alternator, not remanufactured
• 12V charging system
• 90A power rating
• Denso style unit
• Internal regulator
• 7 groove pulley, 60mm outside diameter

Specifications

• Brand: OEX
• Product type: Alternator
• Part No.: DXA568
• Voltage: 12
• Power Rating (Amp): 90
• Regulator Type: Internal
• Suits Unit Make: Denso
• Alternator Mount: Pad

Confirmed fitment references

• Honda CR-V
• Honda CR-V 2001
• Honda CR-V 2002
• Honda CR-V 2003
• Honda CR-V 2004
• Honda CR-V 2005
• Honda CR-V 2006
• Honda CR-V 2007

Application and Buying Notes

Before ordering, match the part number DXA568 and check that your existing alternator is a Denso-style, pad mount unit with the same mounting dimensions: 47mm inside mounting legs, 161mm mount centre to centre, 8.5mm pivot hole and 9mm adjusting hole. Those figures are the most practical checks for confirming whether this alternator will physically suit the vehicle.

The pulley specification also matters. This unit uses a 7 groove pulley with a 60mm outside diameter, so the belt profile and pulley size need to align with the vehicle’s charging system. If the belt arrangement or pulley count differs, the alternator may not be suitable even if the electrical rating appears close.

The electrical output is 12V at 90A, which is a useful guide when replacing an original alternator with the same style and output. It is still important to compare the existing unit’s regulator arrangement, mount type and connector details on the vehicle, because alternator fitment often depends on the complete assembly rather than one specification alone.

OEX states that its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, and that production is sourced from ISO9001 certified factories. Even so, the safest buying approach is to confirm the application against the vehicle already fitted, especially on Honda CR-V and Honda Integra references where changes can occur across build dates and equipment levels.

For workshop or trade use, the 5.24kg weight and new-unit construction are worth noting when handling the part and comparing it with a removed alternator. Warranty coverage is 3 years for passenger use and 1 year for commercial use, so the intended use of the vehicle should be kept in mind when assessing the purchase.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXA568 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 47mm, Pivot Hole Diameter 8.5, Pulley Outside Diameter 60mm, Regulator Type Internal, Voltage 12, Mount Cnt to Cnt 161mm, Weight 5.24kg.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. DXA568, Brand OEX, Description OEX Alternator 12V 90A Denso Style, Adjusting Hole Diameter 9, Pin Code IR43, Power Rating (Amp) 90, Pulley Section 7 Groove, Suits Unit Make Denso, Alternator Mount Pad.

OEX Alternator 12V 90A Denso Style. Part number DXA568 should be checked first. Listed voltage is 12. Listed output rating is 90. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Pad. Regulator type is Internal. Pulley configuration is 7 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number DXA568, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 90 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment by matching part number DXA568, the Denso-style pad mount layout, and the listed dimensions and pulley specification against the alternator already on the vehicle. Do not rely on vehicle name alone; compare the existing unit, connector layout and mount measurements before ordering.

FAQ

Is this alternator new or remanufactured?

This OEX alternator is listed as new, not remanufactured.

What is the voltage and amperage rating?

It is a 12V alternator with a 90A power rating.

What mounting style does it use?

It is a Denso style alternator with a pad mount layout.

What pulley does this alternator have?

It has a 7 groove pulley with a 60mm outside diameter.

What part number should I match?

The listed part number is DXA568. Matching that number is the most reliable first check before ordering.

What warranty is listed?

The warranty is 3 years for passenger use and 1 year for commercial use.
