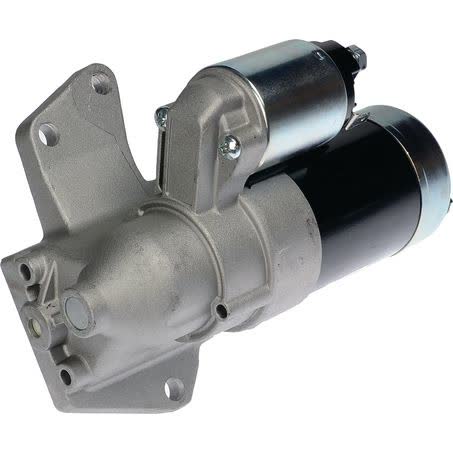

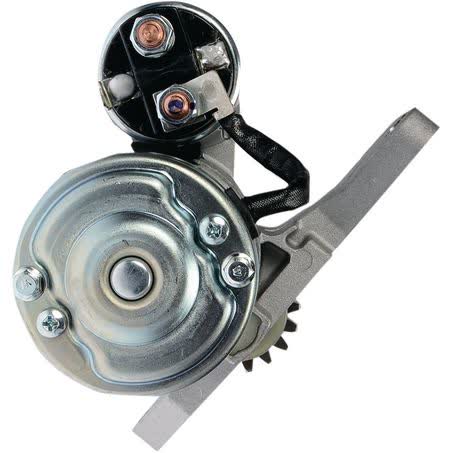

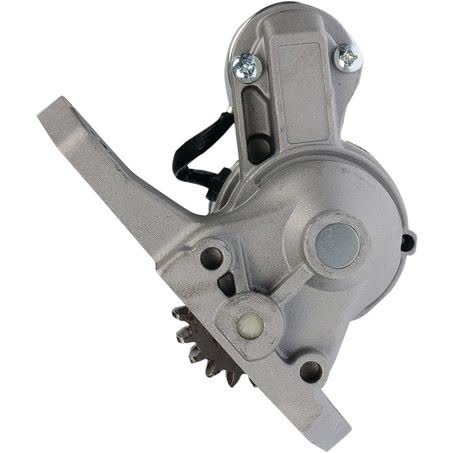

OEX Starter Motor 12V 18T CCW Mitsubishi Style MXS2038

The OEX starter motor listed here is a new 12V unit with 18 teeth, counter-clockwise rotation, and a Mitsubishi-style application. It carries part number MXS2038 and is supplied as an each item for rotating electrical repair or replacement work.

Key physical details include a pad starter mount, 148mm mount centres A, 133mm mount centres B, 44mm mount centres C, and 11.5mm mount hole diameter. The overall length is 230mm, the pinion diameter is 52mm, and the pinion at rest measures 60mm.

This starter motor is rated at 1.6kW and weighs 4.08kg. It is listed as a new unit, suited to Mitsubishi, and specified for dry clutch applications. The warranty is 3yr Passenger and 1yr Commercial.

Key Features

• 12V starter motor
• 18-tooth pinion
• Counter-clockwise rotation
• Pad mount type
• New unit
• Mitsubishi-style application

Specifications

• Voltage: 12V
• Power rating: 1.6kW
• Rotation: CCW
• Number of teeth: 18
• Starter mount type: Pad
• Overall length: 230mm
• Mount centres A: 148mm
• Mount centres B: 133mm

Fitment guidance

• No verified vehicle fitment is supplied for this starter motor.
• The only listed application detail is suited to Mitsubishi.
• Fitment should be checked against part number MXS2038 and the physical mount and pinion measurements before purchase.

Application and Buying Notes

Starter motors need matching electrical and mechanical details, not just a similar appearance. For this unit, the important checks are 12V system voltage, CCW rotation, 18 teeth, pad mount type, and the mounting measurements of 148mm, 133mm, and 44mm. Those figures help confirm whether the replacement will suit the vehicle’s starter location and engagement requirements.

The pinion and body dimensions are equally important. This starter has a 52mm pinion diameter, 60mm pinion at rest, and an overall length of 230mm, so comparing the old unit against these numbers can prevent ordering the wrong part. The listed 11.5mm mount hole diameter and 4.08kg weight are also useful when checking against the existing starter.

Because the supplied fitment detail only says suited to Mitsubishi, it is best to confirm the exact application with the part number MXS2038 rather than relying on model name alone. Vehicle changes, engine variants, and starter configurations can affect compatibility even where the vehicle brand is the same.

The warranty is listed as 3yr Passenger and 1yr Commercial, which gives a clear use-case distinction for private and commercial service. If the vehicle is used in commercial duty, make sure that warranty expectation matches the way the vehicle is operated. New starter motors are generally chosen when the existing unit is worn, noisy, or failing to engage consistently.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS2038 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres B 133mm, Mount Hole Diameter 11.5, Overall Length 230mm, Pinion Diameter 52mm, Rotation CCW, Voltage 12, Starter Mount Type Pad.

Additional published details for cross-checking include Weight 4.08kg, Product Group 1 ROTATING ELECTRICAL, Part No. MXS2038, Brand OEX, Description OEX Starter Motor 12V 18Th CCW Mitsubishi Style, Mount Centres A 148mm, Mount Centres C 44mm, Number of Teeth 18, Pinion at Rest 60mm, Power Rating 1.6kW.

OEX Starter Motor 12V 18Th CCW Mitsubishi Style. Part number MXS2038 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS2038, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include MAZDA MPV, MAZDA MPV 1999, MAZDA MPV 2000, MAZDA MPV 2001. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment using part number MXS2038, the Mitsubishi application detail, and the listed dimensions and rotation before ordering. Do not rely on vehicle name alone.

FAQ

What type of part is this?

It is a starter motor, supplied as a new rotating electrical part. For this listing, part number MXS2038 is the main reference point. Listed voltage is 12. Published fitment references include MAZDA MPV, MAZDA MPV 1999, MAZDA MPV 2000. These details should still be checked against the original unit before ordering.

What is the voltage rating?

The voltage rating is 12V. For this listing, part number MXS2038 is the main reference point. Listed voltage is 12. Published fitment references include MAZDA MPV, MAZDA MPV 1999, MAZDA MPV 2000. These details should still be checked against the original unit before ordering.

What rotation does it use?

It is specified as CCW, which means counter-clockwise rotation. For this listing, part number MXS2038 is the main reference point. Listed voltage is 12. Published fitment references include MAZDA MPV, MAZDA MPV 1999, MAZDA MPV 2000. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The starter is listed with 18 teeth. For this listing, part number MXS2038 is the main reference point. Listed voltage is 12. Published fitment references include MAZDA MPV, MAZDA MPV 1999, MAZDA MPV 2000. These details should still be checked against the original unit before ordering.

What part number should be matched?

The part number is MXS2038. For this listing, part number MXS2038 is the main reference point. Listed voltage is 12. Published fitment references include MAZDA MPV, MAZDA MPV 1999, MAZDA MPV 2000. These details should still be checked against the original unit before ordering.

Is vehicle fitment fully verified?

No verified vehicle fitment list is supplied here. The only application detail provided is suited to Mitsubishi, so fitment should be confirmed using MXS2038 and the listed measurements. For this listing, part number MXS2038 is the main reference point. Listed voltage is 12. Published fitment references include MAZDA MPV, MAZDA MPV 1999, MAZDA MPV 2000. These details should still be checked against the original unit before ordering.
