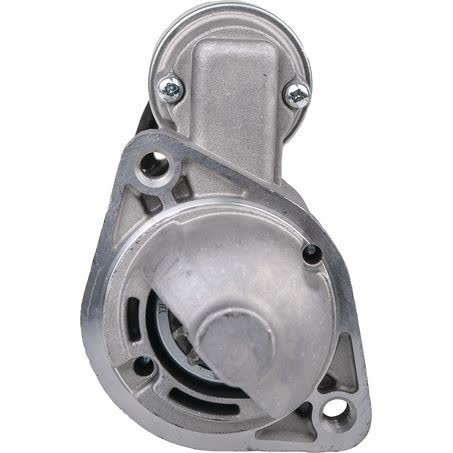

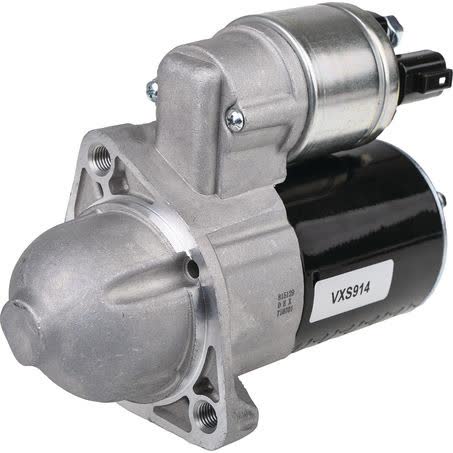

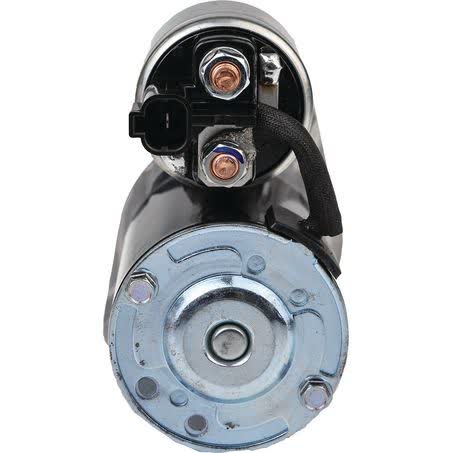

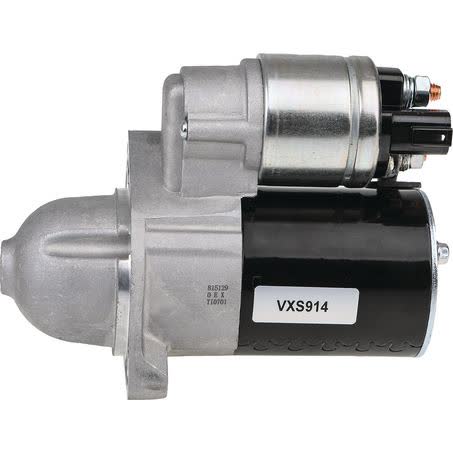

OEX Starter Motor 12V 11 Tooth CW Valeo Style VXS914

The OEX Starter Motor VXS914 is a new 12V starter motor with clockwise rotation, 11 teeth, and a 1.2kW power rating. It is listed as Valeo style and suits a Valeo unit make, with a 2-hole starter mount and M10x1.25 mount hole diameter.

Key dimensions for checking before purchase include a 95mm mount centres A measurement, 70mm flange diameter, 177mm overall length, 34.5mm pinion diameter, and 19mm pinion at rest. The unit weighs 2.68kg and is supplied each.

A clear note applies to this starter: it is not interchangeable with the 9 tooth unit. That tooth count difference matters, so the part number VXS914 and the 11 tooth specification should both be checked against the vehicle’s original starter before ordering.

Key Features

• 12V starter motor
• 11 tooth pinion
• Clockwise rotation
• Valeo style / suits Valeo unit make
• 2-hole starter mount
• New unit

Specifications

• Part number: VXS914
• Power rating: 1.2kW
• Voltage: 12V
• Rotation: CW
• Number of teeth: 11
• Starter mount type: 2 hole
• Mount centres A: 95mm
• Flange diameter: 70mm

Fitment guidance

• Fitment support is shown for Hyundai Elantra, Hyundai i30, Hyundai i40, Kia Cerato, Kia Cerato Koup, and Kia Rondo.
• Model coverage shown in the application data includes Hyundai Elantra 2010 to 2015, Hyundai i30 2011 to 2014, Kia Cerato 2013 to 2016, Kia Cerato Koup 2014 to 2016, and Kia Rondo 2015 to 2016.
• The fitment data names makes and model ranges, but final confirmation should still be made against the original starter part number, tooth count, mount style, and dimensions before purchase.

Application and Buying Notes

Before ordering, compare the original starter to VXS914 on the vehicle and confirm the key match points: 12V, CW rotation, 11 teeth, 2-hole mount, and the Valeo style application. The note that it is not interchangeable with a 9 tooth unit is important and should be treated as a hard check, not a general guide.

The physical measurements are useful where the existing unit is available for comparison. Check the 95mm mount centres A, 70mm flange diameter, 177mm overall length, and M10x1.25 mount hole diameter against the removed starter. These dimensions, together with the 34.5mm pinion diameter and 19mm pinion at rest, help reduce the risk of ordering the wrong part.

The listed fitment covers several Hyundai and Kia applications, but starter motors can vary within the same model range. The safest approach is to match the part number VXS914 and confirm the tooth count and mounting pattern on the vehicle, especially if the car has had prior repairs or the starter has been replaced before.

This is a new starter motor with a 1.2kW power rating and a dry clutch application. The warranty listed is 3 years for passenger use and 1 year for commercial use, so it is worth keeping proof of purchase and making sure the unit is installed to the correct application from the outset.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number VXS914 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 95mm, Number of Teeth 11, Pinion at Rest 19mm, Power Rating 1.2kW, Suits Unit Make Valeo, Note Not interchangeable with 9 tooth unit, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 2.68kg, Product Group 1 ROTATING ELECTRICAL, Part No. VXS914, Brand OEX, Description OEX Starter Motor 12V 11Th CW Valeo Style - See Note, Flange Diameter 70mm, Mount Hole Diameter M10x1.25, Overall Length 177mm, Pinion Diameter 34.5mm, Rotation CW.

OEX Starter Motor 12V 11Th CW Valeo Style - See Note. Part number VXS914 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number VXS914, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HYUNDAI ELANTRA, HYUNDAI ELANTRA 2010, HYUNDAI ELANTRA 2011, HYUNDAI ELANTRA 2012, KIA CERATO, KIA CERATO 2013. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment by matching part number VXS914, 12V CW rotation, 11 teeth, 2-hole mount, and the stated dimensions against the vehicle’s original starter and application details before ordering.

FAQ

What is the part number for this starter motor?

The part number is VXS914.

Is this starter motor 12 volt?

Yes. The listed voltage is 12V.

How many teeth does the pinion have?

It has 11 teeth.

What rotation does this starter motor use?

It is clockwise rotation, shown as CW.

Which vehicle makes and models are shown in the fitment data?

The fitment data shows Hyundai Elantra, Hyundai i30, Hyundai i40, Kia Cerato, Kia Cerato Koup, and Kia Rondo, with year ranges shown in the application data for some of those models.

Is it interchangeable with a 9 tooth unit?

No. The listing specifically notes that it is not interchangeable with a 9 tooth unit.
