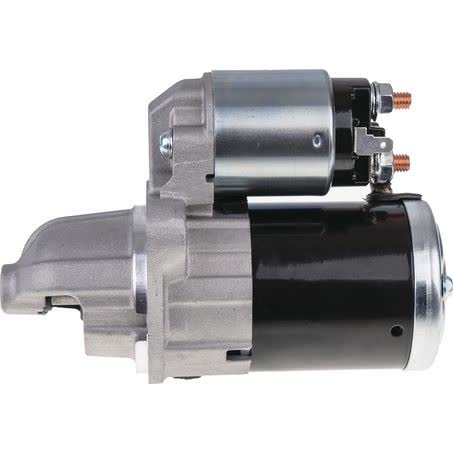

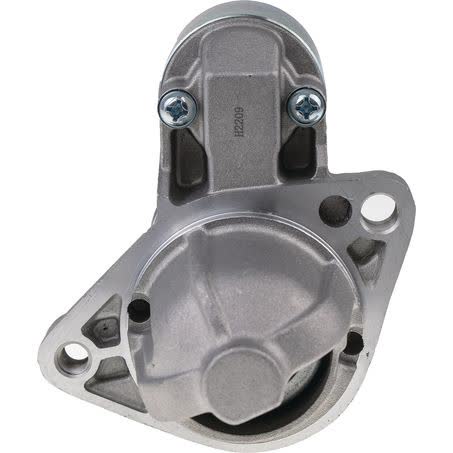

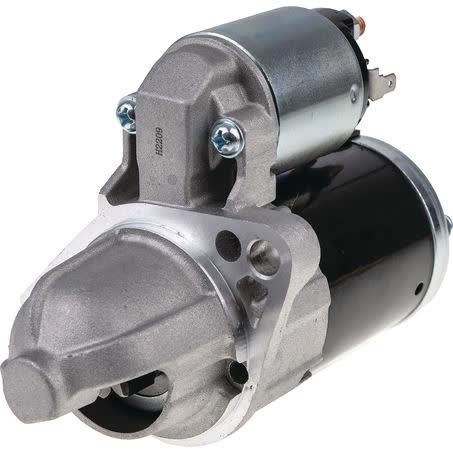

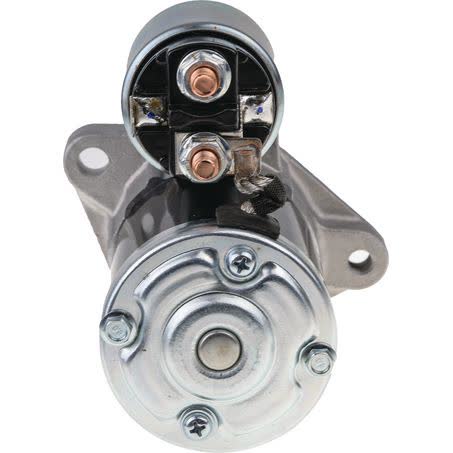

OEX Starter Motor 12V 8-TOOTH CW Mitsubishi Style MXS2045

The OEX MXS2045 is a 12V starter motor in Mitsubishi style, with 8 teeth, clockwise rotation, and a 1.2kW power rating. It is a new unit sold each and listed with a 2 hole starter mount, so it suits buyers who need a replacement starter with those matching core details.

Key dimensions recorded for this starter motor include 103mm mount centres, a 65mm nose cone length, 185mm overall length, a 70mm flange diameter, and a 28mm pinion diameter. The mount hole diameter is listed as M10x1.25 / 11, and the unit weight is 2.62kg.

This starter motor is identified as suit unit make Mitsubishi, with dry clutch application noted. It is backed by a 3 year passenger and 1 year commercial warranty, which is useful context when comparing replacement options for the same application style and electrical specification.

Key Features

• 12V starter motor
• 8-tooth pinion
• Clockwise rotation
• Mitsubishi style
• New unit
• 2 hole starter mount

Specifications

• Part No.: MXS2045
• Brand: OEX
• Product type: Starter motor
• Voltage: 12V
• Power rating: 1.2kW
• Rotation: CW
• Number of teeth: 8
• Starter mount type: 2 hole

Fitment guidance

• SUZUKI: SWIFT, SWIFT 2006, SWIFT 2007, SWIFT 2008, SWIFT 2009, plus other listed applications

Application and Buying Notes

Before ordering, compare the part number MXS2045, the 12V electrical specification, and the clockwise rotation against the starter already fitted to the vehicle. The 8-tooth pinion, 2 hole mount, 103mm mount centres, and 185mm overall length are all practical checks that help confirm whether this unit matches the existing starter layout.

The Mitsubishi style note and the suit unit make listing should be treated as application guidance rather than a blanket fitment claim. Starter motors can look similar while differing in mount arrangement, nose cone length, flange size, or pinion details, so the 70mm flange diameter and M10x1.25 / 11 mount hole diameter are worth checking carefully before purchase.

If you are replacing a starter that has failed, compare the old unit side by side wherever possible. Confirm the 8 teeth, 28mm pinion diameter, clockwise rotation, and dry clutch application, then make sure the physical dimensions suit the available space. These checks reduce the chance of receiving a visually similar starter that does not line up correctly.

For commercial use, the warranty listed is 1 year. For passenger use, the warranty listed is 3 years. Warranty terms do not replace fitment checking, so the safest approach is to match the part number, the unit make guidance, and the measured dimensions before fitting.

This is a new OEX starter motor supplied as an individual unit. If the existing starter has been modified, repaired, or swapped previously, rely on the recorded dimensions and the application details rather than shape alone. The 2.62kg weight and 1.2kW rating can also be useful reference points when comparing options.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS2045 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 103mm, Nose Cone Length 65mm, Overall Length 185mm, Pinion Diameter 28mm, Rotation CW, Voltage 12, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 2.62kg, Product Group 1 ROTATING ELECTRICAL, Part No. MXS2045, Brand OEX, Description OEX Starter Motor 12V 8Th CW Mitsubishi Style, Flange Diameter 70mm, Mount Hole Diameter M10x1.25 / 11, Number of Teeth 8, Pinion at Rest 28mm, Power Rating 1.2kW.

OEX Starter Motor 12V 8Th CW Mitsubishi Style. Part number MXS2045 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS2045, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm compatibility using part number MXS2045, the 12V CW 8-tooth configuration, and the measured mount and dimension details before ordering. Do not rely on appearance alone, as starter fitment depends on the exact application and mounting arrangement.

FAQ

What is the part number for this starter motor?

The part number listed is MXS2045. For this listing, part number MXS2045 is the main reference point. Listed voltage is 12. Published fitment references include SUZUKI SWIFT, SUZUKI SWIFT 2006, SUZUKI SWIFT 2007. These details should still be checked against the original unit before ordering.

What are the main electrical details?

It is a 12V starter motor with a 1.2kW power rating and clockwise rotation. For this listing, part number MXS2045 is the main reference point. Listed voltage is 12. Published fitment references include SUZUKI SWIFT, SUZUKI SWIFT 2006, SUZUKI SWIFT 2007. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion is listed with 8 teeth. For this listing, part number MXS2045 is the main reference point. Listed voltage is 12. Published fitment references include SUZUKI SWIFT, SUZUKI SWIFT 2006, SUZUKI SWIFT 2007. These details should still be checked against the original unit before ordering.

What mounting details are provided?

It has a 2 hole starter mount, 103mm mount centres, and M10x1.25 / 11 mount hole diameter. For this listing, part number MXS2045 is the main reference point. Listed voltage is 12. Published fitment references include SUZUKI SWIFT, SUZUKI SWIFT 2006, SUZUKI SWIFT 2007. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

It is listed as new. For this listing, part number MXS2045 is the main reference point. Listed voltage is 12. Published fitment references include SUZUKI SWIFT, SUZUKI SWIFT 2006, SUZUKI SWIFT 2007. These details should still be checked against the original unit before ordering.

What warranty is listed?

The warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number MXS2045 is the main reference point. Listed voltage is 12. Published fitment references include SUZUKI SWIFT, SUZUKI SWIFT 2006, SUZUKI SWIFT 2007. These details should still be checked against the original unit before ordering.
