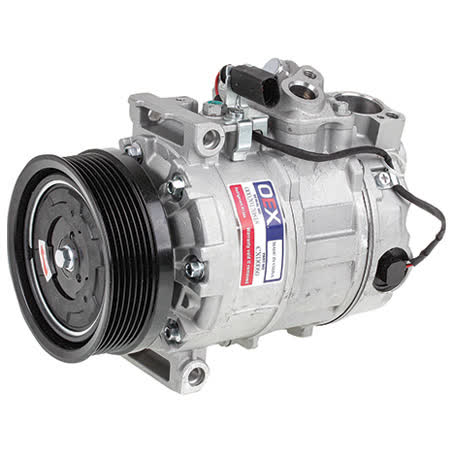

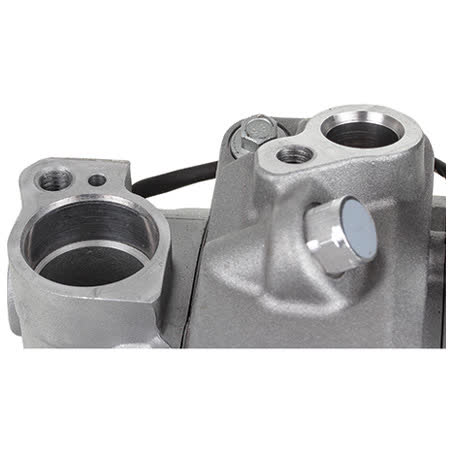

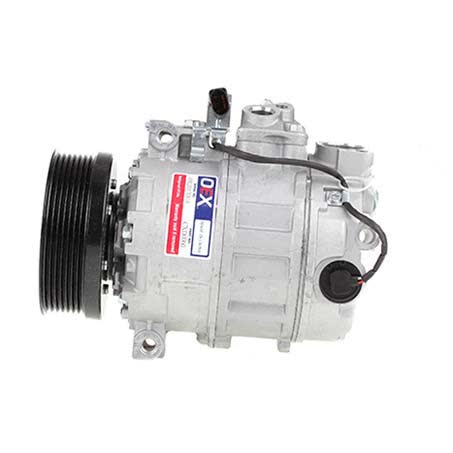

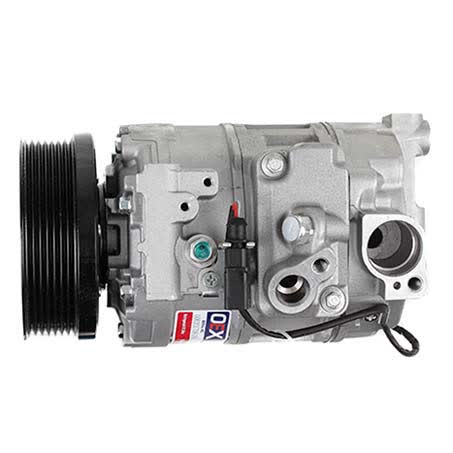

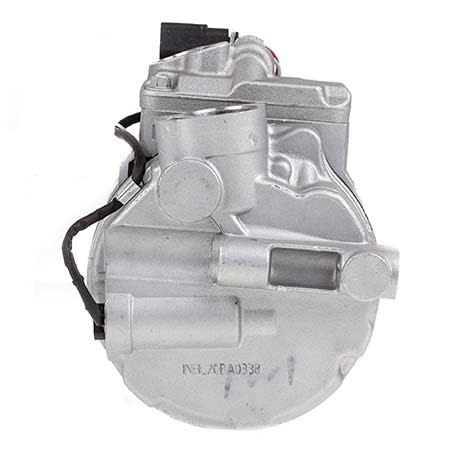

OEX Air Conditioning Compressor 12V Direct Mount Denso 7SEU17C Style CXD0060

This OEX air conditioning compressor is a 12V direct mount unit in Denso 7SEU17C style, supplied under part number CXD0060. It is listed with an original equipment number of 7L6820803S and uses a pad fitting type with a 7 groove pulley section.

The compressor is specified with a 110mm clutch diameter, 200ml oil capacity, and a weight of 6.7kg. It is noted as a Denso-suited unit with electronic variable control valve and PAG46 oil type.

Vehicle applications supplied for this compressor include Audi Q7 3.6L, Porsche Cayenne 92A 3.6L, Cayenne 9PA1 3.6L, Volkswagen Passat 3B3/6 B5 3BG 4.0L, and Volkswagen Touareg 7L in 3.2L and 3.6L variants within the listed date ranges.

Key Features

• 12V air conditioning compressor
• Direct mount design
• Denso 7SEU17C style
• Pad fitting type
• 7 groove pulley
• 110mm clutch diameter

Specifications

• Brand: OEX
• Part No.: CXD0060
• Original Equipment Number: 7L6820803S
• Series: 7SEU17C
• Voltage: 12
• Oil Capacity: 200ml
• Weight: 6.7kg
• Compressor Mounting: Direct Mount

Verified fitment applications

• Audi Q7 3.6L 01/2006 - 12/2015
• Porsche Cayenne 92A 3.6L 07/2010 - 04/2015
• Porsche Cayenne 9PA1 3.6L 03/2007 - 06/2010
• Volkswagen Passat 3B3/6 B5 3BG 4.0L 05/2002 - 05/2006
• Volkswagen Touareg 7L 3.2L 01/2003 - 12/2006
• Volkswagen Touareg 7L 3.6L 01/2006 - 12/2010

Application and Buying Notes

Check the vehicle application carefully before ordering, because this compressor is tied to specific models and engines rather than a universal fit. The supplied applications cover Audi Q7 3.6L, Porsche Cayenne 92A and 9PA1 3.6L, Volkswagen Passat 3.3/6 B5 3BG 4.0L, and Volkswagen Touareg 7L in 3.2L and 3.6L variants within the stated dates.

The key matching points here are the part number CXD0060, the original equipment number 7L6820803S, and the Denso 7SEU17C style direct mount construction. If the existing compressor has a different mounting arrangement, pulley section, or clutch diameter, it should be checked carefully before purchase.

This unit is specified with a 110mm clutch diameter, 7 groove pulley section, pad fitting type, and 12V operation. Those details matter when comparing against the vehicle’s existing compressor, brackets, belt drive setup, and electrical control arrangement.

At 6.7kg, this is a substantial component and should be handled and installed with care. A direct mount compressor can look similar to other Denso-style units, so do not rely on appearance alone; match the OE number, part number, and listed fitment details first.

The two year warranty provides an added level of reassurance, but the best result still depends on correct identification and installation. Confirm the vehicle model, engine size, build range, and compressor style before fitting, especially where multiple variants exist in the same model line.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXD0060 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty Two Years, Compressor Mounting Direct Mount, Original Equipment Number 7L6820803S, Series 7SEU17C, Voltage 12, Oil Capacity 200ml, Weight 6.7kg, Product Group 1 COOLING.

Additional published details for cross-checking include Part No. CXD0060, Brand OEX, Description OEX Air Conditioning Compressor 12V Direct Mount Denso 7SEU17C Style, Clutch Diameter 110mm, Fitting Type Pad, Pulley Section 7 Groove, Suits Unit Make Denso, Note Electronic variable control valve. Oil type PAG46., Dust Cover Y/N No.

OEX Air Conditioning Compressor 12V Direct Mount Denso 7SEU17C Style. Part number CXD0060 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is 7 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXD0060, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include AUDI Q7, AUDI Q7 2006, AUDI Q7 2007, AUDI Q7 2008, PORSCHE CAYENNE, PORSCHE CAYENNE 2007. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is Two Years. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Always confirm fitment using the part number CXD0060, OE number 7L6820803S, and the listed vehicle application details before ordering or fitting.

FAQ

What type of compressor is this?

It is an OEX air conditioning compressor, 12V, direct mount, in Denso 7SEU17C style.

What part number should I use to identify it?

The listed part number is CXD0060. The original equipment number supplied is 7L6820803S.

Which vehicles are listed as fitment applications?

Listed applications are Audi Q7 3.6L, Porsche Cayenne 92A 3.6L, Porsche Cayenne 9PA1 3.6L, Volkswagen Passat 3B3/6 B5 3BG 4.0L, and Volkswagen Touareg 7L in 3.2L and 3.6L variants within the stated date ranges.

What mounting and pulley details does it have?

It is a direct mount compressor with a pad fitting type, a 7 groove pulley section, and a 110mm clutch diameter.

What oil type is specified?

The note specifies PAG46 oil type, and the oil capacity is listed as 200ml.

Is there a warranty listed?

Yes. The compressor is listed with a two year warranty.
