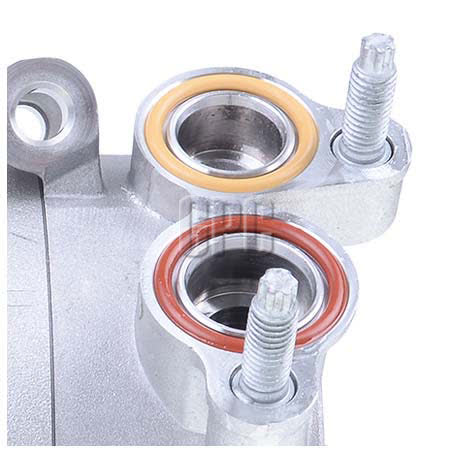

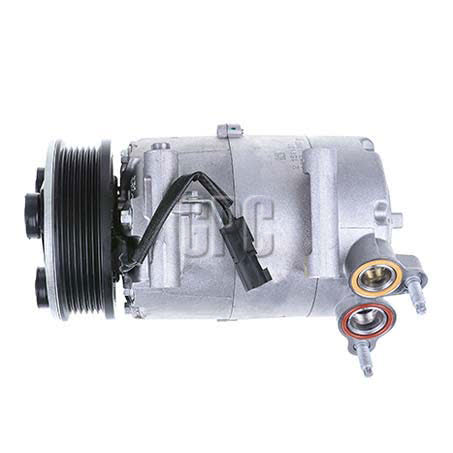

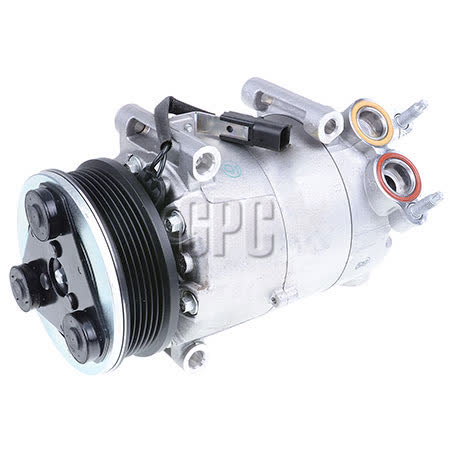

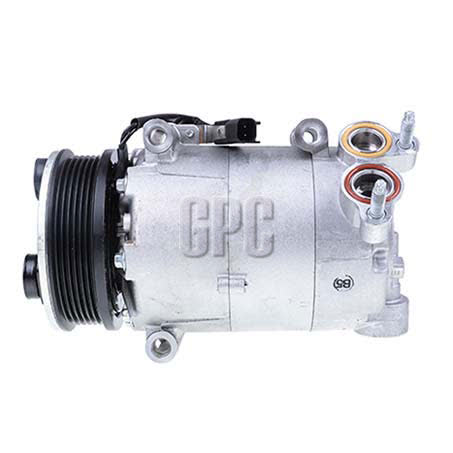

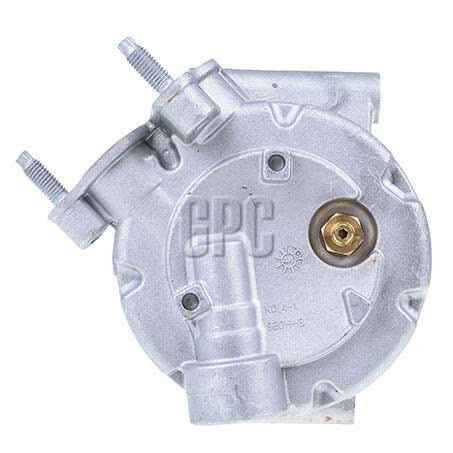

Ford HCC Air Conditioning Compressor 12V Direct Mount VS16 CXH077

The Ford HCC air conditioning compressor listed here is a 12V direct mount unit in the VS16 series, with a pad fitting type and a 6 groove pulley section. It is identified by part number CXH077 and original equipment number AV61-19D629-DC, which are the best reference points when checking replacement compatibility.

This compressor is supplied as a single each unit and carries a one year warranty. The compressor is noted as a Halla unit, with a 110mm clutch diameter and no dust cover, so matching the mounting style and pulley arrangement is important before ordering.

Application details provided with this unit include Ford Focus LW 2.0L Duratorq from 07/2011 to 06/2015, Ford Mondeo MB and MC 2.0L Duratorq from 07/2009 to 09/2014, and Ford Mondeo MC 2.0L from 11/2010 to 09/2014. These are the key vehicle references to compare against your existing compressor and vehicle build date.

Key Features

• 12V air conditioning compressor
• VS16 series
• Direct mount compressor
• Pad fitting type
• 6 groove pulley section
• 110mm clutch diameter

Specifications

• Type: Air conditioning compressor
• Brand: Ford
• Unit of measure: Each
• Voltage: 12
• Compressor mounting: Direct mount
• Series: VS16
• Fitting type: Pad
• Pulley section: 6 groove

Vehicle fitment details provided

• Ford Focus LW 2.0L Duratorq, 07/2011 to 06/2015
• Ford Mondeo MB & MC 2.0L Duratorq, 07/2009 to 09/2014
• Ford Mondeo MC 2.0L, 11/2010 to 09/2014

Application and Buying Notes

Before buying, compare the part number CXH077 and original equipment number AV61-19D629-DC against the compressor you are removing. That is the most reliable way to confirm you are looking at the same VS16 direct mount configuration, especially where the vehicle may have had previous repairs or replacement parts fitted.

The mounting style matters here. This unit is a direct mount compressor with a pad fitting type and a 6 groove pulley, so the bracket style and belt arrangement need to match your vehicle. The 110mm clutch diameter is another useful check when comparing against the existing compressor.

The listed applications cover specific Ford Focus LW and Ford Mondeo MB/MC diesel variants with 2.0L Duratorq engines across the stated build periods. Check the engine, model series, and production date carefully, because similar vehicles can use different compressors depending on build range and equipment level.

At 6.6kg, this is a substantial AC component and should be handled with care during installation. The unit is supplied without a dust cover, so keep ports and mating surfaces clean and make sure the correct system components are in place before fitment.

A one year warranty is provided, but warranty cover does not replace the need to confirm fitment. Matching the compressor mounting, pulley section, voltage, and reference numbers before installation will help avoid unnecessary downtime and rework.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXH077 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Compressor Mounting Direct Mount, Original Equipment Number AV61-19D629-DC, Series VS16, Voltage 12, Weight 6.6kg, Product Group 1 COOLING, Part No. CXH077.

Additional published details for cross-checking include Brand FORD, Description HCC Air Conditioning Compressor 12V Direct Mount VS16, Clutch Diameter 110mm, Fitting Type Pad, Pulley Section 6 Groove, Suits Unit Make Halla, Dust Cover Y/N No, Product Group 2 AC COMPONENTS.

HCC Air Conditioning Compressor 12V Direct Mount VS16. Part number CXH077 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXH077, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FORD FOCUS, FORD FOCUS 2011, FORD FOCUS 2012, FORD FOCUS 2013, MITSUBISHI PAJERO, MITSUBISHI PAJERO 1983. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment using part number CXH077, OE number AV61-19D629-DC, the VS16 direct mount layout, and the vehicle application details before purchase. If your compressor differs in mounting style, pulley section, clutch diameter, or engine/build range, do not assume interchangeability.

FAQ

What type of air conditioning compressor is this?

It is a Ford HCC air conditioning compressor, 12V, in the VS16 series with a direct mount and pad fitting type.

What part numbers should I check before ordering?

Check part number CXH077 and original equipment number AV61-19D629-DC. These are the main identifiers listed for this compressor.

Which vehicles are listed for this compressor?

The listed applications are Ford Focus LW 2.0L Duratorq from 07/2011 to 06/2015, Ford Mondeo MB & MC 2.0L Duratorq from 07/2009 to 09/2014, and Ford Mondeo MC 2.0L from 11/2010 to 09/2014.

Does this compressor use a 6 groove pulley?

Yes. The pulley section is listed as 6 groove.

What is the clutch diameter?

The clutch diameter is listed as 110mm.

Is a warranty included?

Yes. A one year warranty is listed for this compressor.
