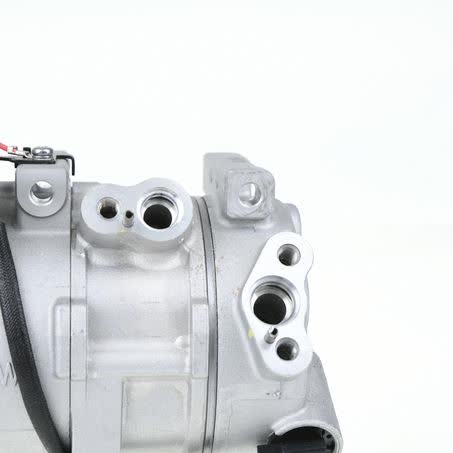

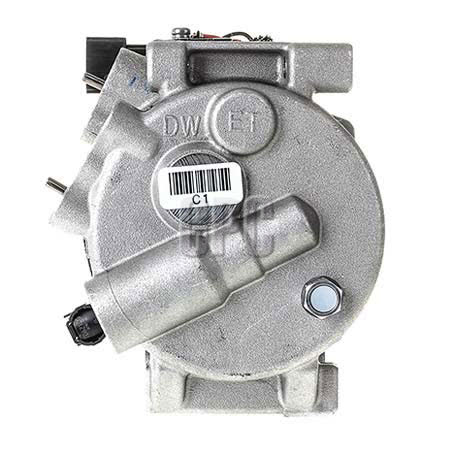

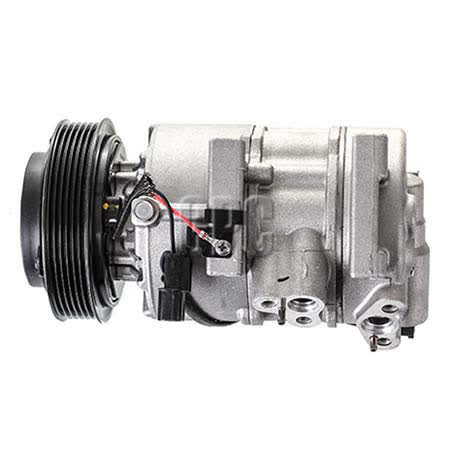

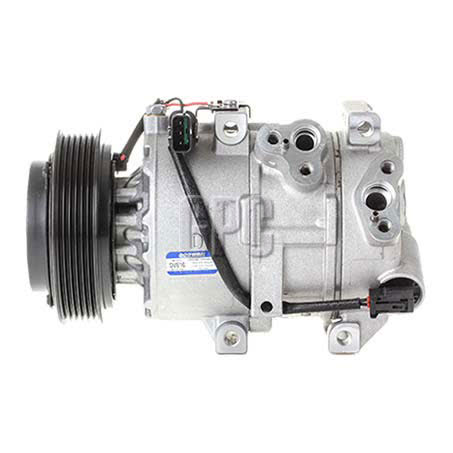

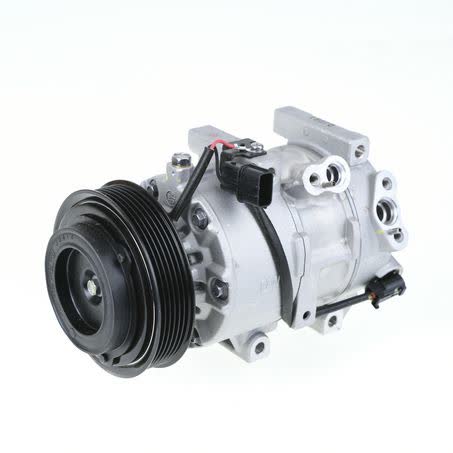

Hanon System HCC Air Conditioning Compressor 12V Direct Mount DV16 CXH056

Hanon System HCC Air Conditioning Compressor 12V Direct Mount DV16, part number CXH056, is an air conditioning compressor supplied as a direct mount unit with a 12V electrical setup. It is listed as a pad fitting type with a 6 groove pulley section, and the clutch diameter is 119mm.

This compressor is identified as Series DV16 and suits Doowon unit make. The listed original equipment number is 977012S500, which is a useful check when matching the compressor to an existing application or comparing against a removed unit.

Application details supplied with this compressor point to Hyundai iX35 LM 2.0L and 2.4L built from 02/2010 to 09/2013, and Kia Sportage SL 2.0L and 2.4L built from 08/2010 to 06/2013. Those dates and engine sizes matter, because air conditioning compressors must match both the vehicle application and the physical mounting arrangement.

Key Features

• 12V air conditioning compressor
• Direct mount compressor
• Series DV16
• Pad fitting type
• 6 groove pulley section
• 119mm clutch diameter

Specifications

• Brand: Hanon System
• Product type: Air conditioning compressor
• Part number: CXH056
• Voltage: 12V
• Compressor mounting: Direct mount
• Series: DV16
• Clutch diameter: 119mm
• Pulley section: 6 groove

Verified application details

• Hyundai iX35 LM 2.0L and 2.4L, 02/2010 to 09/2013
• Kia Sportage SL 2.0L and 2.4L, 08/2010 to 06/2013
• Check the vehicle’s existing compressor, mounting style, pulley groove count and connector arrangement before ordering
• Use the original equipment number 977012S500 and part number CXH056 as the main identification references

Application and Buying Notes

For the best match, compare the vehicle build date, engine size and compressor layout against the listed applications. This unit is specified for Hyundai iX35 LM 2.0L and 2.4L from 02/2010 to 09/2013, and Kia Sportage SL 2.0L and 2.4L from 08/2010 to 06/2013, so the date range is just as important as the model name.

The mounting style is direct mount and the fitting type is pad, so the replacement compressor needs to match that physical arrangement. The pulley section is 6 groove and the clutch diameter is 119mm, which are practical checks if you are comparing the old unit or checking belt alignment before fitting.

Part number CXH056 and original equipment number 977012S500 are the strongest identifiers in this listing. If your existing compressor, parts record or vehicle application uses a different number, stop and verify before purchase rather than relying on appearance alone.

This compressor is listed at 6kg and includes a one year warranty. Those details are useful for handling, freight planning and after-sales reference, but they do not replace a fitment check against the vehicle and the removed compressor.

Because the product is a climate control component, any uncertainty around the vehicle’s compressor family, pulley groove count or mounting face should be resolved before ordering. A close visual match is helpful, but the part number, OE number and application range are the more reliable checks.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXH056 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Compressor Mounting Direct Mount, Original Equipment Number 977012S500, Series DV16, Voltage 12, Weight 6kg, Product Group 1 COOLING, Part No. CXH056.

Additional published details for cross-checking include Brand HANON SYSTEM, Description HCC Air Conditioning Compressor 12V Direct Mount DV16, Clutch Diameter 119mm, Fitting Type Pad, Pulley Section 6 Groove, Suits Unit Make Doowon, Dust Cover Y/N No, Product Group 2 AC COMPONENTS.

HCC Air Conditioning Compressor 12V Direct Mount DV16. Part number CXH056 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXH056, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HYUNDAI IX35, HYUNDAI IX35 2010, HYUNDAI IX35 2011, HYUNDAI IX35 2012, KIA SPORTAGE, KIA SPORTAGE 2010. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment with part number CXH056, original equipment number 977012S500, the direct mount pad-style configuration, 12V specification, 6 groove pulley section and the stated vehicle application before buying. If any of those details do not match your existing unit, the compressor should be checked again before installation.

FAQ

What part number identifies this compressor?

The listed part number is CXH056.

What is the original equipment number?

The original equipment number listed for this compressor is 977012S500.

Which vehicles are listed as compatible?

The supplied applications are Hyundai iX35 LM 2.0L and 2.4L from 02/2010 to 09/2013, and Kia Sportage SL 2.0L and 2.4L from 08/2010 to 06/2013.

What mounting style does it use?

It is listed as a direct mount compressor with a pad fitting type.

What pulley and clutch details are supplied?

The compressor has a 6 groove pulley section and a 119mm clutch diameter.

What warranty is listed?

The listed warranty is one year.
