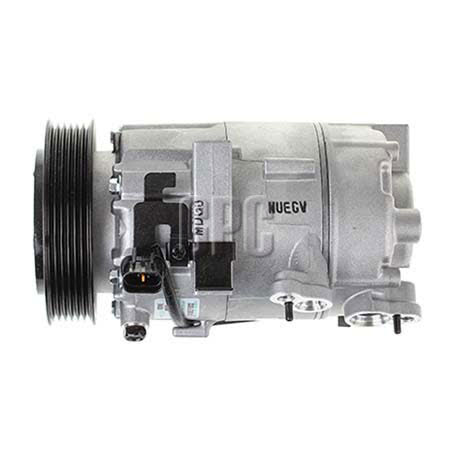

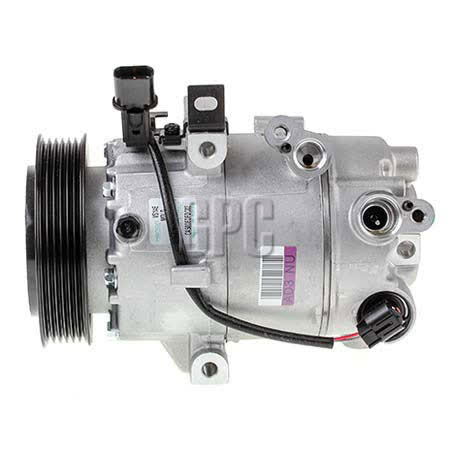

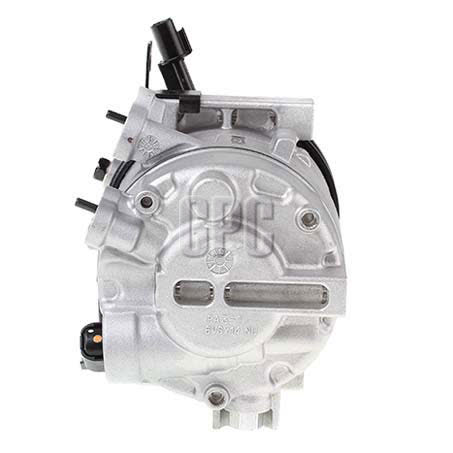

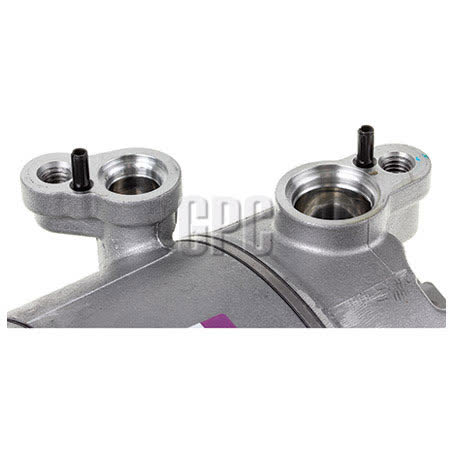

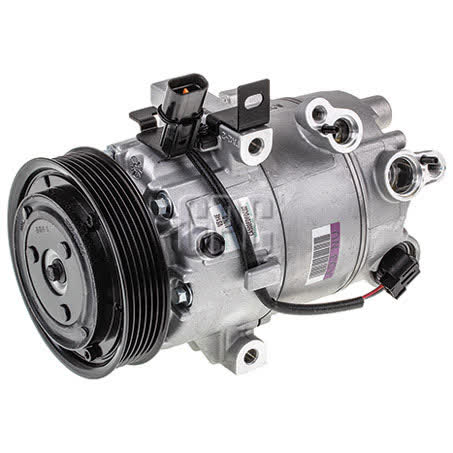

Hanon System HCC Air Conditioning Compressor 12V Direct Mount VS14 CXH076

Hanon System HCC air conditioning compressor in VS14 series, 12V, direct mount, part no. CXH076. It is listed with original equipment number 97701A-5100, 118mm clutch diameter, 6 groove pulley section, and pad fitting type.

This compressor is supplied r conditioning compressor each, with a stated weight of 6.5kg and oil capacity of 110cc. The note supplied with the item specifies oil type FD46XG, and the unit is identified for Halla applications.

The only explicit vehicle application provided is Kia Cerato YD 1.8L from 04/2013 to 02/2016. There is also fitment data indicating Hyundai I30 applications appear in the broader fitment listing, so confirmation against the part number and vehicle details is important before purchase.

Key Features

• 12V direct mount compressor
• VS14 series
• Part no. CXH076
• Original equipment number 97701A-5100
• 118mm clutch diameter
• 6 groove pulley section

Specifications

• Brand: Hanon System
• Product type: Air conditioning compressor
• Unit of measure: each
• Compressor mounting: Direct Mount
• Suits unit make: Halla
• Warranty: One year
• Voltage: 12
• Series: VS14

Fitment

• Kia Cerato YD 1.8L, 04/2013 to 02/2016
• Hyundai I30 appears in the broader fitment listing
• Hyundai I30 2012 appears in the broader fitment listing
• Hyundai I30 2013 appears in the broader fitment listing
• Hyundai I30 2014 appears in the broader fitment listing
• Hyundai I30 2015 appears in the broader fitment listing
• Hyundai I30 2016 appears in the broader fitment listing
• Hyundai I30 2017 appears in the broader fitment listing

Application and Buying Notes

Before ordering, confirm the compressor matches your vehicle by part number CXH076 and original equipment number 97701A-5100. The compressor is a 12V direct mount VS14 unit with a pad fitting, 118mm clutch diameter, and 6 groove pulley section, so those details should line up with the vehicle’s existing setup.

The stated vehicle application is Kia Cerato YD 1.8L from 04/2013 to 02/2016. The fitment listing also references Hyundai I30 applications, but the safest check is to compare your current compressor, the mounting style, pulley groove count, and electrical system requirements rather than relying on model name alone.

Oil specification matters with air conditioning compressors. This unit notes FD46XG oil and an oil capacity of 110cc, so the correct refrigerant system service procedure and oil charge should be confirmed by the installer before fitting. Incorrect oil type or quantity can affect system operation and durability.

The unit is listed at 6.5kg and does not include a dust cover. If you are replacing a compressor on a damaged or contaminated system, it is sensible to inspect associated components, flush where required, and verify the remaining A/C hardware is suitable for reuse. One year warranty applies to the compressor as listed.

Compatibility should be checked against the existing compressor label, vehicle build date, and connector and mounting arrangement. Even where the part number appears close, direct mount compressors can vary by clutch, pulley, and application details, so a careful match is the best way to avoid ordering the wrong unit.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXH076 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Compressor Mounting Direct Mount, Original Equipment Number 97701A-5100, Series VS14, Voltage 12, Oil Capacity 110cc, Weight 6.5kg, Product Group 1 COOLING.

Additional published details for cross-checking include Part No. CXH076, Brand HANON SYSTEM, Description HCC Air Conditioning Compressor 12V Direct Mount VS14, Clutch Diameter 118mm, Fitting Type Pad, Pulley Section 6 Groove, Suits Unit Make Halla, Note Oil type: FD46XG, Dust Cover Y/N No.

HCC Air Conditioning Compressor 12V Direct Mount VS14. Part number CXH076 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXH076, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HYUNDAI I30, HYUNDAI I30 2012, HYUNDAI I30 2013, HYUNDAI I30 2014. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment using part number CXH076, OE number 97701A-5100, and the vehicle’s compressor mounting, pulley, clutch, and electrical details before ordering.

FAQ

What vehicle is explicitly listed for this compressor?

The explicit application provided is Kia Cerato YD 1.8L from 04/2013 to 02/2016.

What are the key identifying numbers?

The listed part number is CXH076 and the original equipment number is 97701A-5100.

What type of compressor is it?

It is a Hanon System HCC air conditioning compressor, 12V, VS14 series, with direct mount and pad fitting type.

What pulley and clutch details are listed?

The compressor is listed with a 118mm clutch diameter and a 6 groove pulley section.

What oil information is provided?

The note specifies oil type FD46XG and the oil capacity is 110cc.

Is fitment confirmed for Hyundai I30?

Hyundai I30 appears in the broader fitment listing, but the only explicit vehicle application given is Kia Cerato YD 1.8L 04/2013 to 02/2016. Confirm by part number and vehicle details before ordering.
