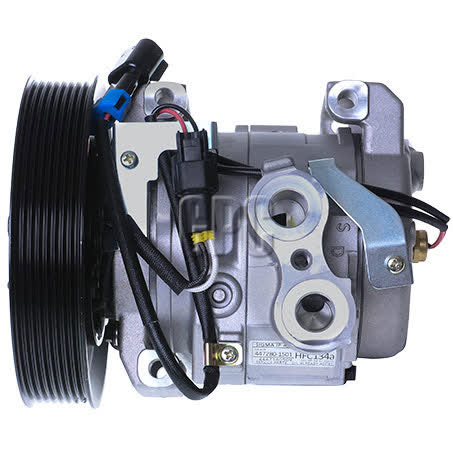

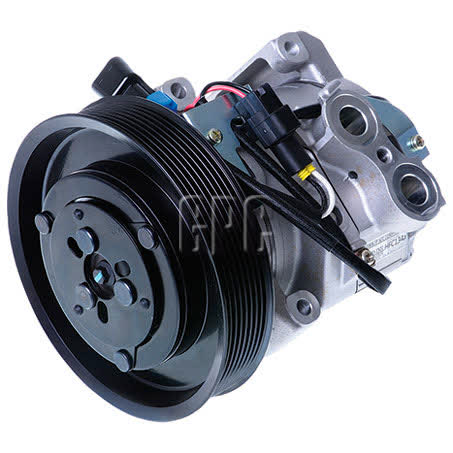

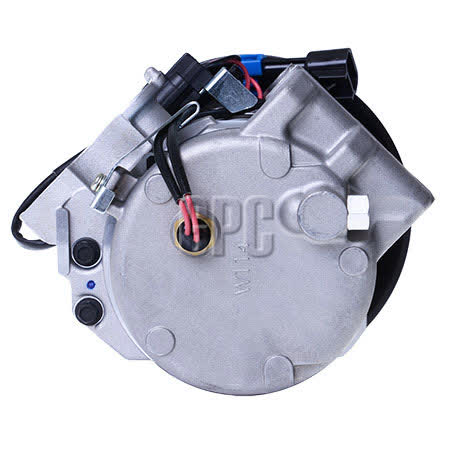

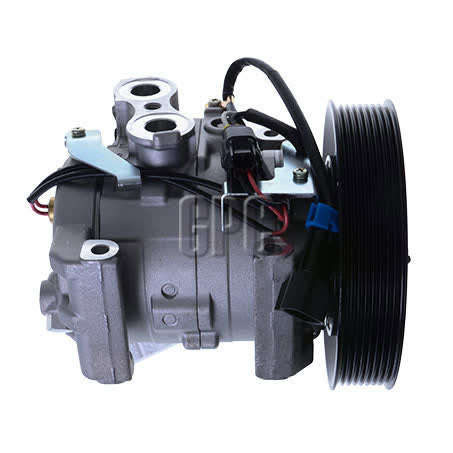

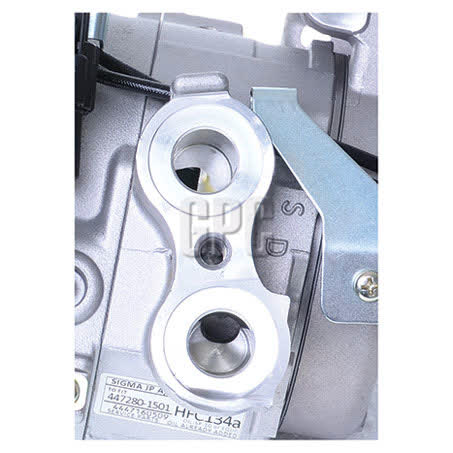

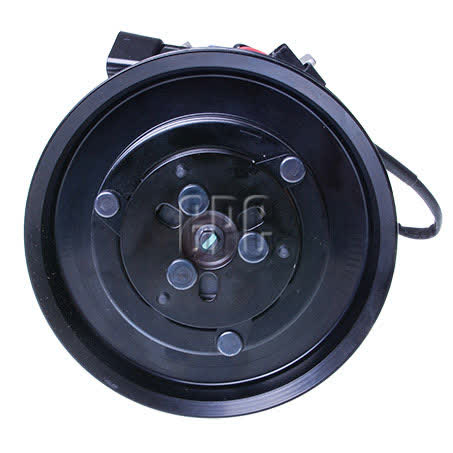

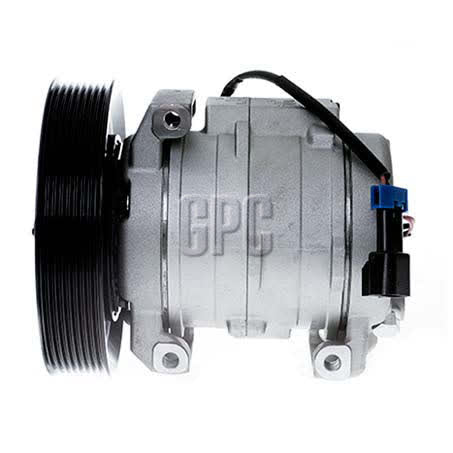

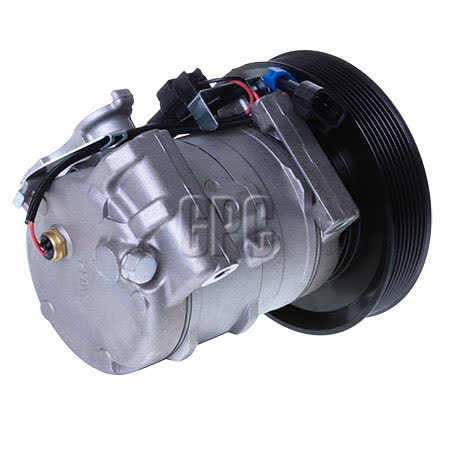

OEX Air Conditioning Compressor 12V Direct Mount Denso 10S15C Style CXD2378

OEX Air Conditioning Compressor CXD2378 is a 12V direct mount unit built in Denso 10S15C style, with an 8 groove pulley and a 164mm clutch diameter. It is listed R CONDITIONING COMPRESSOR, supplied each, and is intended for applications that match the specified mounting, pulley, and clutch details.

This compressor is identified as a direct mount MOR - Pad fitting type and is suited to Denso units. The listed oil type is PAG46, with an oil capacity of 170ml, and the note advises O rings to suit CPX4005 x 2. These details matter when comparing the unit against an existing compressor or when planning a replacement on a heavy-duty cooling system.

The part number is CXD2378 and the warranty is two years. The compressor weighs 8kg and is supplied without a dust cover. For buyers working on Freightliner and Western Star applications, the safest approach is to check the part number, mounting style, pulley section, and engine/application details before ordering.

Key Features

• 12V air conditioning compressor
• Direct mount design
• Denso 10S15C style
• 8 groove pulley
• 164mm clutch diameter
• MOR - Pad fitting type

Specifications

• Brand: OEX
• Part No.: CXD2378
• Product type: Air conditioning compressor
• Voltage: 12V
• Series: 10S15C
• Compressor mounting: Direct mount
• Pulley section: 8 groove
• Clutch diameter: 164mm

Verified fitment information

• Freightliner Coronado 114 with Detroit DD15 14.8L from 01/2010 onwards
• Western Star 4864 with Detroit DD13 12.8L and DD15 14.8L from 03/2011 onwards
• Western Star 4864 ISX 14.9L from 01/2009 onwards
• Western Star 4864X C12 380HP 12.0L from 01/2000 to 01/2008
• Western Star 4864/F/S 365HP 14.1L from 01/1987 to 01/1999

Application and Buying Notes

When checking whether CXD2378 is the right compressor, start with the physical match: 12V operation, direct mount configuration, MOR - Pad fitting type, 8 groove pulley, and 164mm clutch diameter. If any of those do not match the existing unit or the vehicle setup, the compressor may not be suitable without further verification.

The listed applications cover Freightliner Coronado 114 with Detroit DD15 14.8L from 01/2010 onwards, plus several Western Star 4864 variants with Detroit DD13 12.8L, DD15 14.8L, ISX 14.9L, C12 380HP 12.0L, and 365HP 14.1L engine combinations. Matching the engine designation and date range is important, but it should still be confirmed against the existing compressor and mounting arrangement before purchase.

This unit is specified for Denso units and uses PAG46 oil, with an oil capacity of 170ml. The note also calls for O rings to suit CPX4005 x 2, so these associated parts should be checked as part of the replacement process rather than assumed to be included with the compressor.

The compressor is supplied without a dust cover and weighs 8kg, which may help when comparing the replacement to the removed part and checking freight handling expectations. For workshop use, it is wise to compare the old compressor label, port arrangement, and belt drive details with the listed CXD2378 specification before fitting.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXD2378 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty Two Years, Compressor Mounting Direct Mount, Pulley Section 8 Groove, Suits Unit Make Denso, Note O rings to suit CPX4005 x 2. Suits 365 and 380HP engines. Oil type PAG46., Dust Cover Y/N No, Product Group 2 AC COMPONENTS.

Additional published details for cross-checking include Part No. CXD2378, Brand OEX, Description OEX Air Conditioning Compressor 12V Direct Mount Denso 10S15C Style, Clutch Diameter 164mm, Fitting Type MOR - Pad, Series 10S15C, Voltage 12, Oil Capacity 170ml, Weight 8kg, Product Group 1 COOLING.

OEX Air Conditioning Compressor 12V Direct Mount Denso 10S15C Style. Part number CXD2378 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is 8 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXD2378, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FREIGHTLINER CORONADO, FREIGHTLINER CORONADO 2010, WESTERN STAR 4800, WESTERN STAR 4800 2004, WESTERN STAR 4800 2005, WESTERN STAR 4800 2006. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by matching part number CXD2378, 12V direct mount configuration, 8 groove pulley, 164mm clutch diameter, Denso 10S15C style, and the listed engine/application details before ordering.

FAQ

What is the part number for this compressor?

The part number is CXD2378.

What voltage is this compressor?

It is a 12V air conditioning compressor.

What mounting style does it use?

It is listed as a direct mount compressor with MOR - Pad fitting type.

What pulley and clutch details are listed?

The compressor has an 8 groove pulley and a 164mm clutch diameter.

What oil type is specified?

The listed oil type is PAG46, with an oil capacity of 170ml.

Which applications are listed for fitment?

Listed applications include Freightliner Coronado 114 Detroit DD15 14.8L from 01/2010 onwards, and several Western Star 4864 variants covering Detroit DD13 12.8L, DD15 14.8L, ISX 14.9L, C12 380HP 12.0L, and 365HP 14.1L applications.
