Denso Air Conditioning Compressor 24V Direct Mount 10S15C CXD6384

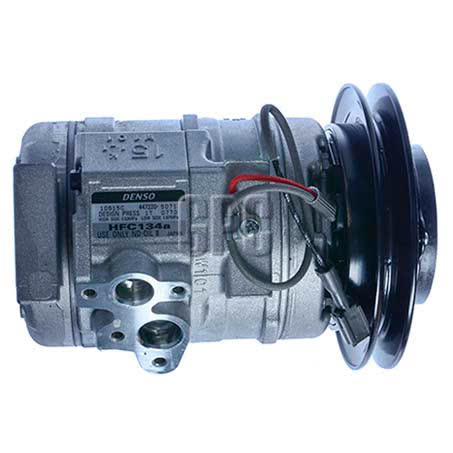

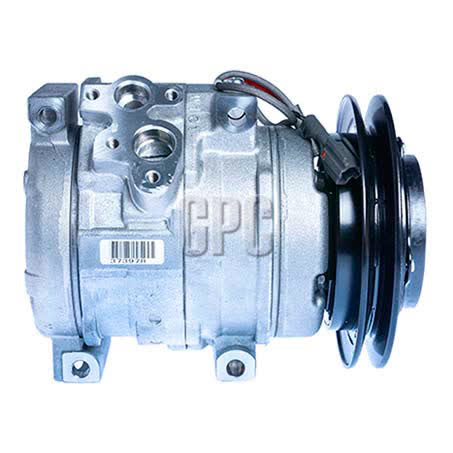

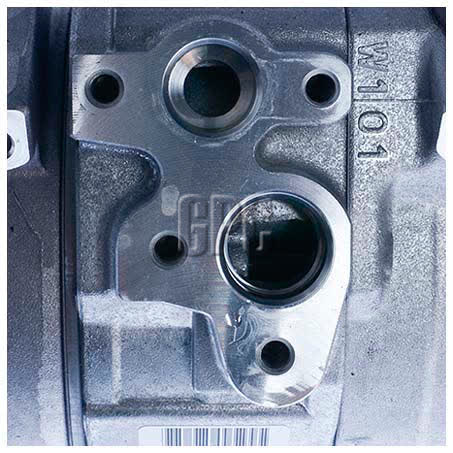

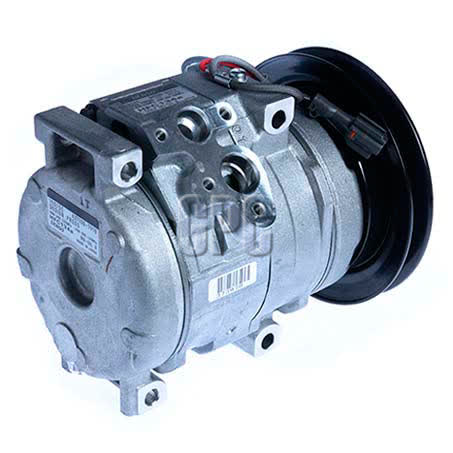

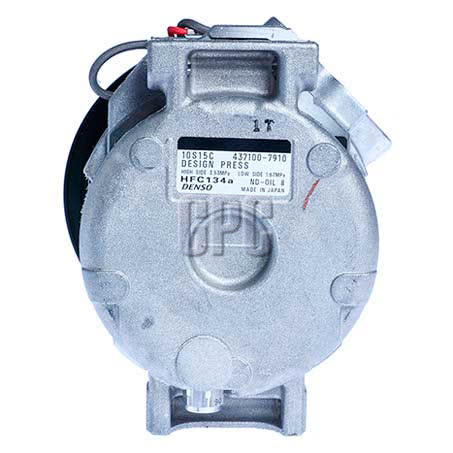

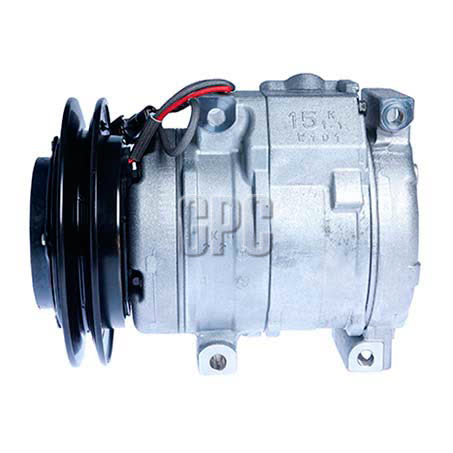

This Denso air conditioning compressor is a 24V direct mount unit from the 10S15C series, identified by part number CXD6384 and body number 447220-5070. It is listed with a 142mm clutch diameter, pad fitting type, A pulley section, and a weight of 6.5kg, which are the key details to check before ordering for a replacement air conditioning job.

The unit is specified for Denso applications and uses PAG 46 oil. It is noted as a direct mount compressor with no dust cover, and the original equipment number supplied is 437100-7910. Those identifiers are important when matching an existing compressor, especially where the vehicle has been modified or the system has been worked on previously.

Listed applications include Isuzu CVR 9.8L, CXH/CXH380 12.1L, 14.3L and 15.7L from 01/1994 onward, CXZ/CXZ400 GIGA 12.1L and 14.3L from 01/1997 onward, and F Series FVZ1400 7.8L and FXZ1500 9.8L from 11/2007 onward. There is also fitment information against Isuzu C/E Series, Isuzu F, FX, FY and Giga ranges, plus Kenworth T-Series applications in the supplied fitment data.

This is a genuine-style replacement compressor listing for buyers who need the main identifiers up front: 24V operation, Denso 10S15C series, CXD6384 part number, and the correct mounting style. When those points line up with the vehicle and the existing unit, it becomes much easier to confirm the right replacement before removing the old compressor.

Key Features

• 24V air conditioning compressor
• Denso 10S15C series
• Direct mount compressor
• Pad fitting type
• 142mm clutch diameter
• A pulley section

Specifications

• Brand: Denso
• Product type: Air conditioning compressor
• Part No.: CXD6384
• Body Number: 447220-5070
• Original Equipment Number: 437100-7910
• Series: 10S15C
• Voltage: 24
• Compressor Mounting: Direct Mount

Verified fitment details

• Isuzu CVR 9.8L from 01/1994 onward
• Isuzu CXH and CXH380 12.1L, 14.3L and 15.7L from 01/1994 onward
• Isuzu CXZ and CXZ400 GIGA 12.1L and 14.3L from 01/1997 onward
• Isuzu F Series FVZ1400 7.8L and FXZ1500 9.8L from 11/2007 onward
• Fitment data also references Isuzu C/E Series, Isuzu F, FX, FY and Giga ranges
• Fitment data also references Kenworth T-Series applications

Application and Buying Notes

Before ordering, compare the compressor against the unit already fitted to the vehicle, especially the 24V specification, direct mount arrangement, and pad fitting type. The 142mm clutch diameter, A pulley section, and part number CXD6384 are practical checkpoints that help avoid a mismatch when replacing a worn or seized compressor.

The listed oil type is PAG 46, so the replacement should be handled in line with the system requirements for this compressor type. Because air conditioning components are sensitive to the correct oil and installation method, it is worth confirming the system specification, the existing compressor style, and whether the vehicle uses the same Denso 10S15C configuration before the job begins.

Application data is provided for specific Isuzu ranges and also includes Kenworth T-Series references in the fitment information. That said, vehicle range alone is not enough on its own; the safest approach is to verify the original equipment number 437100-7910, the body number 447220-5070, and the mounting details against the vehicle currently in the workshop.

If the old compressor has been changed before, do not rely on model name alone. Matching the compressor series, voltage, mounting type, clutch size, and pulley section gives a much more reliable result than using vehicle description only. This is especially important on heavy vehicle air conditioning systems where the same model family can use different component combinations over time.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXD6384 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Clutch Diameter 142mm, Fitting Type Pad, Pulley Section A, Suits Unit Make Denso, Note Oil Type Pag 46, Weight 6.5kg, Product Group 1 COOLING.

Additional published details for cross-checking include Part No. CXD6384, Brand DENSO, Description Denso Air Conditioning Compressor 24V Direct Mount 10S15C, Body Number 447220-5070, Compressor Mounting Direct Mount, Original Equipment Number 437100-7910, Series 10S15C, Voltage 24, Dust Cover Y/N No.

Denso Air Conditioning Compressor 24V Direct Mount 10S15C. Part number CXD6384 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is A. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

Compatibility note: Confirm compatibility by checking the part number CXD6384, body number 447220-5070, original equipment number 437100-7910, 24V rating, direct mount style, and 142mm clutch diameter against the existing compressor and vehicle application before purchase.

FAQ

What type of compressor is this?

It is a Denso air conditioning compressor, 24V, in the 10S15C series with direct mount installation.

What is the part number?

The listed part number is CXD6384.

What oil type is specified?

The note supplied is PAG 46 oil.

What vehicles are listed for this compressor?

Listed applications include Isuzu CVR 9.8L from 01/1994 onward, Isuzu CXH/CXH380 12.1L, 14.3L and 15.7L from 01/1994 onward, Isuzu CXZ/CXZ400 GIGA 12.1L and 14.3L from 01/1997 onward, and Isuzu F Series FVZ1400 7.8L and FXZ1500 9.8L from 11/2007 onward.

Does this listing confirm Kenworth fitment?

The supplied fitment data references Kenworth T-Series applications, but the safest check is still to confirm the part number, mounting style, voltage, and compressor dimensions against the existing unit.

What warranty is listed?

The listed warranty is one year.
