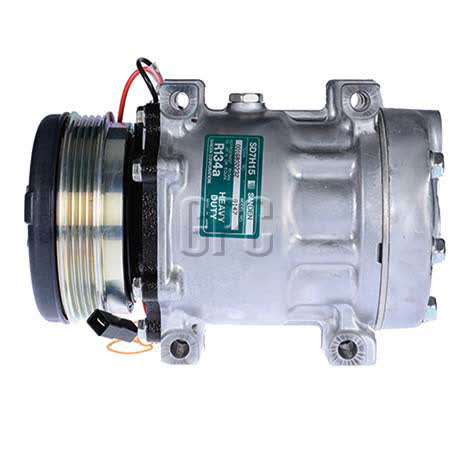

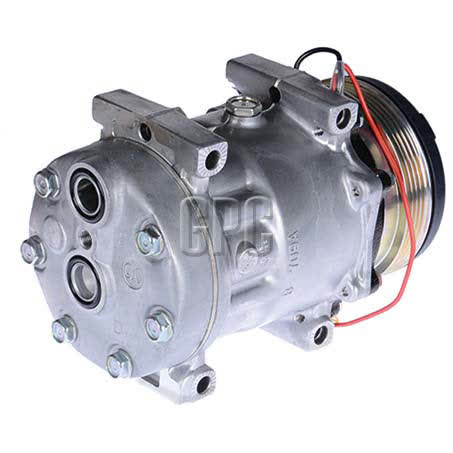

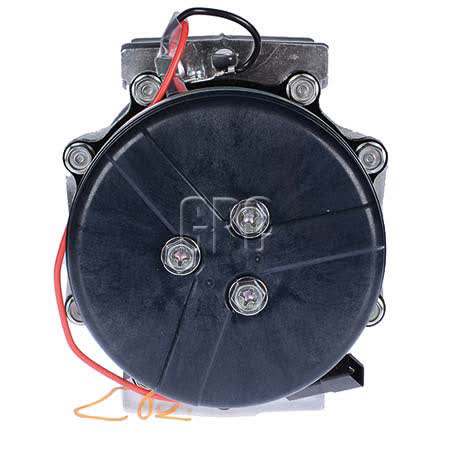

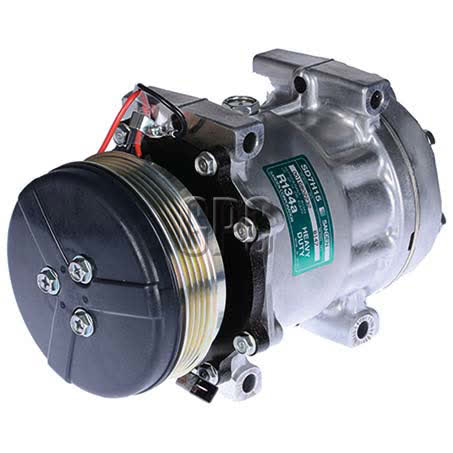

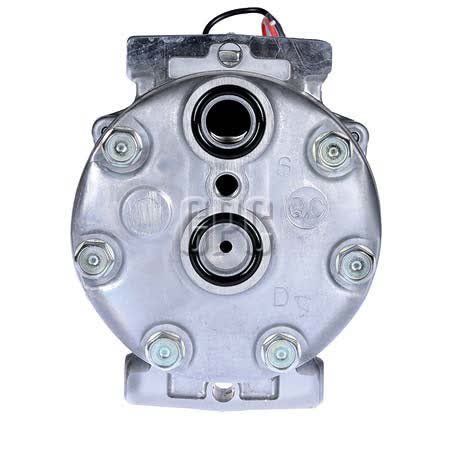

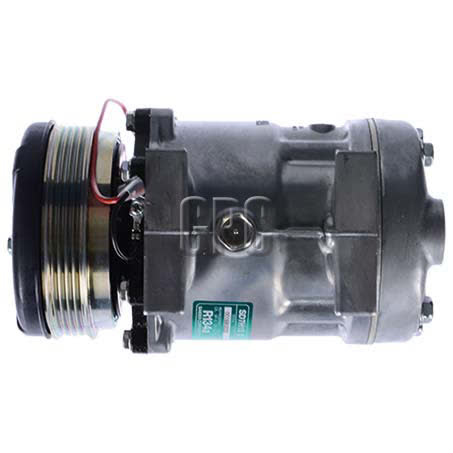

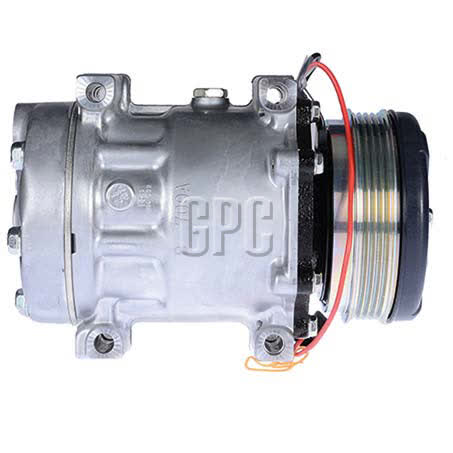

Sanden Air Conditioning Compressor 12V Direct Mount SD7H15 CXS8147

The Sanden SD7H15 air conditioning compressor is a 12V direct mount unit supplied as part number CXS8147. It uses a horizontal pad fitting type, a 4 groove pulley, a 112mm clutch diameter and a QC head, with a stated oil capacity of 190ml and oil type SP10. The unit is listed with a steel armature and dust cover.

This compressor is identified with original equipment number 8147 and is supplied under the Sanden brand for the AC components group. The listed weight is 5.5kg, which is useful when comparing against an existing unit during replacement work. O rings to suit ORX017 x 2 are noted, so sealing components should be matched carefully at installation.

Listed application information includes Massey Ferguson Tractor 6460 and 6465, covering 4.4L, 6.0L and 6.6L engines from 01/2004 to 2012. The fitment data also references related Massey Ferguson, Challenger and JCB applications, so confirming the exact vehicle and compressor details before ordering remains important.

Key Features

• 12V Sanden SD7H15 compressor
• Direct mount configuration
• Horizontal pad fitting type
• 4 groove pulley
• 112mm clutch diameter
• QC head

Specifications

• Part No.: CXS8147
• Original Equipment Number: 8147
• Series: SD7H15
• Voltage: 12V
• Oil Capacity: 190ml
• Oil Type: SP10
• Clutch Diameter: 112mm
• Pulley Section: 4 groove

Verified fitment information

• Massey Ferguson Tractor 6460
• Massey Ferguson Tractor 6465
• Applicable engine listings: 4.4L, 6.0L and 6.6L
• Application range shown: 01/2004 to 2012
• Additional fitment references include Challenger, Challenger MT, JCB and JCB Fastrac model families

Application and Buying Notes

Before ordering, compare the part number CXS8147 and original equipment number 8147 against the compressor already fitted to the machine. The listed compressor is a Sanden SD7H15 direct mount unit, so the mounting style, head code and pulley details need to match the existing setup, not just the vehicle make and model.

The supplied specification includes a 12V electrical system, a 4 groove pulley, a 112mm clutch diameter and a horizontal pad fitting type. These details are critical because small differences in mount style, pulley arrangement or clutch size can prevent the compressor from fitting correctly or lining up with the drive system.

The application note specifically names Massey Ferguson Tractor 6460 and 6465 across 4.4L, 6.0L and 6.6L engines from 01/2004 to 2012. If your machine falls outside those details, or if the compressor on the equipment has been changed previously, check the old unit, mounting face, hose connection style and pulley arrangement before buying.

The one year warranty applies to the listed compressor, but warranty support does not replace the need for correct identification at purchase. Match the part number, OE number, voltage and mounting style together so you are comparing like with like before the job is started.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS8147 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Compressor Mounting Direct Mount, Original Equipment Number 8147, Series SD7H15, Voltage 12, Armature Type Steel Armature, Oil Capacity 190ml, Head Code QC Head.

Additional published details for cross-checking include Product Group 2 AC COMPONENTS, Part No. CXS8147, Brand SANDEN, Description Sanden Air Conditioning Compressor 12V Direct Mount SD7H15, Clutch Diameter 112mm, Fitting Type Horizontal Pad, Pulley Section 4 Groove, Suits Unit Make Sanden, Note O Rings to Suit ORX017 x 2 . Oil Type SP10.

Sanden Air Conditioning Compressor 12V Direct Mount SD7H15. Part number CXS8147 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is 4 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXS8147, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment by comparing part number CXS8147, OE number 8147, 12V voltage, direct mount style, horizontal pad fitting, 4 groove pulley and the listed application details for your machine before ordering.

FAQ

What is the part number for this compressor?

The listed part number is CXS8147. For this listing, part number CXS8147 is the main reference point. Listed voltage is 12. Published fitment references include CHALLENGER MT, CHALLENGER MT 2007, CHALLENGER MT 2008. These details should still be checked against the original unit before ordering.

What is the original equipment number?

The original equipment number listed is 8147. For this listing, part number CXS8147 is the main reference point. Listed voltage is 12. Published fitment references include CHALLENGER MT, CHALLENGER MT 2007, CHALLENGER MT 2008. These details should still be checked against the original unit before ordering.

What voltage is this compressor?

It is a 12V compressor. For this listing, part number CXS8147 is the main reference point. Listed voltage is 12. Published fitment references include CHALLENGER MT, CHALLENGER MT 2007, CHALLENGER MT 2008. These details should still be checked against the original unit before ordering.

What vehicles are specifically listed in the application notes?

The specific application note lists Massey Ferguson Tractor 6460 and 6465, with 4.4L, 6.0L and 6.6L engines from 01/2004 to 2012. For this listing, part number CXS8147 is the main reference point. Listed voltage is 12. Published fitment references include CHALLENGER MT, CHALLENGER MT 2007, CHALLENGER MT 2008. These details should still be checked against the original unit before ordering.

What mounting style does it use?

It is listed as a direct mount compressor with a horizontal pad fitting type. For this listing, part number CXS8147 is the main reference point. Listed voltage is 12. Published fitment references include CHALLENGER MT, CHALLENGER MT 2007, CHALLENGER MT 2008. These details should still be checked against the original unit before ordering.

What sealing and oil details are noted?

The notes specify O rings to suit ORX017 x 2 and oil type SP10, with an oil capacity of 190ml. For this listing, part number CXS8147 is the main reference point. Listed voltage is 12. Published fitment references include CHALLENGER MT, CHALLENGER MT 2007, CHALLENGER MT 2008. These details should still be checked against the original unit before ordering.
