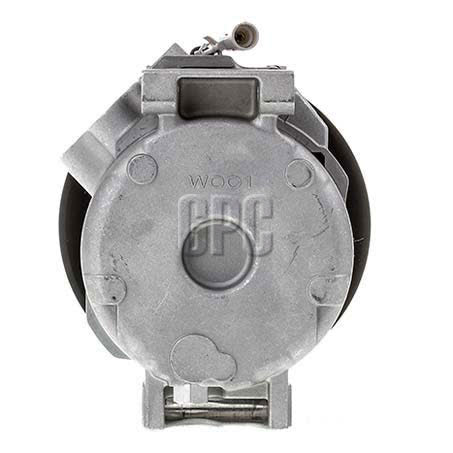

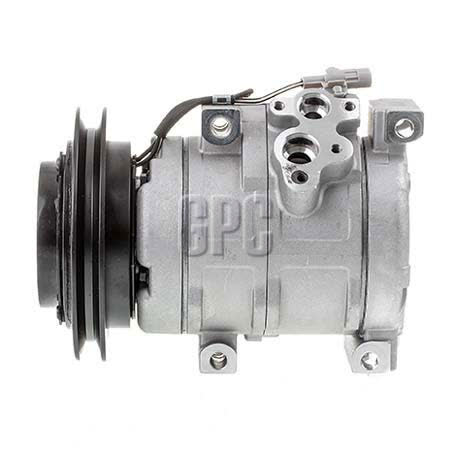

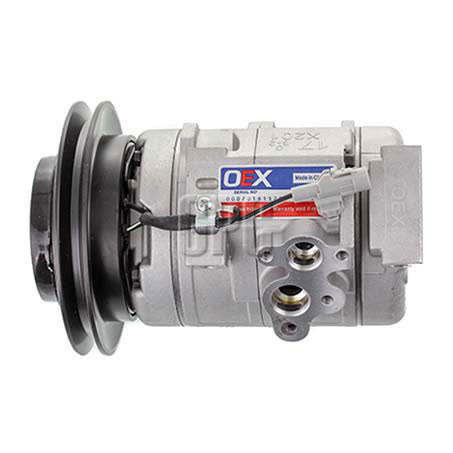

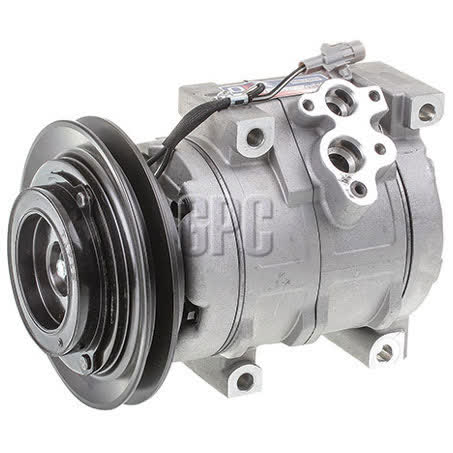

OEX Air Conditioning Compressor 24V Direct Mount Denso 10S15C Style CXD0047

The OEX Air Conditioning Compressor is a 24V direct mount unit in Denso 10S15C style, identified by part number CXD0047. It uses a pad fitting type, a Series 10S15C layout, and is listed with a 142mm clutch diameter, which makes those details important when confirming a replacement against the original compressor.

This compressor is specified with a pulley section A, a gauge line of 65mm, and no dust cover. Oil capacity is listed at 130ml, and the unit weight is 6.5kg. Those measurements matter when checking mounting arrangement, space around the drive end, and service requirements before ordering.

The listed application covers Hino 300 4.6L from 01/2000 to 07/2007 and Toyota Dyna XZU307R 4.6L from 08/2000 to 07/2002. If you are matching an existing compressor, compare the vehicle application, the 24V electrical setup, the direct mount style, and the part number CXD0047 before purchase.

Key Features

• 24V air conditioning compressor
• Direct mount design
• Denso 10S15C style
• Pad fitting type
• Part number CXD0047
• Clutch diameter 142mm

Specifications

• Brand: OEX
• Product type: Air conditioning compressor
• Voltage: 24V
• Compressor mounting: Direct mount
• Series: 10S15C
• Suits unit make: Denso
• Part No.: CXD0047

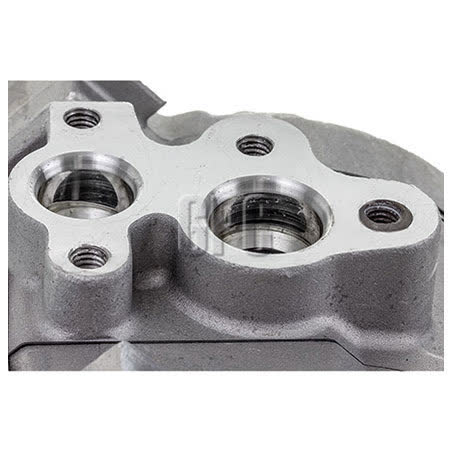

• Fitting type: Pad

Verified fitment

• Hino 300 4.6L — 01/2000 to 07/2007
• Toyota Dyna XZU307R 4.6L — 08/2000 to 07/2002

Application and Buying Notes

Before ordering, match the part number CXD0047 with the old compressor if possible, then check that the vehicle uses a 24V system and a direct mount compressor. The Denso 10S15C style, pad fitting type, and 142mm clutch diameter are all practical checkpoints that can help confirm the replacement is the correct physical match.

The listed oil capacity is 130ml, so it is worth checking the vehicle’s service requirements and the condition of the existing system before installation. If the previous compressor failed, the rest of the air conditioning circuit should be inspected properly, as contamination or incorrect oil levels can affect the new unit regardless of the compressor brand.

Pay close attention to the application window as well as the exact model detail. The confirmed listings here are Hino 300 4.6L from 01/2000 to 07/2007 and Toyota Dyna XZU307R 4.6L from 08/2000 to 07/2002. Even where vehicle names appear similar, compressor mounting, clutch size, pulley section, and electrical setup still need to line up with the vehicle already in front of you.

The unit is listed at 6.5kg and does not have a dust cover, so it is sensible to compare the physical compressor on the vehicle against the dimensions and mounting style before committing to the purchase. If the original unit has missing labels or damaged tags, use the mounting style, clutch diameter, series, and fitment details together rather than relying on appearance alone.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXD0047 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty Two Years, Compressor Mounting Direct Mount, Pulley Section A, Suits Unit Make Denso, Note C - C Top mount 98mm, C - C Bottom mount 78mm, Oil Capacity 130ml, Weight 6.5kg, Product Group 1 COOLING.

Additional published details for cross-checking include Part No. CXD0047, Brand OEX, Description OEX Air Conditioning Compressor 24V Direct Mount Denso 10S15C Style, Clutch Diameter 142mm, Fitting Type Pad, Series 10S15C, Voltage 24, Gauge Line 65mm, Dust Cover Y/N No.

OEX Air Conditioning Compressor 24V Direct Mount Denso 10S15C Style. Part number CXD0047 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is A. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXD0047, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HINO DUTRO, HINO DUTRO 1999, HINO DUTRO 2000, HINO DUTRO 2001, TOYOTA DYNA 400, TOYOTA DYNA 400 2000. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is Two Years. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Please confirm fitment with part number CXD0047, the 24V direct mount specification, and the listed vehicle application details before ordering. If there is any mismatch in compressor style, clutch diameter, pulley section, or mounting arrangement, the part should be rechecked against the vehicle already fitted.

FAQ

What is the part number for this compressor?

The part number is CXD0047.

What voltage does this compressor use?

It is listed as a 24V compressor.

Which compressor style does it match?

It is described as a Denso 10S15C style compressor with a direct mount design and pad fitting type.

What vehicles are listed as compatible?

The listed applications are Hino 300 4.6L from 01/2000 to 07/2007 and Toyota Dyna XZU307R 4.6L from 08/2000 to 07/2002.

What are the key physical checks before buying?

Check the part number CXD0047, 24V voltage, direct mount style, pad fitting type, 142mm clutch diameter, and pulley section A.

Does it include warranty information?

Yes. The listed warranty is Two Years.
