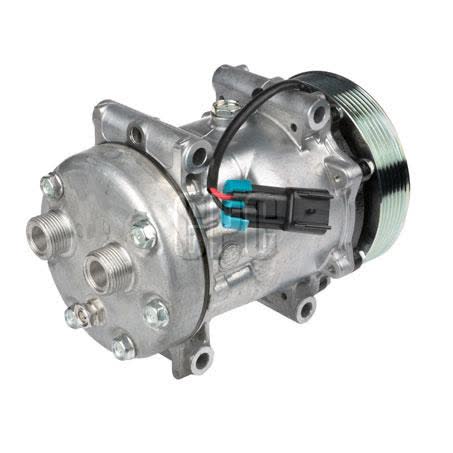

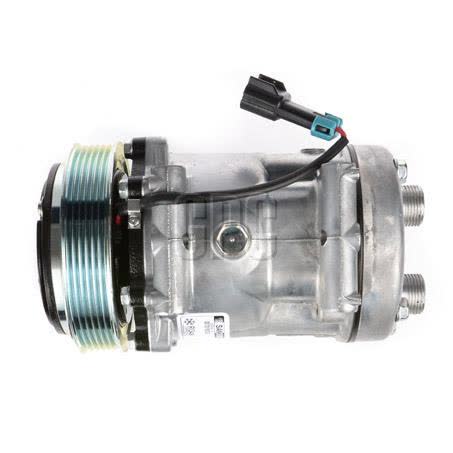

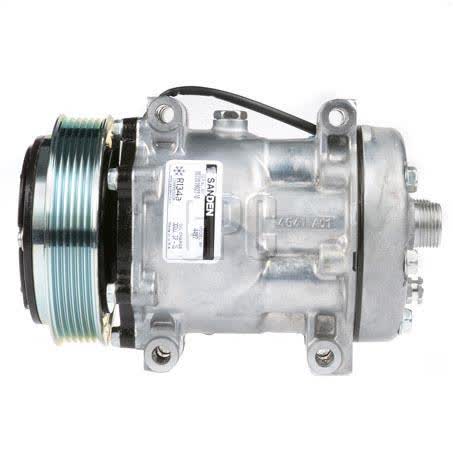

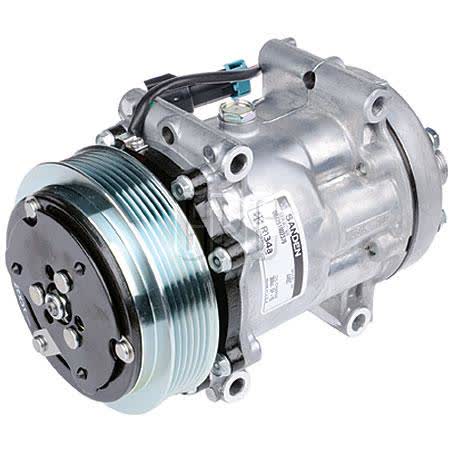

Sanden Air Conditioning Compressor 12V Direct Mount SD7H15 CXS4492

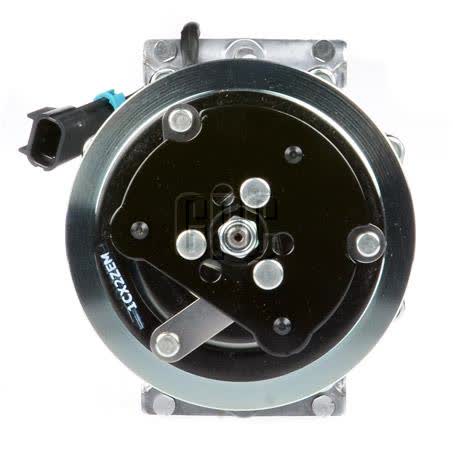

This Sanden air conditioning compressor is a 12V, direct mount unit in the SD7H15 series, identified by part number CXS4492 and original equipment number 4492. It is supplied as a single unit and is listed with a one year warranty. The compressor uses a 125mm clutch diameter and a 6 groove pulley section, which are important checks when matching the drive setup on the vehicle.

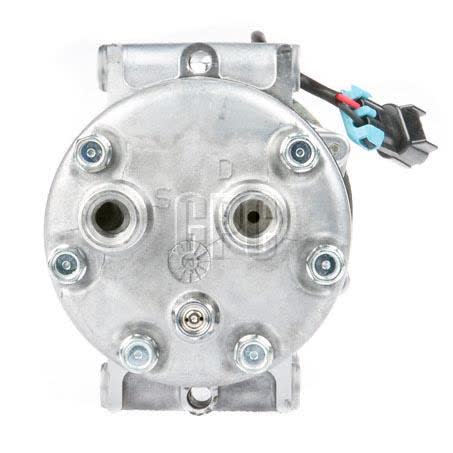

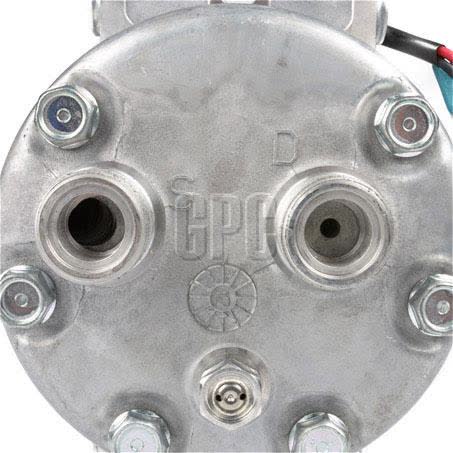

The fitting type is horizontal tube O ring, and the note supplied with the unit specifies O rings to suit ORX016 x 2. The head code is MDA Head, and the gauge line is 54.97mm. These details matter when comparing the replacement to the existing compressor, especially where the hose connection style, pulley layout, or mounting arrangement needs to match exactly.

Known application detail is provided for Freightliner models fitted with the ISX 14.9L engine, including Freightliner Cascadia ISX 14.9L from 01/2004 onward, Century Class CST120 ISX 14.9L from 01/1999 onward, and Columbia CL120 ISX 14.9L from 01/1999 onward. As with any air conditioning compressor, the vehicle’s existing part number, mounting style, connector type, and pulley configuration should be checked before ordering.

Key Features

• 12V Sanden air conditioning compressor
• SD7H15 series
• Direct mount compressor
• Horizontal tube O ring fitting
• 6 groove pulley section
• 125mm clutch diameter

Specifications

• Brand: Sanden
• Product type: Air conditioning compressor
• Part number: CXS4492
• Original equipment number: 4492
• Series: SD7H15
• Voltage: 12V
• Compressor mounting: Direct mount
• Fitting type: Horizontal tube O ring

Verified application details

• Freightliner Cascadia ISX 14.9L from 01/2004 onward
• Freightliner Century Class CST120 ISX 14.9L from 01/1999 onward
• Freightliner Columbia CL120 ISX 14.9L from 01/1999 onward

Application and Buying Notes

Before ordering, compare the existing compressor against CXS4492 and confirm the vehicle uses a Sanden SD7H15 direct mount layout with a 12V electrical setup. The 125mm clutch diameter, 6 groove pulley section, and horizontal tube O ring connection are all practical match points that can rule a part in or out quickly.

If you are replacing a failed compressor, inspect the line connections and mounting pattern on the vehicle before purchase. The listed note calls for O rings to suit ORX016 x 2, so the sealing arrangement should be checked at the same time as the hose type and head code. Small differences in connection style or pulley configuration can affect whether the part will fit correctly.

The supplied application details cover specific Freightliner models with ISX 14.9L engines, including Cascadia, Century Class CST120, and Columbia CL120. If the vehicle is not one of those applications, rely on the part number, mounting style, voltage, and connector details rather than assuming compatibility from appearance alone.

A compressor should always be matched carefully to the vehicle’s existing component, especially where the system has already been modified or repaired. Confirm the original equipment number 4492, the direct mount format, and the 54.97mm gauge line measurement before fitting. That approach reduces the risk of ordering a compressor that looks similar but does not suit the installation.

This compressor is supplied as each and carries a one year warranty, which is useful to know when planning the repair, but it does not replace the need to verify fitment first. Air conditioning components are sensitive to incorrect application, so checking the vehicle details, part number, and connection style is the best way to avoid unnecessary downtime.

Where possible, compare the old unit’s label, clutch dimensions, pulley grooves, and hose end style against the listed specifications. If the existing compressor is missing or unreadable, the model application and the part number CXS4492 become even more important for identification. Taking these checks seriously helps ensure the replacement aligns with the vehicle’s system requirements.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS4492 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Compressor Mounting Direct Mount, Original Equipment Number 4492, Series SD7H15, Voltage 12, Gauge Line 54.97mm, Head Code MDA Head.

Additional published details for cross-checking include Product Group 2 AC COMPONENTS, Part No. CXS4492, Brand SANDEN, Description Sanden Air Conditioning Compressor 12V Direct Mount SD7H15, Clutch Diameter 125mm, Fitting Type Horizontal Tube O Ring, Pulley Section 6 Groove, Suits Unit Make Sanden, Note Horizontal Tube O Ring, O Rings to suit ORX016 x 2, Dust Cover Y/N No.

Sanden Air Conditioning Compressor 12V Direct Mount SD7H15. Part number CXS4492 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

Compatibility note: Please confirm fitment using part number CXS4492, original equipment number 4492, and the vehicle’s compressor mounting, voltage, pulley, and hose connection details before purchase.

FAQ

What is the part number for this compressor?

The part number is CXS4492. The original equipment number listed is 4492.

What series is this compressor?

It is an SD7H15 series compressor from Sanden.

Is this a 12V unit?

Yes. The listed voltage is 12V.

What mounting and fitting type does it use?

It is a direct mount compressor with a horizontal tube O ring fitting.

Which vehicle applications are listed?

The listed applications are Freightliner Cascadia ISX 14.9L from 01/2004 onward, Freightliner Century Class CST120 ISX 14.9L from 01/1999 onward, and Freightliner Columbia CL120 ISX 14.9L from 01/1999 onward.

What sealing parts are noted with this compressor?

The note specifies O rings to suit ORX016 x 2.
