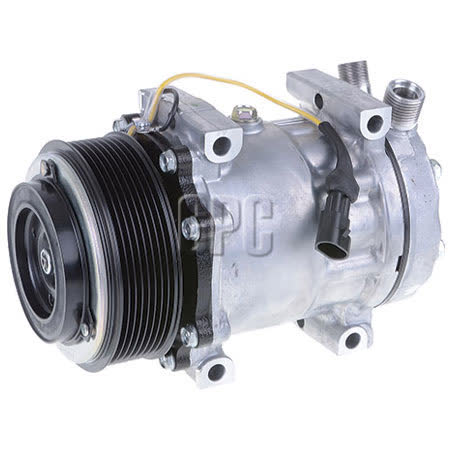

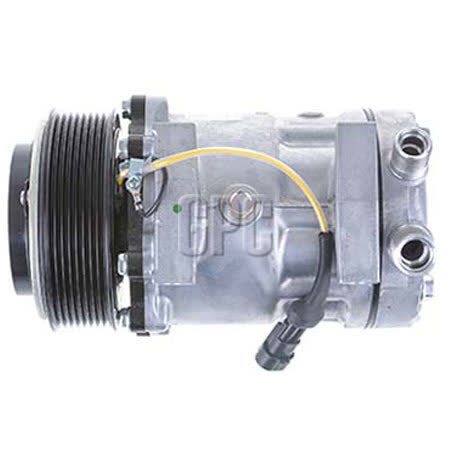

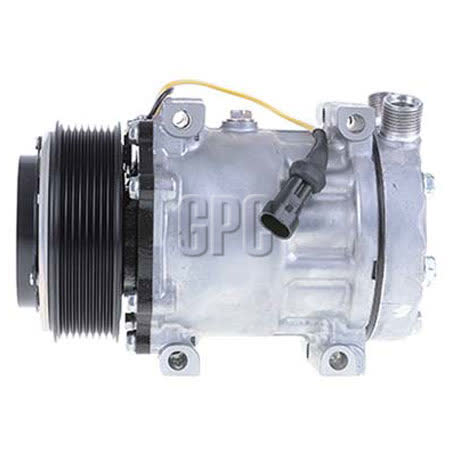

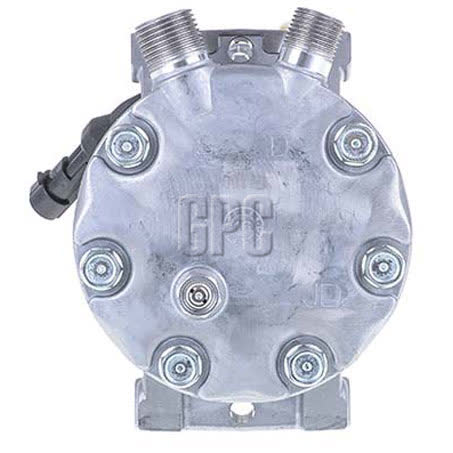

Sanden Air Conditioning Compressor 24V Direct Mount SD7H15 CXSA968

The Sanden SD7H15 air conditioning compressor is a 24V direct mount unit supplied as part number CXSA968. It is listed with an 8 groove pulley section, a 119mm clutch diameter, vertical O ring fitting type, and a rubber armature type.

This compressor is specified with a gauge line of 61.46mm, oil capacity of 240ml, and SP15 oil type noted. It has no dust cover, weighs 7.5kg, and carries a one year warranty.

The listed application notes include Caterpillar Backhoe 416 / 416C from 01/1986 onward, Caterpillar Excavator 345D/DL, 349DL, 374DL and 390DL from 01/2008 onward, Caterpillar Excavator 385C from 01/2007 onward, and Iveco Powerstar ISX 14.9L from 2010 onward. As with any compressor, the part number and mounting details should be checked carefully before ordering.

Key Features

• 24V Sanden SD7H15 compressor
• Direct mount design
• 8 groove pulley section

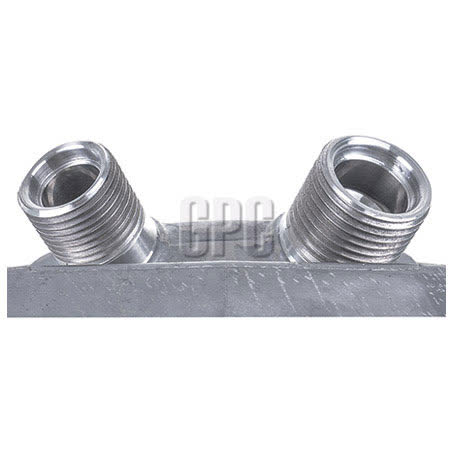

• Vertical O ring fitting type
• 119mm clutch diameter
• Rubber armature type

Specifications

• Brand: Sanden
• Part No.: CXSA968
• Series: SD7H15
• Type: Air conditioning compressor
• Voltage: 24
• Compressor mounting: Direct mount
• Pulley section: 8 groove
• Clutch diameter: 119mm

Listed application notes

• Caterpillar Backhoe 416 / 416C from 01/1986 onward
• Caterpillar Excavator 345D/DL, 349DL, 374DL and 390DL from 01/2008 onward
• Caterpillar Excavator 385C from 01/2007 onward
• Iveco Powerstar ISX 14.9L from 2010 onward

Application and Buying Notes

Before ordering, confirm the compressor mounting style, pulley section, clutch diameter and fitting type against the vehicle already fitted. This unit is a 24V direct mount SD7H15 with an 8 groove pulley, 119mm clutch diameter and vertical O ring connection, so those details matter just as much as the model name.

The part number CXSA968 is the safest reference point when matching the compressor. The listing also notes SP15 oil type, 240ml oil capacity, a 61.46mm gauge line and a long key shaft, which are all useful checkpoints when comparing an existing unit or replacement requirement.

Application notes are provided for certain Caterpillar backhoes and excavators, plus Iveco Powerstar ISX 14.9L from 2010 onward. Even where a model appears in the application list, final confirmation should still be made by checking the vehicle’s existing compressor, hose connections, pulley arrangement and any service information relevant to the machine or truck.

This compressor is supplied without a dust cover and weighs 7.5kg, so handling and installation should be planned accordingly. If the old unit shows signs of wear, damage or incorrect previous replacement, compare all visible features before fitting rather than relying on appearance alone.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXSA968 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Compressor Mounting Direct Mount, Pulley Section 8 Groove, Suits Unit Make Sanden, Note O Rings to Suit ORX008 & ORX010 . Oil Type SP15 , Long key shaft, Gauge Line 61.46mm, Dust Cover Y/N No, Weight 7.5kg.

Additional published details for cross-checking include Product Group 1 COOLING, Part No. CXSA968, Brand SANDEN, Description Sanden Air Conditioning Compressor 24V Direct Mount SD7H15, Clutch Diameter 119mm, Fitting Type Vertical O Ring, Series SD7H15, Voltage 24, Armature Type Rubber, Oil Capacity 240ml.

Sanden Air Conditioning Compressor 24V Direct Mount SD7H15. Part number CXSA968 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is 8 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXSA968, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment by matching part number CXSA968, the Sanden SD7H15 series, 24V electrical requirement, direct mount layout, 8 groove pulley section and vertical O ring fitting details with the vehicle or machine currently in service.

FAQ

What is the part number for this compressor?

The listed part number is CXSA968. For this listing, part number CXSA968 is the main reference point. Listed voltage is 24. Published fitment references include IVECO POWERSTAR, IVECO POWERSTAR 2010, IVECO POWERSTAR 2012. These details should still be checked against the original unit before ordering.

What voltage does this compressor use?

It is specified as 24V. For this listing, part number CXSA968 is the main reference point. Listed voltage is 24. Published fitment references include IVECO POWERSTAR, IVECO POWERSTAR 2010, IVECO POWERSTAR 2012. These details should still be checked against the original unit before ordering.

What compressor series is it?

The series is SD7H15. For this listing, part number CXSA968 is the main reference point. Listed voltage is 24. Published fitment references include IVECO POWERSTAR, IVECO POWERSTAR 2010, IVECO POWERSTAR 2012. These details should still be checked against the original unit before ordering.

What mounting style is listed?

It is a direct mount compressor. For this listing, part number CXSA968 is the main reference point. Listed voltage is 24. Published fitment references include IVECO POWERSTAR, IVECO POWERSTAR 2010, IVECO POWERSTAR 2012. These details should still be checked against the original unit before ordering.

Which applications are noted?

Listed applications include Caterpillar Backhoe 416 / 416C from 01/1986 onward, Caterpillar Excavator 345D/DL, 349DL, 374DL and 390DL from 01/2008 onward, Caterpillar Excavator 385C from 01/2007 onward, and Iveco Powerstar ISX 14.9L from 2010 onward. For this listing, part number CXSA968 is the main reference point. Listed voltage is 24. Published fitment references include IVECO POWERSTAR, IVECO POWERSTAR 2010, IVECO POWERSTAR 2012. These details should still be checked against the original unit before ordering.

What should be checked before buying?

Confirm the part number, 24V rating, direct mount layout, 8 groove pulley section, 119mm clutch diameter and vertical O ring fitting type against the existing unit or vehicle details. For this listing, part number CXSA968 is the main reference point. Listed voltage is 24. Published fitment references include IVECO POWERSTAR, IVECO POWERSTAR 2010, IVECO POWERSTAR 2012. These details should still be checked against the original unit before ordering.
