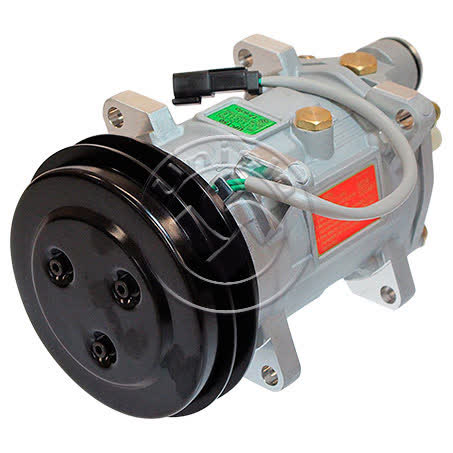

Unicla Air Conditioning Compressor 24V Ear Mount UP150 CXU7335

The Unicla Air Conditioning Compressor UP150 is a 24V unit with ear mount compressor mounting, GM horizontal pad fitting type, and part no. CXU7335. It is listed with a 138.5mm clutch diameter, A section pulley, 150ml oil capacity, and a dust cover included.

This compressor is identified as an Unicla unit and carries original equipment number 4604. It is supplied as each, weighs 7kg, and is noted with PAG 46 oil type and O ring to suit ORX017 x 2. Those details matter when matching the compressor to the vehicle and when preparing for installation.

Listed application details include Caterpillar dump truck models 769D, 773E, 775D/E/F and 785D, plus grader 14/16/120H from 01/1997 to 12/2007 and scraper 611 to 627 from 01/1999 to 12/2006. Fitment should still be checked against the compressor part number, mounting style, and the vehicle’s existing air conditioning hardware before purchase.

Key Features

• 24V air conditioning compressor
• Ear mount compressor mounting
• GM horizontal pad fitting type
• UP150 series
• Part no. CXU7335
• Original equipment number 4604

Specifications

• Brand: Unicla
• Product type: Air conditioning compressor
• Voltage: 24V
• Series: UP150
• Compressor mounting: Ear mount
• Fitting type: GM horizontal pad
• Clutch diameter: 138.5mm
• Pulley section: A

Verified application details

• Caterpillar dump truck 769D
• Caterpillar dump truck 773E
• Caterpillar dump truck 775D/E/F
• Caterpillar dump truck 785D
• Caterpillar grader 14/16/120H, 01/1997 to 12/2007
• Caterpillar scraper 611 to 627, 01/1999 to 12/2006

Application and Buying Notes

Before ordering, compare the part number CXU7335 and original equipment number 4604 with the compressor on the machine. The mounting style is ear mount, the fitting type is GM horizontal pad, and the pulley uses an A section belt, so those physical details need to line up with the existing setup.

The electrical side also needs to suit the machine because this compressor is a 24V unit. If the machine is not 24V, or if the clutch, pulley, or bracket arrangement differs, the compressor may not be suitable even where the model family is similar.

Installation details matter with air conditioning components. This unit is noted with 150ml oil capacity and PAG 46 oil type, and it uses O ring to suit ORX017 x 2. Matching the service parts and oil specification helps avoid delays during fit-up.

The listed applications cover specific Caterpillar dump truck, grader, and scraper models, but model designation alone is not enough to confirm fitment. Always check the compressor mounting, clutch diameter of 138.5mm, and the vehicle’s existing part details before committing to the purchase.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXU7335 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Compressor Mounting Ear Mount, Original Equipment Number 4604, Series UP150, Voltage 24, Oil Capacity 150ml, Weight 7kg, Product Group 1 COOLING.

Additional published details for cross-checking include Part No. CXU7335, Brand UNICLA, Description Unicla Air Conditioning Compressor 24V Ear Mount UP150, Clutch Diameter 138.5mm, Fitting Type GM Horizontal Pad, Pulley Section A, Suits Unit Make Unicla, Note O Ring to suit ORX017 x 2 Oil Type Pag 46 ., Dust Cover Y/N Yes.

Unicla Air Conditioning Compressor 24V Ear Mount UP150. Part number CXU7335 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is A. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXU7335, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Please confirm fitment using part number CXU7335, original equipment number 4604, 24V electrical requirement, ear mount style, GM horizontal pad fitting type, and the application details listed for your machine.

FAQ

What is the part number for this compressor?

The part number is CXU7335. For this listing, part number CXU7335 is the main reference point. Listed voltage is 24. Published fitment references include CATERPILLAR 120G, CATERPILLAR 120H, CATERPILLAR 12H. These details should still be checked against the original unit before ordering.

What voltage does this compressor use?

It is a 24V air conditioning compressor. For this listing, part number CXU7335 is the main reference point. Listed voltage is 24. Published fitment references include CATERPILLAR 120G, CATERPILLAR 120H, CATERPILLAR 12H. These details should still be checked against the original unit before ordering.

What mounting style does it have?

It is listed as an ear mount compressor. For this listing, part number CXU7335 is the main reference point. Listed voltage is 24. Published fitment references include CATERPILLAR 120G, CATERPILLAR 120H, CATERPILLAR 12H. These details should still be checked against the original unit before ordering.

What vehicles are listed as applications?

Listed applications include Caterpillar dump truck 769D, 773E, 775D/E/F and 785D, plus grader 14/16/120H from 01/1997 to 12/2007 and scraper 611 to 627 from 01/1999 to 12/2006. For this listing, part number CXU7335 is the main reference point. Listed voltage is 24. Published fitment references include CATERPILLAR 120G, CATERPILLAR 120H, CATERPILLAR 12H. These details should still be checked against the original unit before ordering.

What is the clutch diameter?

The clutch diameter is 138.5mm. For this listing, part number CXU7335 is the main reference point. Listed voltage is 24. Published fitment references include CATERPILLAR 120G, CATERPILLAR 120H, CATERPILLAR 12H. These details should still be checked against the original unit before ordering.

What oil information is provided?

The compressor is noted with 150ml oil capacity and PAG 46 oil type, and the note also specifies O ring to suit ORX017 x 2. For this listing, part number CXU7335 is the main reference point. Listed voltage is 24. Published fitment references include CATERPILLAR 120G, CATERPILLAR 120H, CATERPILLAR 12H. These details should still be checked against the original unit before ordering.
