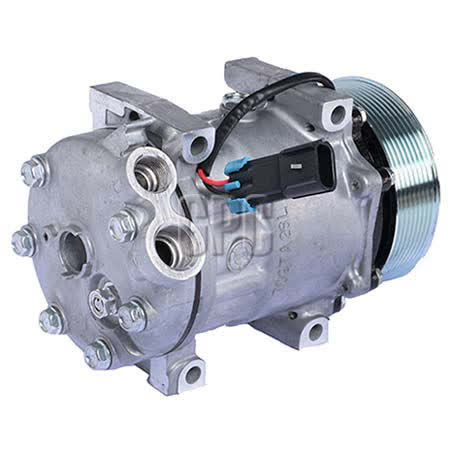

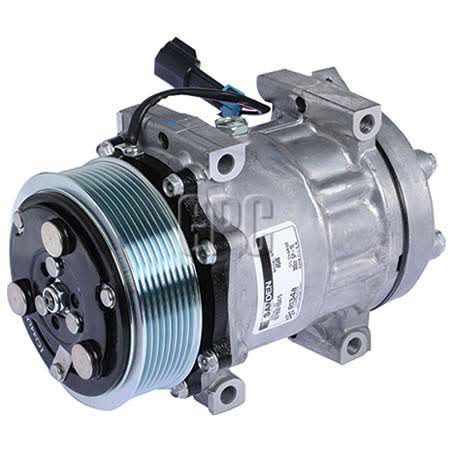

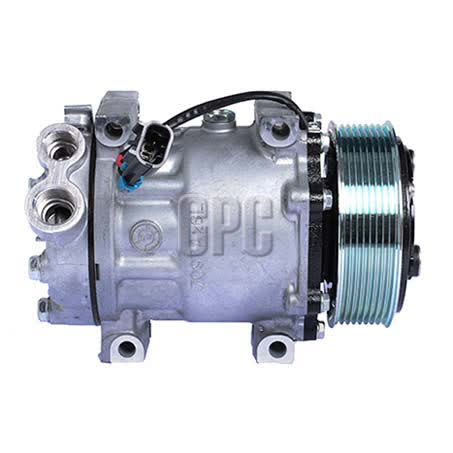

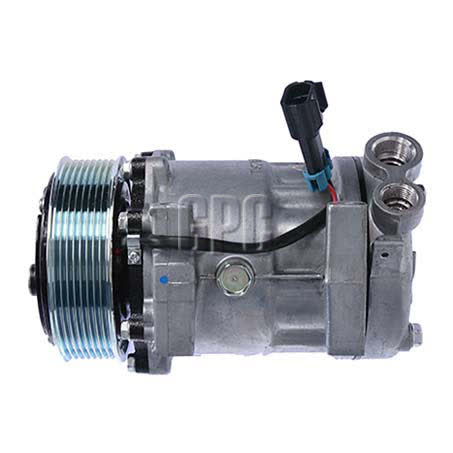

Sanden Air Conditioning Compressor 12V Direct Mount SD7H15 CXS4548

The Sanden SD7H15 air conditioning compressor is a 12V direct mount unit with part number CXS4548 and body number 4548. It is listed with a 119mm clutch diameter, 8 groove pulley section, vertical special pad fitting type, and WH head code, so it is important to match the mounting and pulley details to the vehicle before ordering.

This compressor is specified for Sanden units and carries the original equipment number 4548. It has a steel armature, weighs 5.2kg, and is supplied with an oil capacity of 300ml using SP15 oil. The notes also identify internal thread pad pad fittings and HPRV, which are useful checkpoints when confirming a replacement.

Verified application data includes Freightliner Argosy 60 Series 14.0L from 01/2000 onward, Freightliner Columbia CL120 60 Series 14.0L from 01/2003 onward, and Western Star 4864 and 4964FX 60 Series applications across the dates listed below. Because compressor fitment can vary with mounting style, pulley layout, and head code, the part number and physical specifications should be checked carefully against the vehicle already fitted.

Key Features

• 12V direct mount Sanden SD7H15 compressor
• Part number CXS4548 / body number 4548

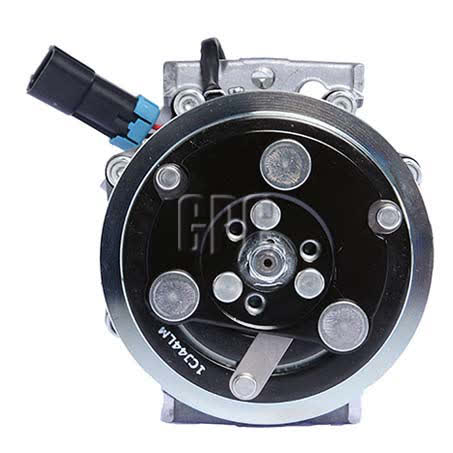

• 119mm clutch diameter
• 8 groove pulley section
• Vertical special pad fitting type

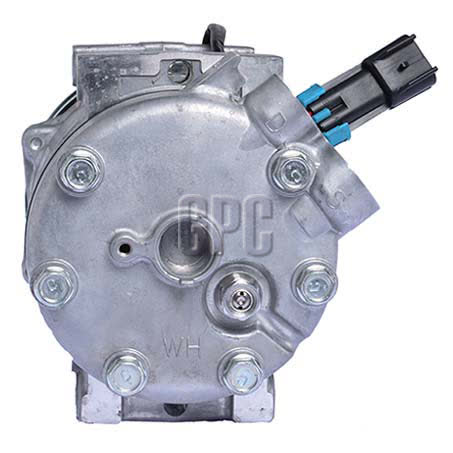

• WH head code

Specifications

• Brand: Sanden
• Product type: Air conditioning compressor
• Series: SD7H15
• Voltage: 12V
• Compressor mounting: Direct mount
• Fitting type: Vertical special pad
• Pulley section: 8 groove
• Clutch diameter: 119mm

Confirmed applications

• Freightliner Argosy 60 Series 14.0L from 01/2000 onwards
• Freightliner Columbia CL120 60 Series 14.0L from 01/2003 onwards
• Western Star 4864 60 Series 12.7L from 01/2009 to 12/2009
• Western Star 4864 60 Series 14.0L from 01/2009 to 12/2013
• Western Star 4964FX 60 Series 14.0L from 01/2009 to 12/2012

Application and Buying Notes

Before ordering, compare the existing compressor against the key identifiers on this unit: CXS4548, body number 4548, SD7H15 series, 12V voltage, and direct mount configuration. The 119mm clutch diameter, 8 groove pulley section, and vertical special pad fitting type are all critical physical checks because the same vehicle family can use different compressor arrangements.

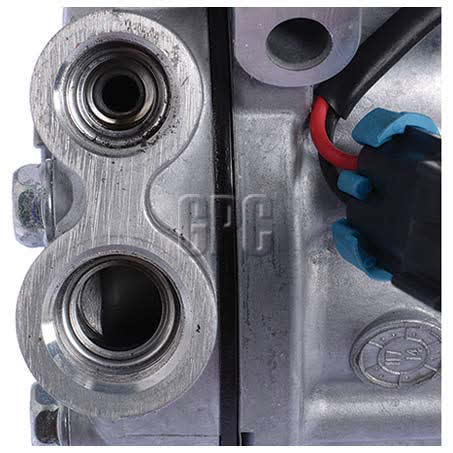

The fitting notes also call out internal thread pad pad fittings and HPRV, so those details should be matched to the compressor currently installed. If the old unit has a different head code, mounting face, or pulley section, do not assume the replacement will line up just because the vehicle is in one of the listed model ranges.

The one year warranty applies to the part as supplied, but it does not replace the need to verify fitment first. If the vehicle is a Freightliner Argosy, Freightliner Columbia CL120, or one of the listed Western Star applications, use the application range together with the part number and mounting details to make a final check before purchase.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS4548 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Clutch Diameter 119mm, Fitting Type Vertical Special Pad, Pulley Section 8 Groove, Suits Unit Make Sanden, Note Oil Type SP15 . Internal Thread Pad Pad fittings. HPRV, Gauge Line 61.5mm, Dust Cover Y/N No.

Additional published details for cross-checking include Weight 5.2kg, Product Group 1 COOLING, Part No. CXS4548, Brand SANDEN, Description Sanden Air Conditioning Compressor 12V Direct Mount SD7H15, Body Number 4548, Compressor Mounting Direct Mount, Original Equipment Number 4548, Series SD7H15, Voltage 12.

Sanden Air Conditioning Compressor 12V Direct Mount SD7H15. Part number CXS4548 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is 8 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXS4548, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FREIGHTLINER COLUMBIA, FREIGHTLINER COLUMBIA 2004, FREIGHTLINER COLUMBIA 2005, FREIGHTLINER COLUMBIA 2006. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is One Year. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment using part number CXS4548, body number 4548, SD7H15 series, 12V voltage, direct mount style, 119mm clutch diameter, 8 groove pulley section, and the vehicle application details listed above before ordering.

FAQ

What is the part number for this compressor?

The listed part number is CXS4548. The body number and original equipment number are both 4548.

What voltage is this compressor?

It is a 12V air conditioning compressor.

Which compressor series is it?

It is an SD7H15 series compressor.

What pulley and clutch details are listed?

The compressor is listed with an 8 groove pulley section and a 119mm clutch diameter.

What vehicles are listed as compatible?

Confirmed applications include Freightliner Argosy 60 Series 14.0L from 01/2000 onwards, Freightliner Columbia CL120 60 Series 14.0L from 01/2003 onwards, and the listed Western Star 4864 and 4964FX 60 Series applications.

What oil specification is noted?

The note specifies SP15 oil and an oil capacity of 300ml.
