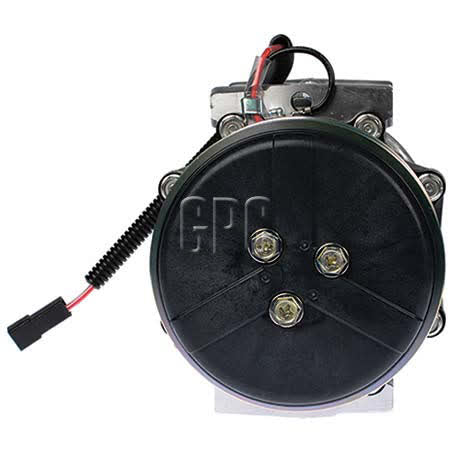

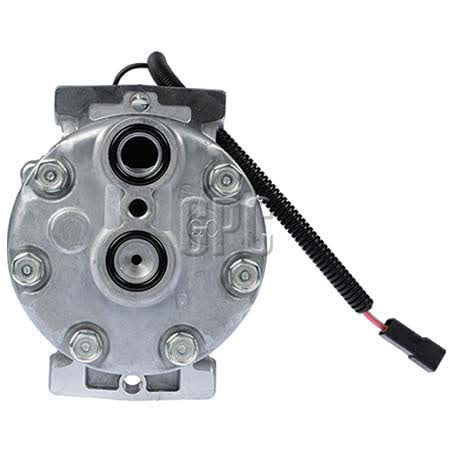

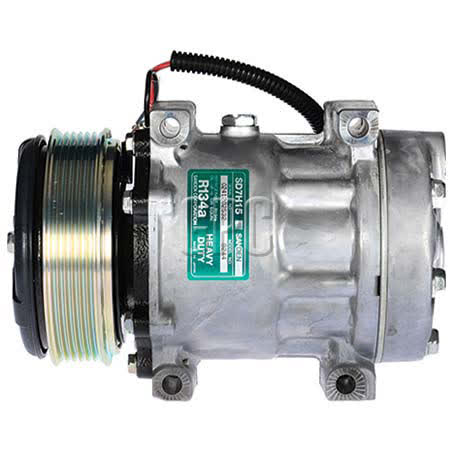

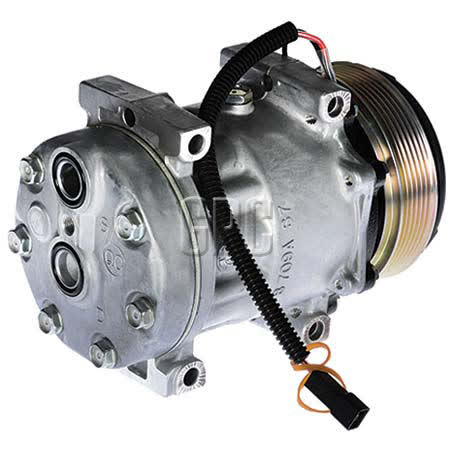

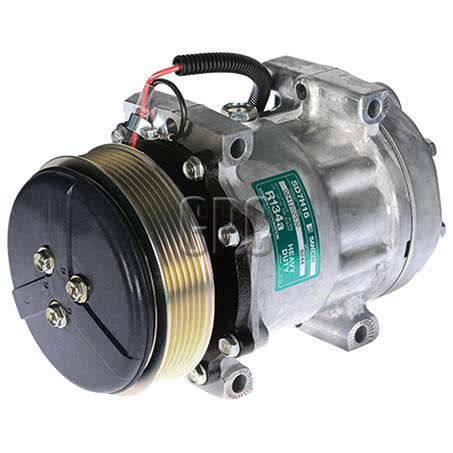

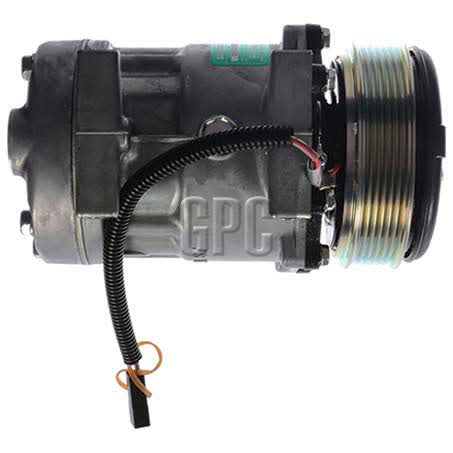

Sanden Air Conditioning Compressor 12V Direct Mount SD7H15 Part No. CXS8244

The Sanden SD7H15 air conditioning compressor is a 12V direct mount unit supplied under part number CXS8244. It is listed with original equipment number 8244, pad fitting type, a 6 groove pulley section, and a 120mm clutch diameter, making the mounting and drive details easy to compare against the unit being replaced.

This compressor is noted with a QC head, a dust cover, and a gauge line measurement of 56.55mm. The listed oil capacity is 190ml and the specified oil type is SP10, with O rings to suit ORX017 x 2. Those details are important when matching the compressor to the rest of the air conditioning system and when preparing the unit for installation.

Sanden identifies this unit r conditioning compressor in the SD7H15 series, weighing 6.5kg and sold individually as each. The warranty is one year. The listed application information includes Massey Ferguson tractors such as 1080 to 1085 from 01/1969 onward, Tractor 175 to 194 from 01/1964 onward, and Tractor 3050 from 01/1987 onward, so matching by part number and application details remains essential.

Key Features

• 12V Sanden air conditioning compressor
• SD7H15 series with direct mount compressor mounting
• Part number CXS8244
• Original equipment number 8244
• Pad fitting type with 6 groove pulley
• 120mm clutch diameter

Specifications

• Voltage: 12V
• Oil capacity: 190ml
• Oil type: SP10
• Gauge line: 56.55mm
• Clutch diameter: 120mm
• Pulley section: 6 groove
• Compressor mounting: Direct mount
• Fitting type: Pad

Listed Applications

• Massey Ferguson Tractor 1080 - 1085 from 01/1969 onward
• Massey Ferguson Tractor 175 - 194 from 01/1964 onward
• Massey Ferguson Tractor 3050 from 01/1987 onward
• Massey Ferguson 185
• Massey Ferguson 194-4
• Massey Ferguson 3060
• Massey Ferguson 3065
• Massey Ferguson 3070

Application and Buying Notes

When comparing this compressor, start with the part number CXS8244 and the original equipment number 8244, then confirm the direct mount layout, pad fitting type, and 6 groove pulley section against the unit already fitted to the machine. The clutch diameter is 120mm, which is another useful check before ordering.

The service details matter as much as the mounting details. This unit is specified for 12V operation, with 190ml oil capacity and SP10 oil type, and the note calls for O rings to suit ORX017 x 2. If those service items do not line up with the system being worked on, the compressor should not be assumed to be a direct replacement without further checking.

The listed application range is broad and includes several Massey Ferguson models, along with Challenger MT and Valtra S and T Series references. Even where a model name appears in the listing, it is still worth confirming the exact machine variant, year range, and existing compressor details before purchase, especially on older tractors where specification changes can occur.

The dust cover, QC head, and 56.55mm gauge line are practical details for installers and parts interpreters because they help confirm the physical configuration of the compressor. If you are replacing a failed unit, compare these points to the removed compressor and to the vehicle or tractor service information to reduce the chance of ordering the wrong part.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS8244 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Compressor Mounting Direct Mount, Original Equipment Number 8244, Series SD7H15, Voltage 12, Gauge Line 56.55mm, Dust Cover Y/N Yes, Weight 6.5kg.

Additional published details for cross-checking include Product Group 1 COOLING, Part No. CXS8244, Brand SANDEN, Description Sanden Air Conditioning Compressor 12V Direct Mount SD7H15, Clutch Diameter 120mm, Fitting Type Pad, Pulley Section 6 Groove, Suits Unit Make Sanden, Note O Rings to Suit ORX017 x 2 . Oil Type SP10, Oil Capacity 190ml.

Sanden Air Conditioning Compressor 12V Direct Mount SD7H15. Part number CXS8244 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXS8244, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include CHALLENGER MT, CHALLENGER MT 2007, CHALLENGER MT 2008, CHALLENGER MT 2009, MASSEY FERGUSON 185, MASSEY FERGUSON 194-4. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by matching part number CXS8244 and OEM 8244, then checking the direct mount, pad fitting, 6 groove pulley, 120mm clutch diameter, 12V rating, and the specific machine application before buying.

FAQ

What is the part number for this compressor?

The listed part number is CXS8244.

What is the voltage rating?

It is a 12V air conditioning compressor.

What compressor series is it?

It is listed as SD7H15.

What mounting and fitting style does it use?

The compressor mounting is direct mount and the fitting type is pad.

What pulley and clutch details are listed?

The pulley section is 6 groove and the clutch diameter is 120mm.

What vehicles or machines are listed as applications?

Listed applications include Massey Ferguson Tractor 1080 to 1085 from 01/1969 onward, Tractor 175 to 194 from 01/1964 onward, Tractor 3050 from 01/1987 onward, plus additional Massey Ferguson, Challenger MT, and Valtra S and T Series references.
