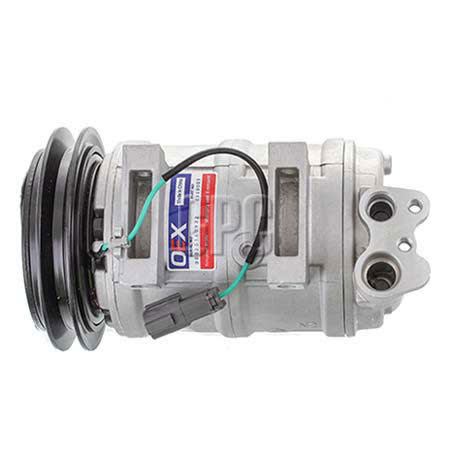

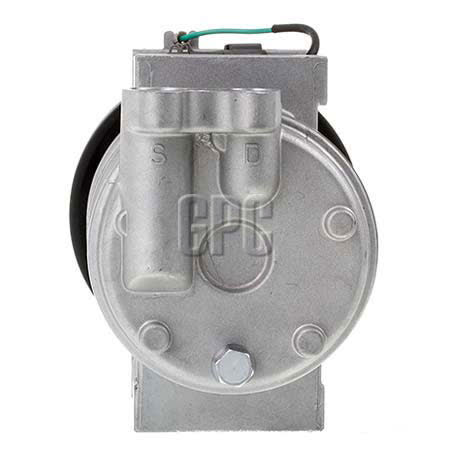

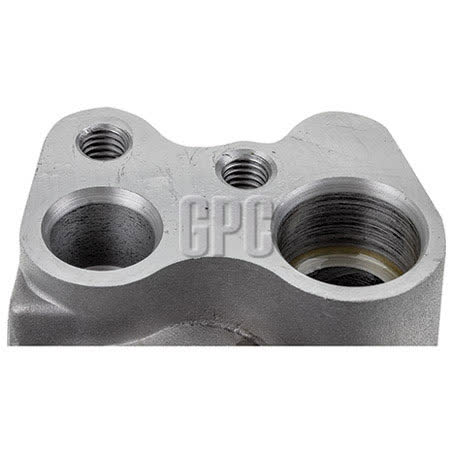

OEX Air Conditioning Compressor 24V Direct Mount Diesel Kiki DKS15D Style CXZ0003

The OEX air conditioning compressor is a 24V direct mount unit in Diesel Kiki DKS15D style, supplied as part number CXZ0003. It is listed with a pad fitting type, B section pulley, 137mm clutch diameter, and 180ml oil capacity, so it is important to compare those details with the vehicle’s existing compressor before ordering.

This compressor is identified with original equipment numbers 719002447 and 787B244279, and it is described for Diesel Kiki units. The mounting style is direct mount and the unit weight is 6.8kg, which are useful checks when matching replacement hardware and confirming the physical arrangement on the machine.

Fitment information provided for this part points to Hitachi excavator applications, including ZX200 Series from 01/2001 onwards. Because compressor fitment can vary by machine build and air conditioning setup, the part number, mounting type, voltage, and compressor style should all be checked together rather than relying on one detail alone.

Key Features

• 24V air conditioning compressor
• Direct mount design
• Diesel Kiki DKS15D style
• Pad fitting type
• 137mm clutch diameter
• B section pulley

Specifications

• Brand: OEX
• Part No.: CXZ0003
• Original Equipment Numbers: 719002447 / 787B244279
• Voltage: 24
• Compressor Mounting: Direct Mount
• Suits Unit Make: Diesel Kiki
• Series: DKS15D Style
• Weight: 6.8kg

Confirmed fitment guidance

• Hitachi Excavator ZX200 Series from 01/2001 onwards
• Hitachi ZX200LC
• Hitachi ZX200LC 2006
• Hitachi ZX200LC 2007
• Hitachi ZX200LC 2008
• Hitachi ZX200LC 2009
• Hitachi ZX200LC 2010
• Hitachi ZX200LC-3

Application and Buying Notes

Before ordering, confirm that the existing compressor is a 24V Diesel Kiki DKS15D style unit with direct mount arrangement and pad fitting. Those identifiers matter because air conditioning compressors can look similar while differing in mounting pattern, clutch size, pulley section, or electrical specification.

The listed clutch diameter is 137mm and the pulley is B section, so those dimensions should be compared against the compressor currently fitted to the machine. The oil capacity is 180ml, and the unit weighs 6.8kg, both of which are useful reference points when checking the replacement against the old part and associated hardware.

The part numbers CXZ0003, 719002447, and 787B244279 are the strongest identifiers for matching. If the machine model is within the Hitachi ZX200 family or the other listed ZX applications, verify the exact build year and existing compressor details before fitting, as air conditioning components can vary within a model line.

A one year warranty is listed for this compressor, which provides a clear replacement period for the part itself. As with any compressor replacement, the rest of the air conditioning system should be assessed for contamination, wear, and correct refrigerant service before the new unit is put into operation.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXZ0003 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Compressor Mounting Direct Mount, Original Equipment Number 719002447 / 787B244279, Series DKS15D Style, Voltage 24, Oil Capacity 180ml, Weight 6.8kg, Product Group 1 COOLING.

Additional published details for cross-checking include Part No. CXZ0003, Brand OEX, Description OEX Air Conditioning Compressor 24V Direct Mount Diesel Kiki DKS15D Style, Clutch Diameter 137mm, Fitting Type Pad, Pulley Section B, Suits Unit Make Diesel Kiki, Note DKS15D, Dust Cover Y/N No.

OEX Air Conditioning Compressor 24V Direct Mount Diesel Kiki DKS15D Style. Part number CXZ0003 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is B. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXZ0003, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment by matching the part number, OEM numbers, mounting type, voltage, clutch diameter, pulley section, and the machine’s exact application before purchase. Do not rely on model name alone.

FAQ

What type of compressor is this?

It is an OEX air conditioning compressor in Diesel Kiki DKS15D style, with a direct mount arrangement and 24V specification. For this listing, part number CXZ0003 is the main reference point. Listed voltage is 24. Published fitment references include HITACHI ZX200LC, HITACHI ZX200LC 2006, HITACHI ZX200LC 2007. These details should still be checked against the original unit before ordering.

What part number should I check against my old unit?

The listed part number is CXZ0003. The original equipment numbers are 719002447 and 787B244279. For this listing, part number CXZ0003 is the main reference point. Listed voltage is 24. Published fitment references include HITACHI ZX200LC, HITACHI ZX200LC 2006, HITACHI ZX200LC 2007. These details should still be checked against the original unit before ordering.

What machine applications are listed for this compressor?

The supplied fitment information points to Hitachi ZX200 Series from 01/2001 onwards, including ZX200LC, ZX200LC-3, ZX330-3/LC-3, and ZX350LC-3 applications. For this listing, part number CXZ0003 is the main reference point. Listed voltage is 24. Published fitment references include HITACHI ZX200LC, HITACHI ZX200LC 2006, HITACHI ZX200LC 2007. These details should still be checked against the original unit before ordering.

What are the key mounting and size details?

The compressor is listed as direct mount with a pad fitting type, 137mm clutch diameter, and B section pulley. For this listing, part number CXZ0003 is the main reference point. Listed voltage is 24. Published fitment references include HITACHI ZX200LC, HITACHI ZX200LC 2006, HITACHI ZX200LC 2007. These details should still be checked against the original unit before ordering.

How much oil does it take?

The listed oil capacity is 180ml. For this listing, part number CXZ0003 is the main reference point. Listed voltage is 24. Published fitment references include HITACHI ZX200LC, HITACHI ZX200LC 2006, HITACHI ZX200LC 2007. These details should still be checked against the original unit before ordering.

Is there a warranty?

Yes. A one year warranty is listed for this compressor. For this listing, part number CXZ0003 is the main reference point. Listed voltage is 24. Published fitment references include HITACHI ZX200LC, HITACHI ZX200LC 2006, HITACHI ZX200LC 2007. These details should still be checked against the original unit before ordering.
