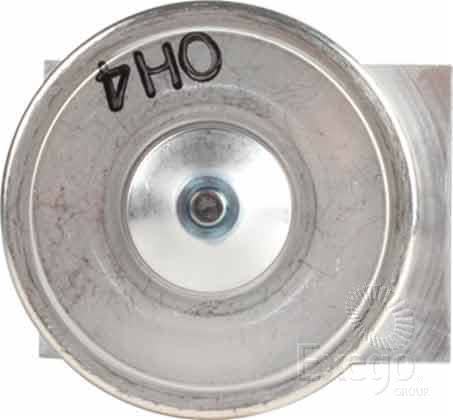

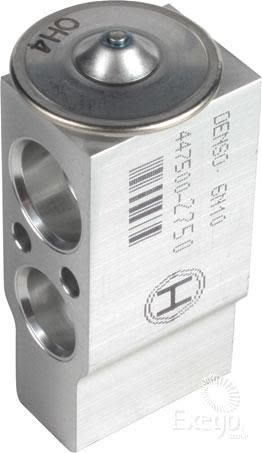

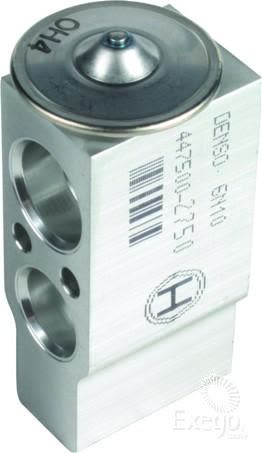

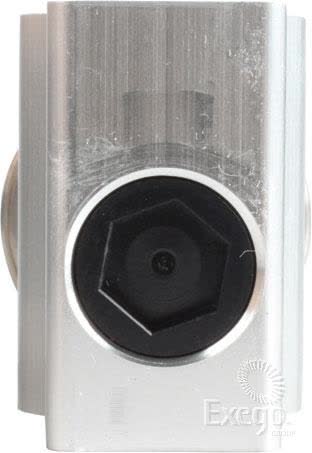

Denso Air Conditioning TX Valve Block Pad 1.5 Ton TXX2750

The Denso Air Conditioning TX Valve Block Pad is a 1.5 ton unit sold each, with part number TXX2750. It is listed as a TX valve, block style, with a pad mounting arrangement and Denso branding, making it a specific climate control component rather than a universal replacement.

The unit weight is listed at .18 kg and the warranty is one year. Those details do not confirm fitment on their own, but they do help when comparing the replacement against the existing valve and when checking that the order matches the intended air conditioning repair.

Key Features

• Denso air conditioning TX valve
• Block style, pad type
• 1.5 ton rating
• Part number TXX2750
• Outlet fitting #8
• Inlet fitting #6

Specifications

• Brand: Denso
• Product type: Air conditioning TX valve
• TX style: Block - Pad
• TX type: Block
• Tonnage: 1.5
• Unit of measure: Each
• Part number: TXX2750
• Inlet fitting: #6

Known application groups

• Caterpillar excavator applications from 2005 onward
• Forestry machine applications from 2014 onward
• Komatsu dozer applications from 2006 onward
• Excavator applications from 2002 onward
• Kubota tractor applications from 1998 onward
• Recorded application examples include Caterpillar 307D, 320D, 321CLCR, 324DL, 325D, 329D, 330D, 336D, 345D, 349DL, 365C/CL, 374DL, 385C/CL and 390D
• Recorded application examples include Komatsu D155AX-6, D65PX-16, HB205-1, HB215LC-1, PC130-7, PC160-7/LC-7, PC200-7/LC-7, PC200-8/LC-8, PC220-7/LC-7, PC270-7, PC300LC-7, PC300LC-8, PC350LC-8, PC400LC-7, PC450-7EO, PC800-8, PC850-8 and WA600-6
• Recorded application examples include Kubota RTV1100, SERIES-L and SERIES-M

Application and Buying Notes

When replacing a TX valve, the first checks should be the part number TXX2750, the 1.5 ton rating, and the fitting sizes. This valve is not a generic universal piece; the #6 inlet, #8 outlet, #10 suction inlet, and #10 suction outlet need to match the existing system layout before installation is attempted.

Application data points to several heavy equipment families, but the safest approach is still to verify the machine model, year range, and existing valve details against the part number. Caterpillar, Komatsu, and Kubota are all listed, yet the exact model and build date should be matched carefully because air conditioning components can vary within a model series.

This valve is sold as one each and carries a one year warranty. Before ordering, it is sensible to confirm whether the existing unit is a block style pad TX valve and to check that the suction and outlet fittings are the same as the replacement, since mismatched connections can stop the part from being suitable even when the brand is correct.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number TXX2750 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING TX VALVE, Unit of Measure EACH, Warranty One Year, Outlet Fitting #8, Tonnage 1.5, Note Inlet: (10.10mm) Outlet: (18.30mm) Suction Inlet: (15.50mm) Suction Outlet: (18.30mm), TX Style Block - Pad, Product Group 2 AC COMPONENTS, Part No. TXX2750.

Additional published details for cross-checking include Brand DENSO, Description Denso Air Conditioning TX Valve Block Pad 1.5 Ton, Inlet Fitting #6, Suction Inlet Fitting #10, TX Type Block, Suction Outlet Fitting #10, Weight .18kg, Product Group 1 COOLING.

Denso Air Conditioning TX Valve Block Pad 1.5 Ton. Part number TXX2750 should be checked first. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number TXX2750, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning tx valve in workshop, fleet, trade, agricultural, or construction service, the listed electrical specification should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include CATERPILLAR 307D, CATERPILLAR 307D 2008, CATERPILLAR 307D 2009, CATERPILLAR 307D 2010, KOMATSU D155AX-6, KOMATSU D155AX-6 2006. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is One Year. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Please confirm fitment with part number TXX2750, the 1.5 ton block pad style, and the listed fitting sizes before purchase. Application details are provided for guidance only, so the machine model, year range, and existing valve configuration should be checked against the replacement part.

FAQ

What is the part number for this Denso TX valve?

The part number listed is TXX2750. For this listing, part number TXX2750 is the main reference point. Published fitment references include CATERPILLAR 307D, CATERPILLAR 307D 2008, CATERPILLAR 307D 2009. These details should still be checked against the original unit before ordering.

What style of TX valve is this?

It is a block style TX valve with a pad mounting arrangement. For this listing, part number TXX2750 is the main reference point. Published fitment references include CATERPILLAR 307D, CATERPILLAR 307D 2008, CATERPILLAR 307D 2009. These details should still be checked against the original unit before ordering.

What tonnage is listed for this valve?

The listed tonnage is 1.5 ton. For this listing, part number TXX2750 is the main reference point. Published fitment references include CATERPILLAR 307D, CATERPILLAR 307D 2008, CATERPILLAR 307D 2009. These details should still be checked against the original unit before ordering.

What fittings are specified on this valve?

The valve is listed with inlet fitting #6, outlet fitting #8, suction inlet fitting #10, and suction outlet fitting #10. For this listing, part number TXX2750 is the main reference point. Published fitment references include CATERPILLAR 307D, CATERPILLAR 307D 2008, CATERPILLAR 307D 2009. These details should still be checked against the original unit before ordering.

Which machine groups are shown as suitable?

The listed application groups include Caterpillar excavator applications from 2005 onward, forestry machine applications from 2014 onward, Komatsu dozer applications from 2006 onward, excavator applications from 2002 onward, and Kubota tractor applications from 1998 onward. For this listing, part number TXX2750 is the main reference point. Published fitment references include CATERPILLAR 307D, CATERPILLAR 307D 2008, CATERPILLAR 307D 2009. These details should still be checked against the original unit before ordering.

What warranty is supplied with this part?

The supplied warranty is one year. For this listing, part number TXX2750 is the main reference point. Published fitment references include CATERPILLAR 307D, CATERPILLAR 307D 2008, CATERPILLAR 307D 2009. These details should still be checked against the original unit before ordering.
