Bosch Alternator 12V 150A Remanufactured 0986041750

This Bosch alternator is a 12V, 150A unit with part number 0986041750 and OEM number 12317508054. It is a remanufactured alternator with an internal regulator, a 7 groove multi-belt pulley, and clockwise rotation, so the key electrical and mechanical details are clearly defined before purchase.

It is listed as a water cooled alternator with a single leg mount and flange mounting. The pulley outside diameter is 49mm, the distance from the pulley to the alternator is 41, and the alternator type is noted as excl. vacuum pump. Those details matter when you are matching the physical layout as well as the electrical output.

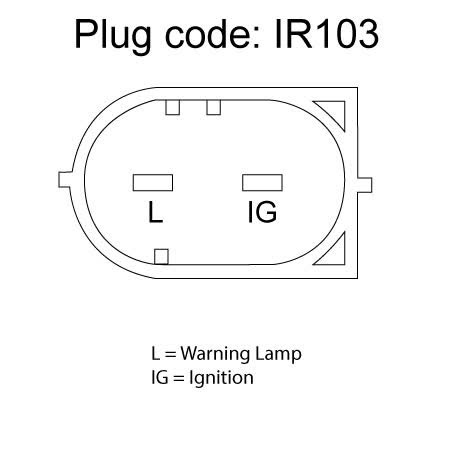

Bosch identifies this unit with pin code IR103 and recommends V-Belt/V-Ribbed Belt additional repairs where required. The product is supplied as each, carries a one year warranty, and suits Bosch application listings where the specified part numbers and mounting details match.

Key Features

• 12V, 150A alternator
• Bosch part number 0986041750
• OEM number 12317508054
• 7 groove multi-belt pulley
• Clockwise rotation
• Internal regulator

Specifications

• Brand: Bosch
• Product type: Alternator
• Unit of measure: Each
• Power rating: 150A
• Voltage: 12V
• Pulley section: 7 groove
• Number of grooves: 7
• Pulley outside diameter: 49mm

Fitment Guidance

• Fitment data supplied includes BMW 5, BMW 7, BMW X5 and Land Rover Range Rover applications.
• Sample application coverage shown includes BMW 5 from 1996 through 2003.
• Sample application coverage shown includes BMW 7 from 1996 through 1997.
• Sample application coverage shown includes Land Rover Range Rover from 2002 through 2005.

Application and Buying Notes

Before ordering, check the Bosch part number 0986041750 and OEM number 12317508054 against the old alternator and the vehicle application. The fitment list supplied includes BMW and Land Rover applications, but the exact vehicle match still needs to be confirmed by part number, mounting style, pulley section, and rotation.

The 150A output and 12V system rating should be matched to the vehicle’s charging requirements. The alternator is listed with a 7 groove pulley, 49mm pulley outside diameter, clockwise rotation, and a single leg flange mount, so those physical details must line up with the original unit.

This alternator is noted as water cooled and as an alternator type excl. vacuum pump. That is important because cooling arrangement and accessory layout can affect interchange, even when the vehicle make appears in the fitment list.

If the vehicle has had previous repairs or conversion work, take extra care with the belt system and mounting point. The listing also notes recommended additional repairs as V-Belt/V-Ribbed Belt, which is a useful reminder to inspect the belt condition when replacing the alternator.

The internal regulator and reduction drive are part of the unit’s specification, so the replacement should be considered as a complete match to the electrical and mechanical design rather than only a visual match. Confirm the pin code IR103 where relevant to your application checks.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 0986041750 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty One Year, Power Rating (Amp) 150, Pulley Section 7 Groove, Rotation CW, Voltage 12, Alternator Mount Single Leg, OEM Number 12317508054, Fastening Type Flange mounting.

Additional published details for cross-checking include Alternator Type excl. vacuum pump, Distance from pulley to the alternator 41, Packaging length 23.9, Packaging height 20, Product Group 2 ALTERNATORS, Part No. 0986041750, Brand BOSCH, Description Bosch Alternator 12V 150A, Pin Code IR103.

Bosch Alternator 12V 150A. Part number 0986041750 should be checked first. Listed voltage is 12. Listed output rating is 150. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Single Leg. Regulator type is Internal. Pulley configuration is 7 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number 0986041750, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 150 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include BMW 5, BMW 5 1996, BMW 5 1997, BMW 5 1998, LAND ROVER RANGE ROVER, LAND ROVER RANGE ROVER 2002. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment using part number 0986041750, OEM number 12317508054, and the listed application details before purchase. Do not rely on vehicle make alone; check voltage, amperage, pulley section, rotation, mount type, and whether the original unit is water cooled and excl. vacuum pump.

FAQ

What is the voltage and output of this alternator?

It is a 12V alternator rated at 150A.

What part numbers are listed for this unit?

The listed Bosch part number is 0986041750 and the OEM number is 12317508054.

What type of pulley does it use?

It has a 7 groove multi-belt pulley with a 49mm outside diameter.

Is the regulator internal or external?

The regulator type is internal.

What mounting style is listed?

It is listed with a single leg alternator mount and flange mounting.

Which vehicles are shown in the fitment information?

The supplied fitment information includes BMW 5, BMW 7, BMW X5 and Land Rover Range Rover applications, with sample year coverage shown for BMW 5 from 1996 to 2003 and Land Rover Range Rover from 2002 to 2005.
