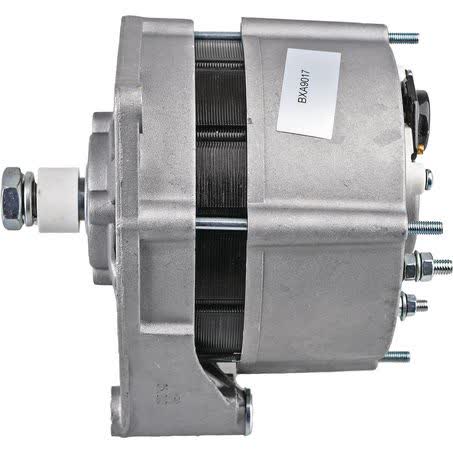

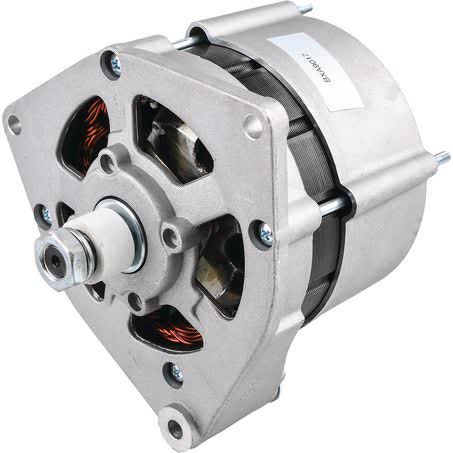

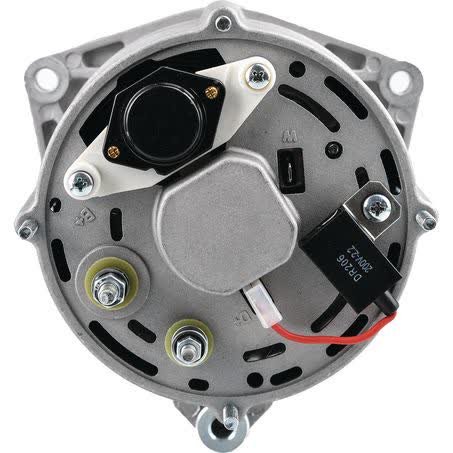

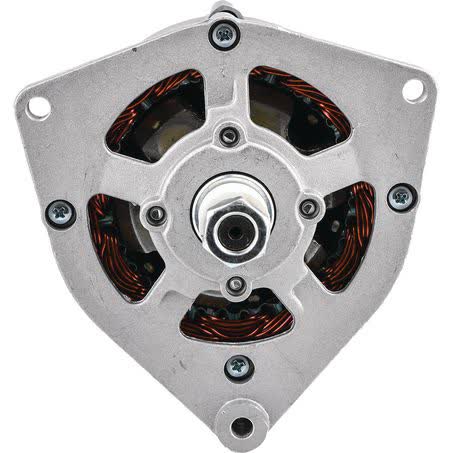

OEX Alternator 12V 80A Bosch Style BXA9017

The OEX Alternator 12V 80A Bosch Style, part number BXA9017, is a new alternator built for 12 volt systems with an 80 amp power rating. It uses an internal regulator and is listed as a single leg alternator with a mount centre-to-centre measurement of 144mm.

This unit is specified with a 56mm mount leg thickness, 8mm pivot hole diameter, 8mm adjusting hole diameter and a 17mm shaft diameter. The pulley section is noted as not applicable, so the physical mounting and shaft details are the main checks before purchase.

OEX states that its products are sourced from market leading Original Equipment Manufacturers and aftermarket suppliers, and that they are sourced from ISO certified factories. The alternator is backed by a 3 year passenger and 1 year commercial warranty, which is a useful point of reference when comparing replacement options.

The description also notes that it suits Bosch units. For buyers matching a replacement alternator, the part number BXA9017 and the Bosch style application details should be confirmed against the removed unit before ordering.

Key Features

• New alternator
• 12V, 80A output
• Internal regulator
• Single leg mount
• Bosch style application
• Suits Bosch unit make

Specifications

• Part No.: BXA9017
• Brand: OEX
• Type: Alternator
• Voltage: 12V
• Power Rating: 80A
• Regulator Type: Internal
• Alternator Mount: Single Leg
• Mount Cnt to Cnt: 144mm

Verified application references

• Suits Bosch unit make
• Application references include AGCO Allis, Bomag, Claas, Deutz, Deutz-Fahr, Fendt, International Harvester, Lamborghini, Mercedes-Benz, New Holland, Vermeer and VM Motori
• Sample listed applications include AGCO Allis 9670 and 9690, Bomag BC601RB, Claas Dominator, Deutz F3L913, Deutz-Fahr Agroprima and Agrostar, Fendt Farmer, International Harvester 3964 and 3965, Lamborghini Jalpa, New Holland 8055, 8060 and 8080, Vermeer LM42, T400B, V3550A, V4150 and V4150A, and VM Motori HR494HP, HR494HT, HR494HT10 and HR694HHT

Application and Buying Notes

Before ordering, compare the part number BXA9017 with the removed alternator and check that the unit is Bosch style, 12V and 80A. The mount layout also matters here: this alternator is listed as a single leg design with 144mm mount centre-to-centre, 56mm mount leg thickness, and 8mm pivot and adjusting holes.

The shaft diameter is 17mm and the pulley section is listed as not applicable, so the physical drive and mounting arrangement should be checked against the old unit. Those measurements are often the quickest way to rule a match in or out when the vehicle application is broad.

Because the fitment data spans multiple agricultural, industrial and vehicle applications, the safest buying approach is to verify the application details rather than relying on the model name alone. The listed references are helpful, but the correct match still depends on the actual unit fitted to the machine.

The alternator is new and has an internal regulator, which needs to align with the electrical setup already on the vehicle. If the existing alternator differs in regulator type, mount style or shaft size, it should be checked carefully before purchase.

OEX lists a 3 year passenger and 1 year commercial warranty for this alternator. Warranty terms are useful, but they do not replace fitment confirmation, especially where the same model range may use different charging components across different build years or engine variants.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXA9017 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Leg Thickness 56mm, Pivot Hole Diameter 8, Pulley Section Not Applicable, Shaft Diameter 17mm, Voltage 12, Mount Cnt to Cnt 144mm, Shaft Dimension 17.

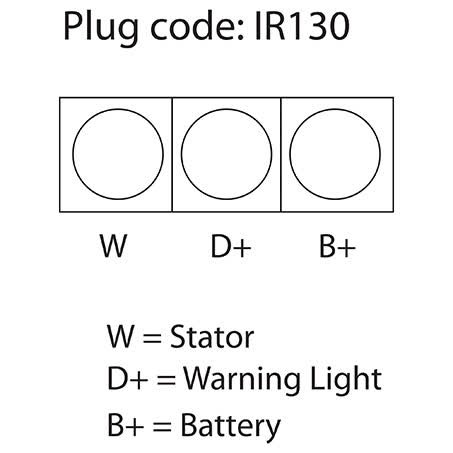

Additional published details for cross-checking include Product Group 2 ALTERNATORS, Part No. BXA9017, Brand OEX, Description OEX Alternator 12V 80A Bosch Style, Adjusting Hole Diameter 8, Pin Code IR130, Power Rating (Amp) 80, Regulator Type Internal, Suits Unit Make Bosch.

OEX Alternator 12V 80A Bosch Style. Part number BXA9017 should be checked first. Listed voltage is 12. Listed output rating is 80. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Single Leg. Regulator type is Internal. Pulley configuration is Not Applicable. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number BXA9017, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 80 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include AGCO ALLIS 9670, AGCO ALLIS 9670 1994, AGCO ALLIS 9670 1995, AGCO ALLIS 9670 1996, BOMAG BC601RB, BOMAG BC601RB 1996. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment using part number BXA9017, the Bosch style application, and the listed mounting and shaft measurements before purchase. Do not rely on vehicle name alone where the application is broad.

FAQ

Is this alternator new or remanufactured?

It is listed as new.

What is the voltage and output rating?

It is a 12V alternator with an 80A power rating.

Does it use an internal regulator?

Yes. The regulator type is listed as internal.

What mounting details should be checked?

Check the single leg mount, 144mm mount centre-to-centre, 56mm mount leg thickness, and the 8mm pivot and adjusting hole diameters.

What shaft size does it use?

The shaft diameter is listed as 17mm.

What warranty is listed for this alternator?

OEX lists a 3 year passenger warranty and a 1 year commercial warranty.
