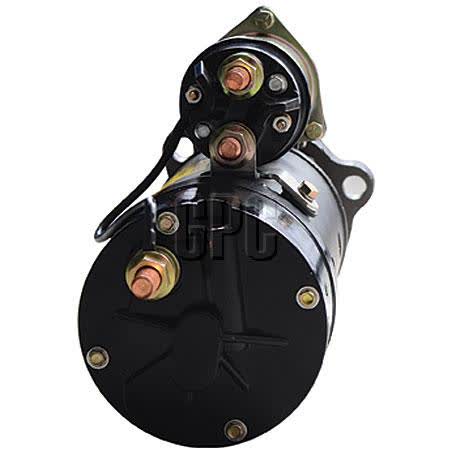

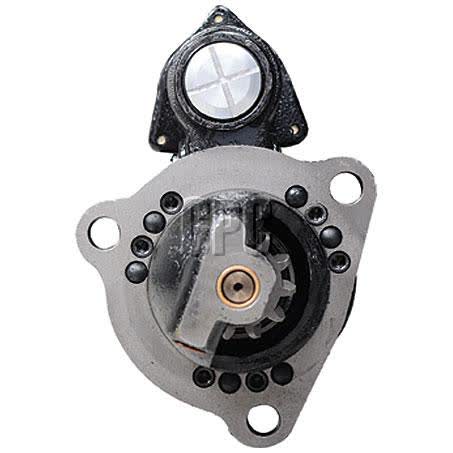

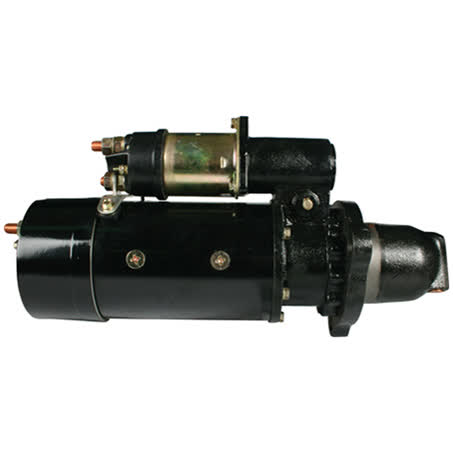

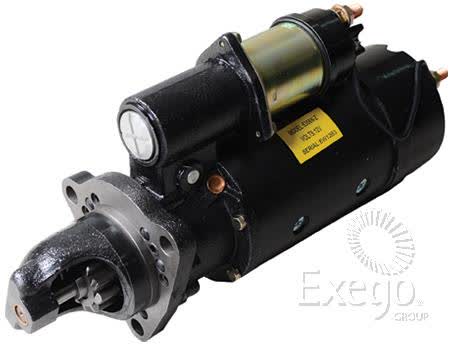

OEX Starter Motor 12V 11T CW Delco 42MT Style DXS9147

The OEX Starter Motor DXS9147 is a new 12V starter motor in 42MT style, set up for Delco applications with clockwise rotation. It carries 11 teeth, a 7.0kW power rating, and a 3 hole starter mount, so the main identification points are clear before you compare it against the vehicle or machine being serviced.

Key physical dimensions include 126mm mount centres A, B and C, a 92mm flange diameter, 16mm mount hole diameter, and an overall length of 490mm. The pinion diameter is 56mm and the pinion at rest measures 48mm, which are useful checks when matching the starter to the original unit.

This unit is supplied as new and weighs 26.74kg, so it is a substantial rotating electrical component rather than a small light-duty starter. The listed unit make is Delco, and the series is 42MT, which are the two most important reference points alongside the part number DXS9147 when confirming suitability.

Key Features

• 12V starter motor
• 42MT series, Delco unit make
• Clockwise rotation
• 11-tooth pinion
• 3 hole starter mount
• New unit

Specifications

• Power rating: 7.0kW
• Voltage: 12
• Number of teeth: 11
• Rotation: CW
• Series: 42MT
• Starter mount type: 3 hole
• Mount centres A/B/C: 126mm
• Flange diameter: 92mm

Fitment guidance

• Suitable applications are listed across Delco 42MT style uses in a broad range of heavy vehicle, agricultural, industrial and machinery platforms.
• Makes shown in the supplied fitment data include Atkinson, Atlas Copco, BCI, Case, Caterpillar, Challenger, Clark, Cummins, Detroit Diesel, Ford, Freightliner, International, John Deere, Kawasaki, Kenworth, Mack, Massey Ferguson, New Holland, R.F.W., Sandvik, Sterling Trucks, UD Nissan Diesel, Versatile and Western Star.
• Sample applications listed include Atkinson F4870, Atlas Copco MT5020 and MT5020 2018, BCI Explorer, Case 8425 and 921C, Caterpillar 140M and 16H, Cummins ISC 8.3 and N14, Detroit Diesel 6V92T, Freightliner Argosy, Kenworth T-Series and Western Star 4900.
• Because the fitment list is broad, the original starter should be checked against the Delco 42MT style, 12V rating, 11 teeth, clockwise rotation, 3 hole mount and the recorded dimensions before ordering.

Application and Buying Notes

When comparing this starter to the one already fitted, the most useful checks are the part number DXS9147, the Delco 42MT style, and the physical measurements of 126mm mount centres with a 92mm flange diameter. Those details help confirm the housing and bolt pattern are in the right range before the unit is fitted.

Voltage and rotation matter just as much as size. This unit is 12V with clockwise rotation, so it should only be considered where those electrical and directional requirements match the existing application. The 11-tooth pinion and 56mm pinion diameter are also important if the original starter uses the same engagement setup.

The 7.0kW power rating indicates a heavy-duty starter arrangement, and the 26.74kg weight reflects that. For larger diesel engines, industrial equipment or road transport applications, it is worth checking the exact mounting style, overall length of 490mm and pinion at rest measurement of 48mm against the removed unit rather than relying on appearance alone.

Although the fitment list covers many makes and models, a starter motor should always be verified against the actual vehicle or machine identification, not just the brand. Matching the listed specification set to the existing starter is the safest way to avoid downtime and unnecessary returns.

Warranty coverage is listed as 3 years for passenger use and 1 year for commercial use. That is useful context, but it does not replace fitment checking. In starter motor work, the correct part number, voltage, rotation, tooth count and mounting dimensions remain the key decision points.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS9147 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 126mm, Mount Centres C 126mm, Number of Teeth 11, Pinion at Rest 48mm, Power Rating 7.0kW, Series 42MT, Voltage 12.

Additional published details for cross-checking include Item Type Starter Motor, Starter Mount Type 3 Hole, Weight 26.74kg, Product Group 1 ROTATING ELECTRICAL, Part No. DXS9147, Brand OEX, Description OEX Starter Motor 12V 11Th CW Delco 42MT Style, Flange Diameter 92mm, Mount Centres B 126mm, Mount Hole Diameter 16.

OEX Starter Motor 12V 11Th CW Delco 42MT Style. Part number DXS9147 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS9147, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Please confirm compatibility by matching part number DXS9147, Delco 42MT style, 12V, clockwise rotation, 11 teeth and the listed mounting dimensions against the existing starter and application details before purchase.

FAQ

What is the part number for this starter motor?

The part number listed is DXS9147.

Is this starter motor new or reconditioned?

This unit is listed as new.

What voltage is the starter motor?

It is a 12V starter motor.

What rotation does it use?

The starter is clockwise rotation, shown as CW.

What are the key mounting measurements?

The listed mount centres A, B and C are all 126mm, the flange diameter is 92mm, and the mount hole diameter is 16mm.

What warranty is listed?

The warranty is listed as 3yr Passenger and 1yr Commercial.
